The PA-28 panel template at the panel's dimensions, 42.2 × 17.2 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

781 panels laid out on this template

Also written PA28 or PA 28.

Piper Aircraft PA-28 instrument panel template

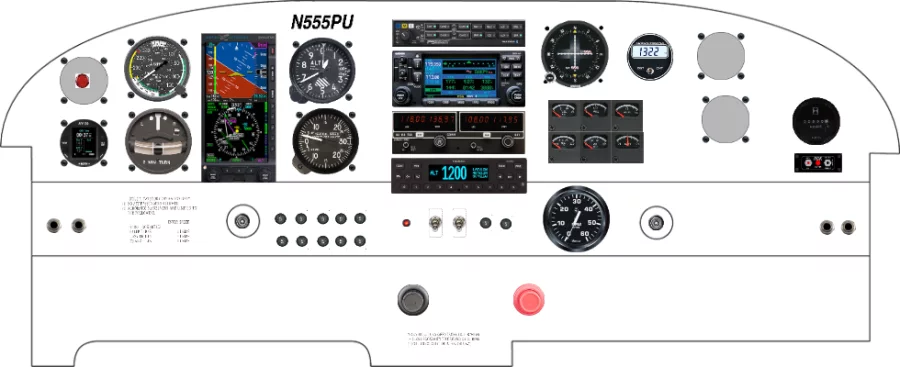

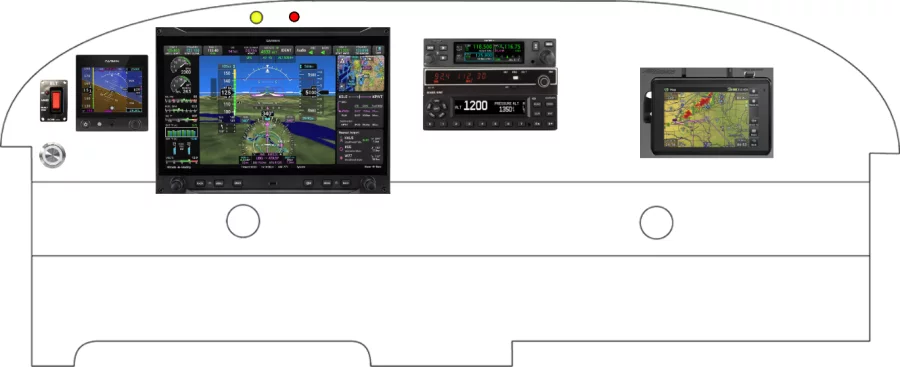

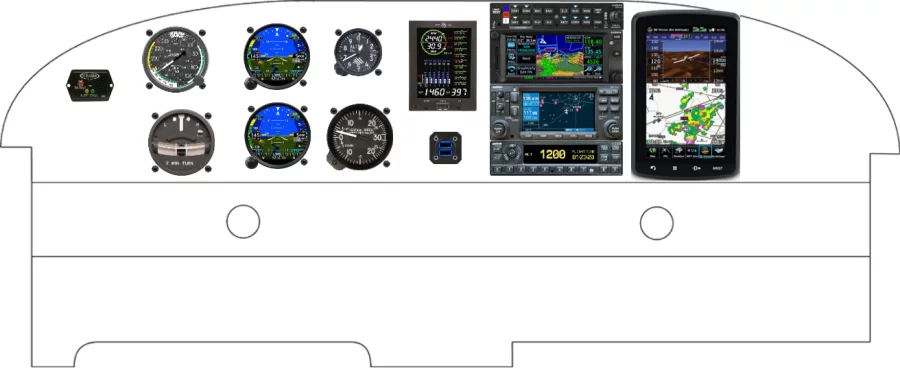

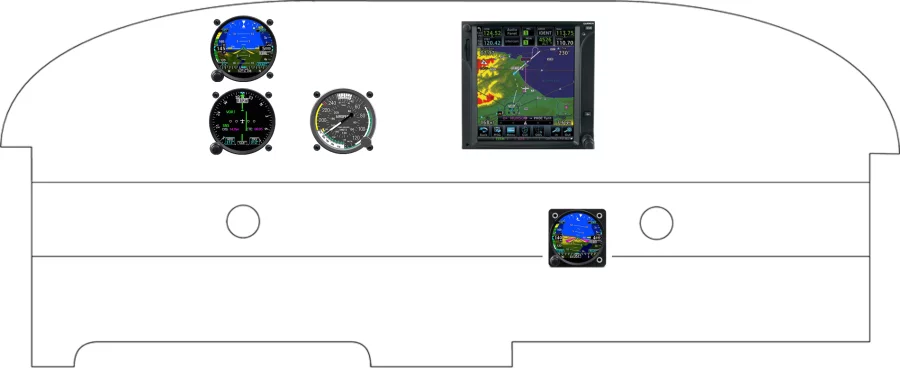

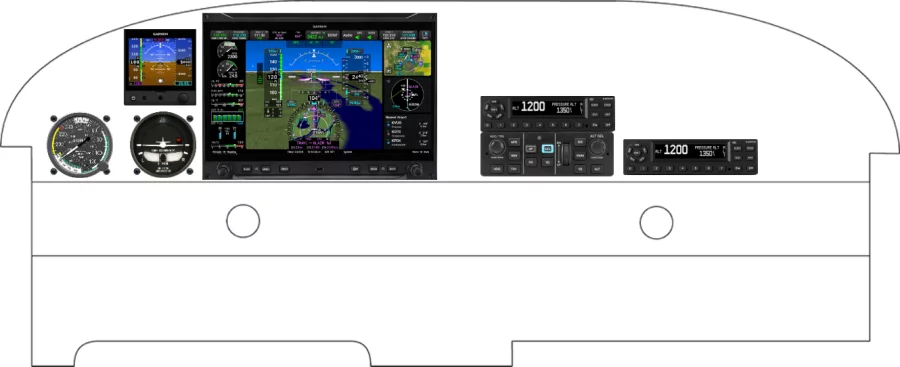

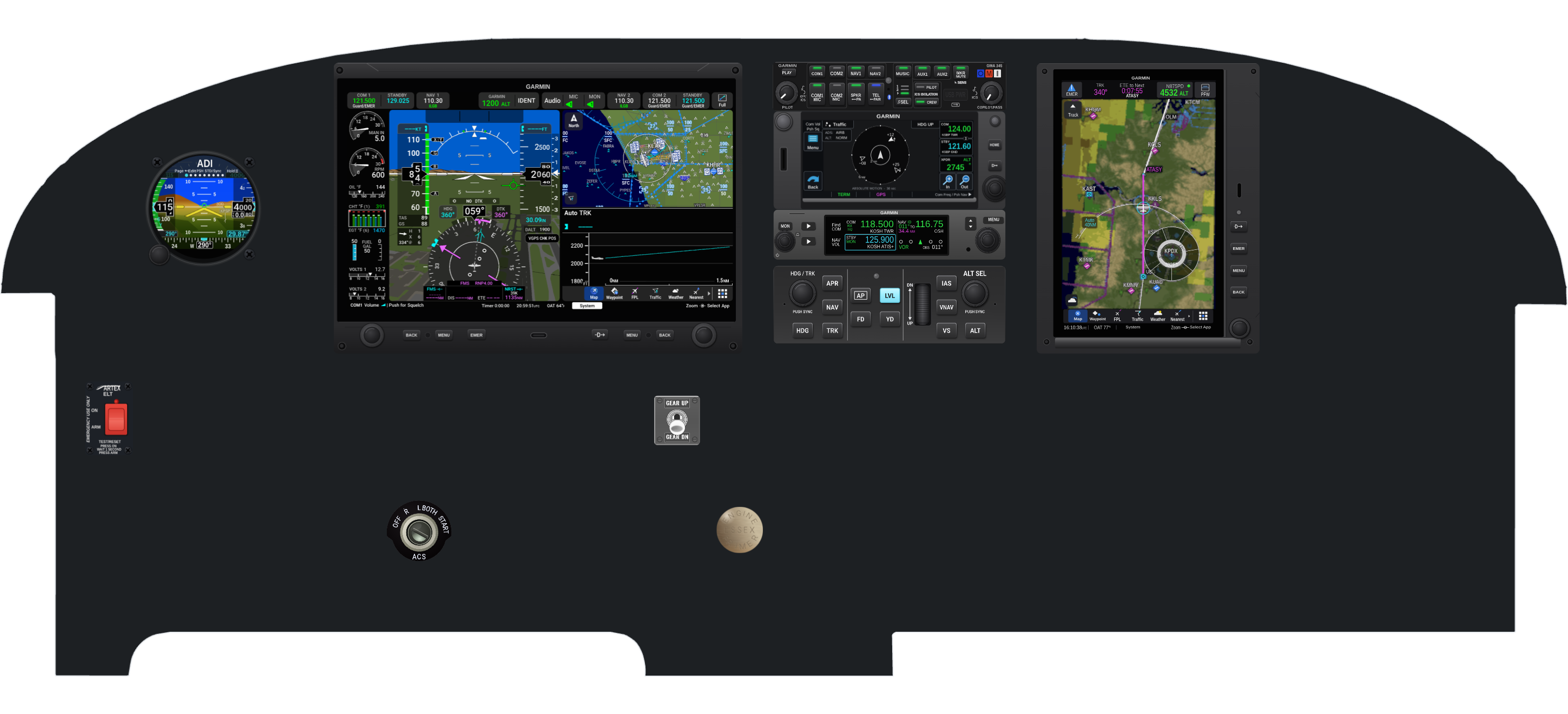

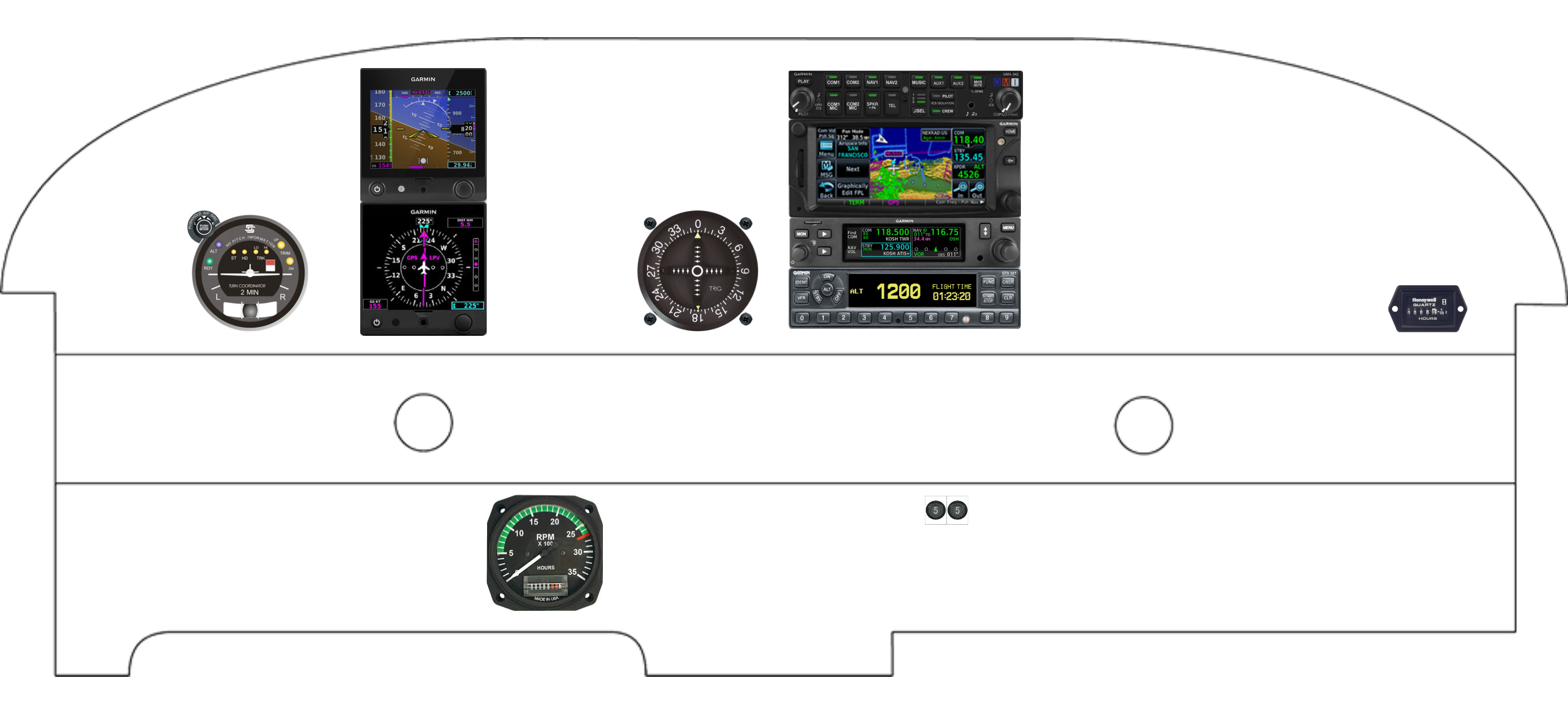

Recent PA-28 panel designs

Exported by builders from the Panel Designer, newest first.
