Piper Aircraft PA-18 instrument panel

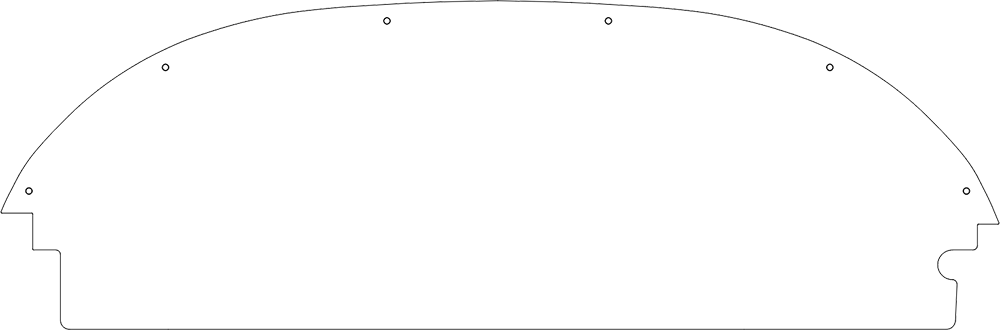

The PA-18 panel template at the panel's dimensions, 27.01 × 8.91 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
216 panels laid out on these 3 templates
Also written PA18 or PA 18.
3 templates for the PA-18
Recent PA-18 panel designs
Exported by builders from the Panel Designer, newest first.
PA-18 for sale
Selling a PA-18? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a PA-18 panel
The equipment placed most often across the 216 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 80 | 37% |
| Falcon Gauge Airspeed Indicator 3" | 70 | 32% |
| Sensa Technologies 7277 | 54 | 25% |
| Falcon Gauge Vertical Speed Indicator | 44 | 20% |
| Garmin International, Inc G5 | 37 | 17% |
| Garmin International, Inc GI 275 EIS | 36 | 17% |
| Electronics International Inc CGR-30P Engine Analyzer | 33 | 15% |
| Airpath Instrument Company Panel Mount Compass | 33 | 15% |
PA-18 panels by avionics system
Builders who laid out a PA-18 panel with each system.
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-18 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
