Piper Aircraft PA32R-300 instrument panel
The PA32R-300 panel template at the panel's dimensions, 52 × 22.22 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
162 panels laid out on this template

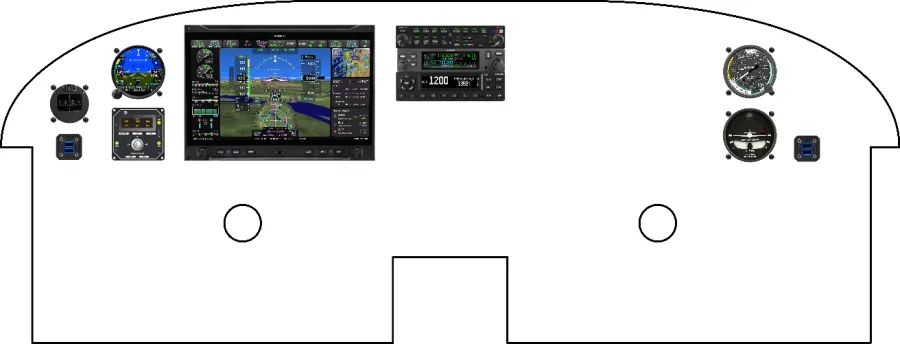

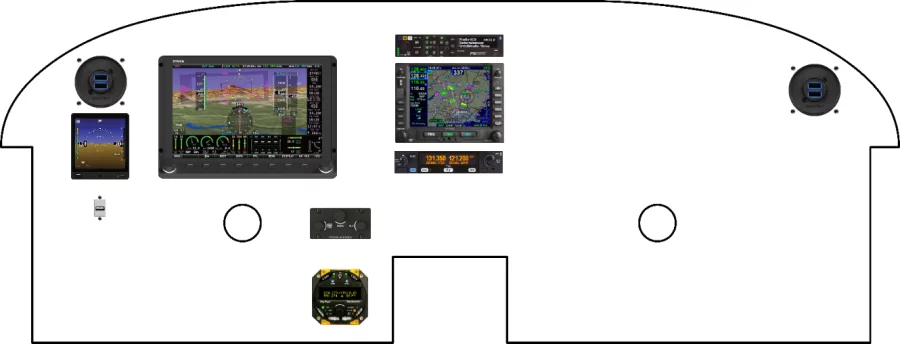

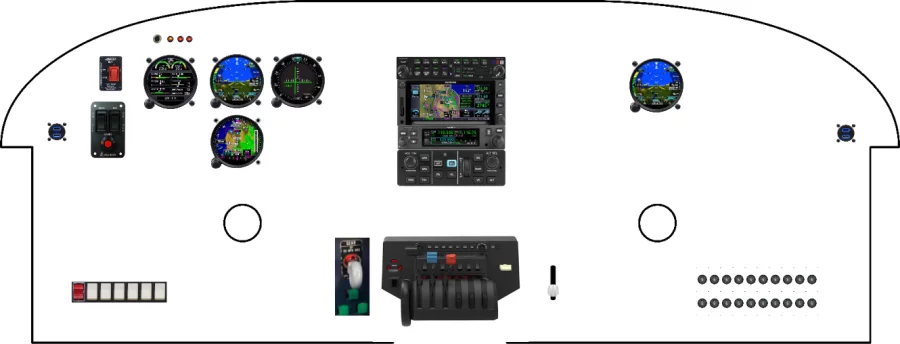

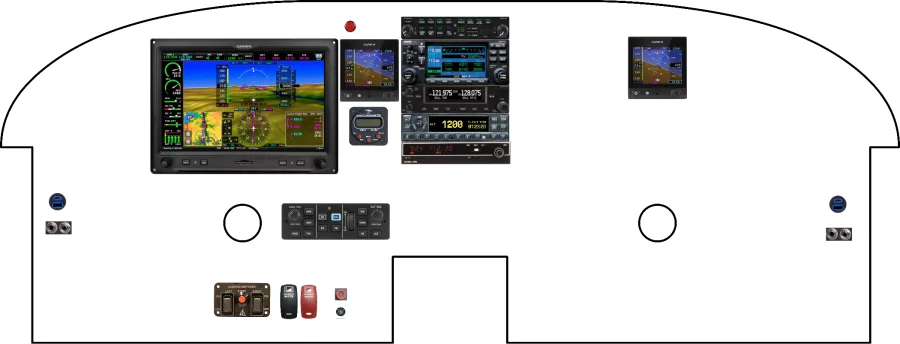

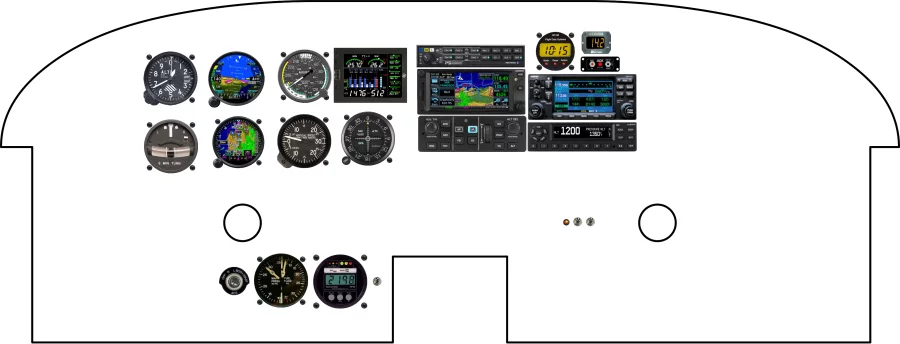

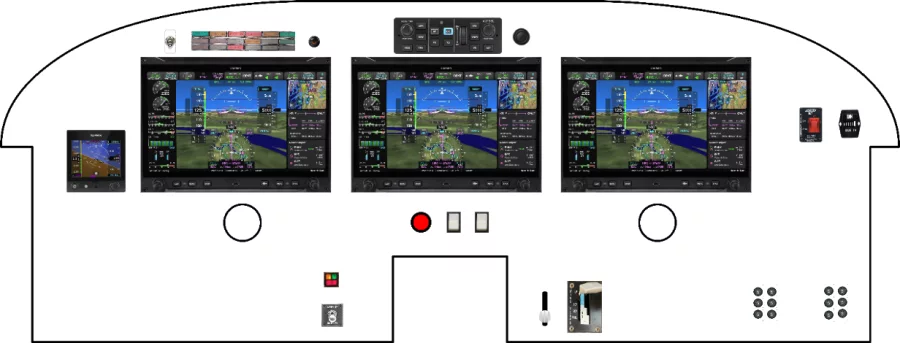

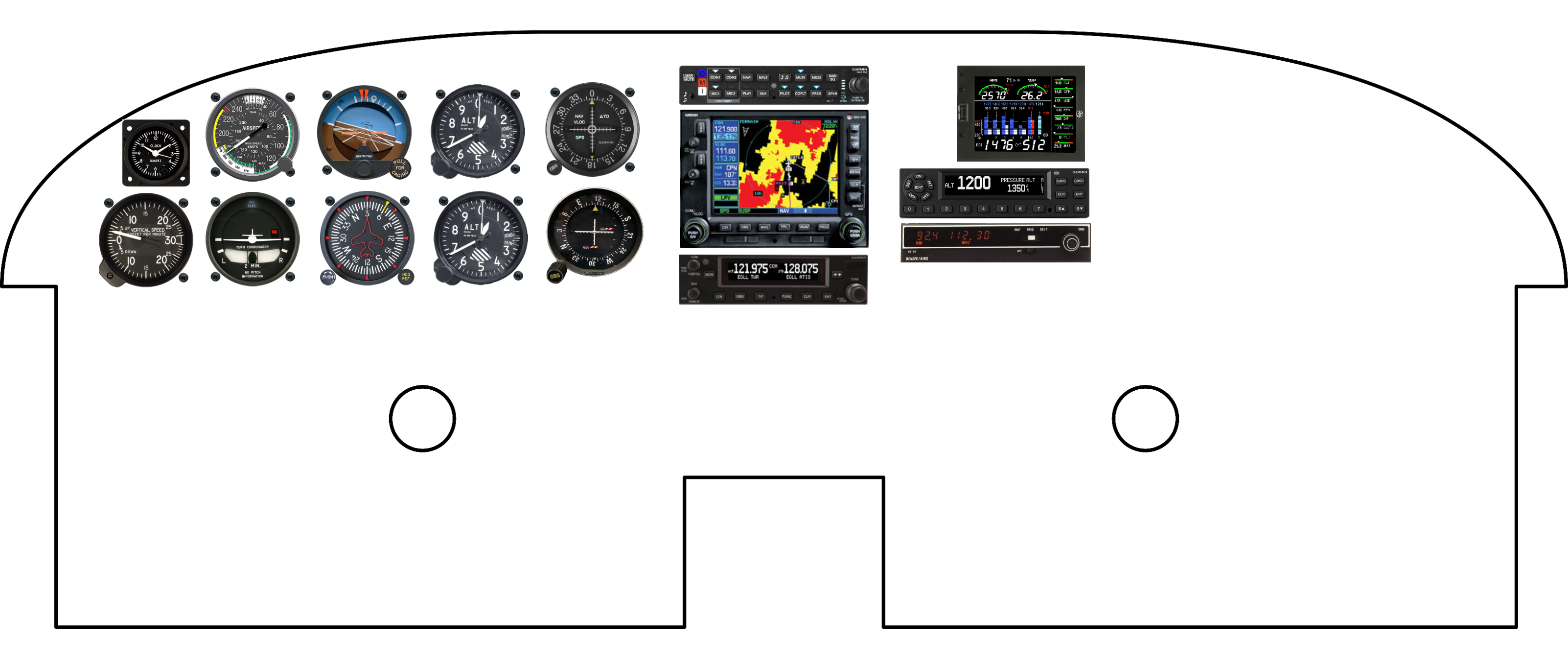

Recent PA32R-300 panel designs
Exported by builders from the Panel Designer, newest first.
PA32R-300 for sale
Selling a PA32R-300? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a PA32R-300 panel
The equipment placed most often across the 162 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 81 | 50% |
| Garmin International, Inc GFC 500 | 79 | 49% |
| Garmin International, Inc G3X Touch | 50 | 31% |
| Falcon Gauge Airspeed Indicator 3" | 43 | 27% |
| Falcon Gauge Altimeter 3" | 38 | 23% |
| Garmin International, Inc GTN 750Xi | 37 | 23% |
| Falcon Gauge Vertical Speed Indicator | 33 | 20% |
| Garmin International, Inc GTX 345 | 31 | 19% |
PA32R-300 panels by avionics system
Builders who laid out a PA32R-300 panel with each system.
