Piper Aircraft PA-28

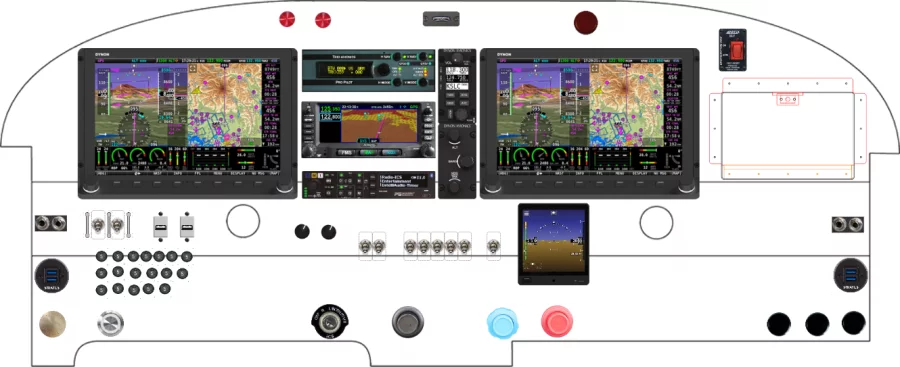

PA-28 panel with Dynon D10
28 builders have laid out a PA-28 panel with the Dynon D10 in the Panel Designer, 7% of the PA-28 builders here. Their newest designs, what they put beside it, and the PA-28 template to start your own, to scale.
43 PA-28 designs with the Dynon D10

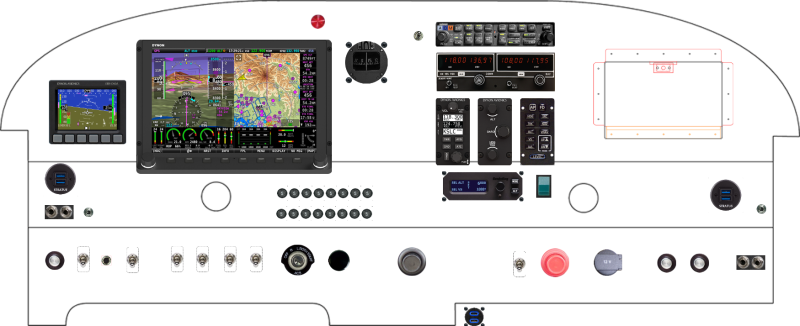

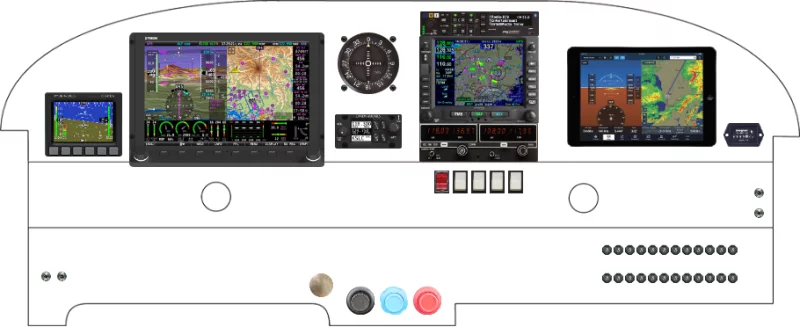

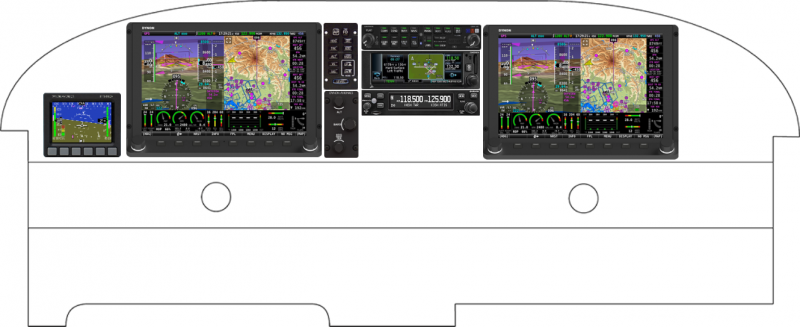

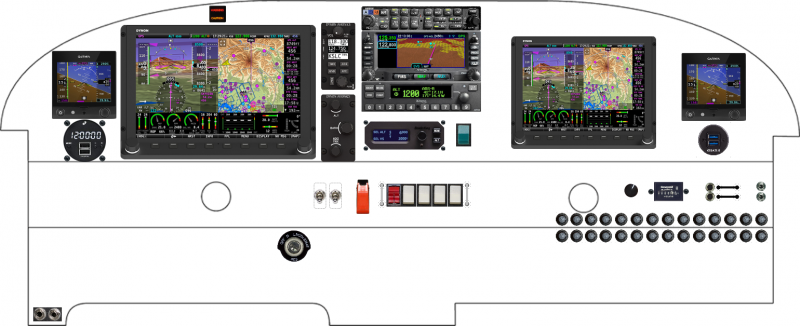

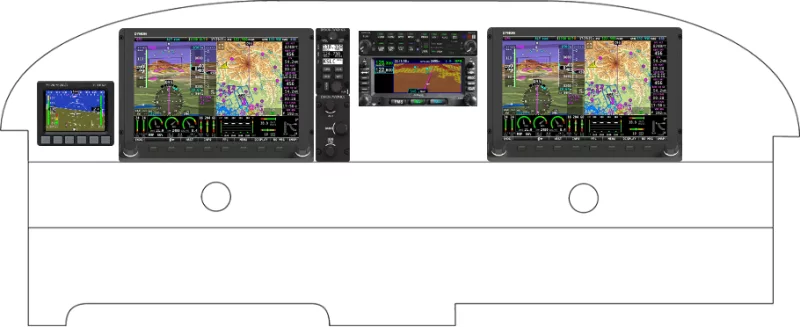

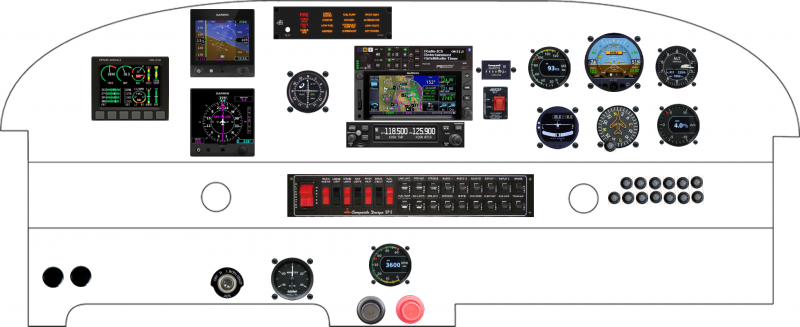

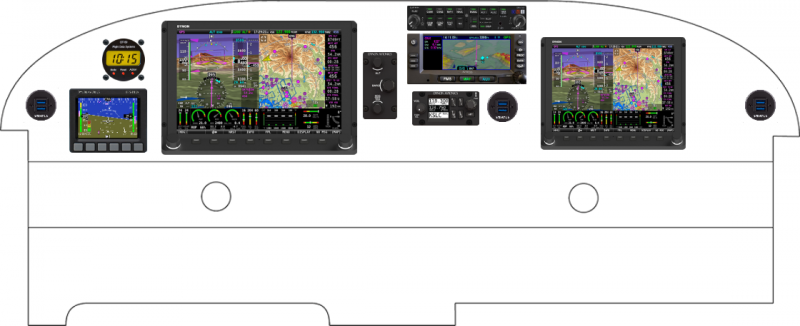

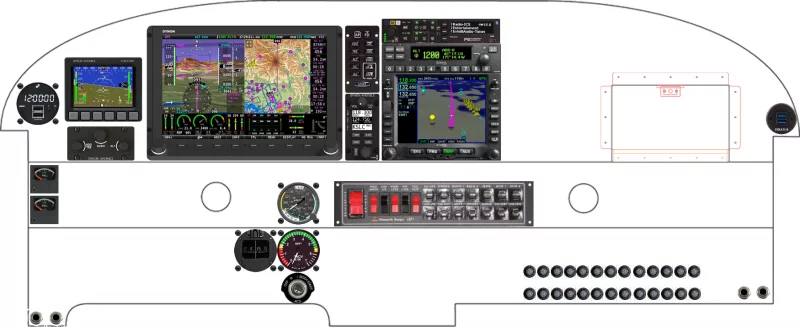

PA-28 panels with the Dynon D10
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon D10
The equipment placed most often in the 43 PA-28 designs with the Dynon D10. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Dynon SkyView HDX 10" | 39 | 91% |
| Dynon Avionics Knob Control | 33 | 77% |
| Dynon Avionics VHF COM | 28 | 65% |
| APPAREO Stratus Power USB Charger | 22 | 51% |
| Sensa Technologies 7277 | 21 | 49% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 17 | 40% |
| Dynon Avionics Autopilot Panel | 16 | 37% |
| Honeywell Sensing Rocker Switch | 15 | 35% |
| PS Engineering PMA450B | 14 | 33% |
| Dynon Avionics Dynon SkyView HDX 7" | 11 | 26% |
Other avionics in the PA-28
The Dynon D10 in other aircraft
From layout to fabricated panel
Lay out the PA-28 panel with the Dynon D10 in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
