Van's Aircraft RV-8
RV-8 panel with Dynon D10
32 builders have laid out an RV-8 panel with the Dynon D10 in the Panel Designer, 7% of the RV-8 builders here. Their newest designs, what they put beside it, and the RV-8 template to start your own, to scale.
52 RV-8 designs with the Dynon D10

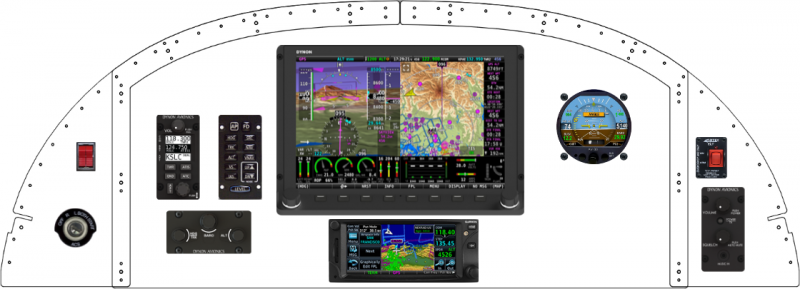

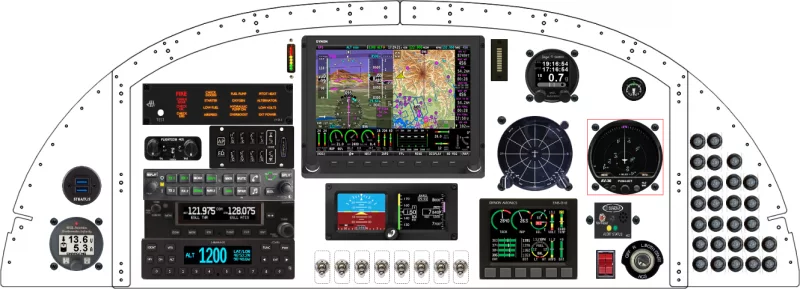

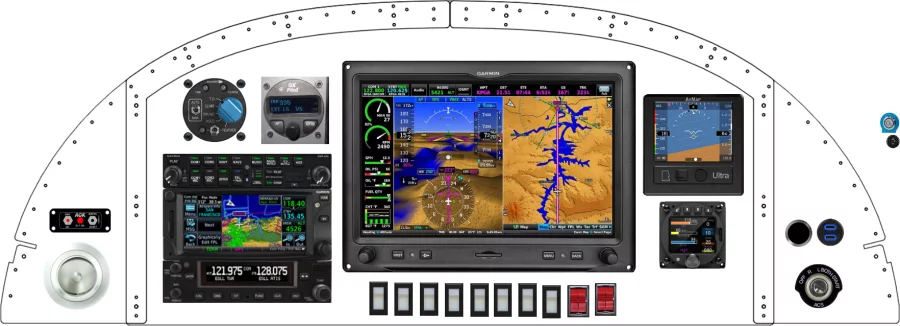

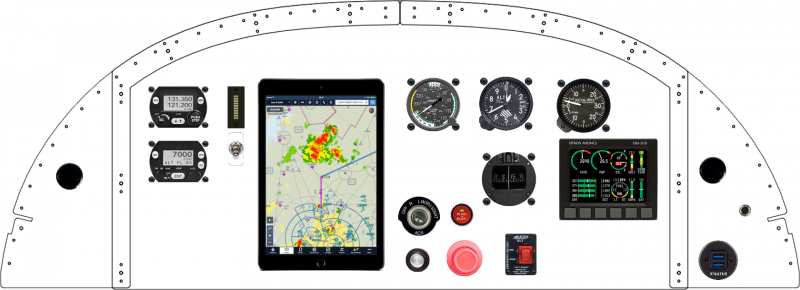

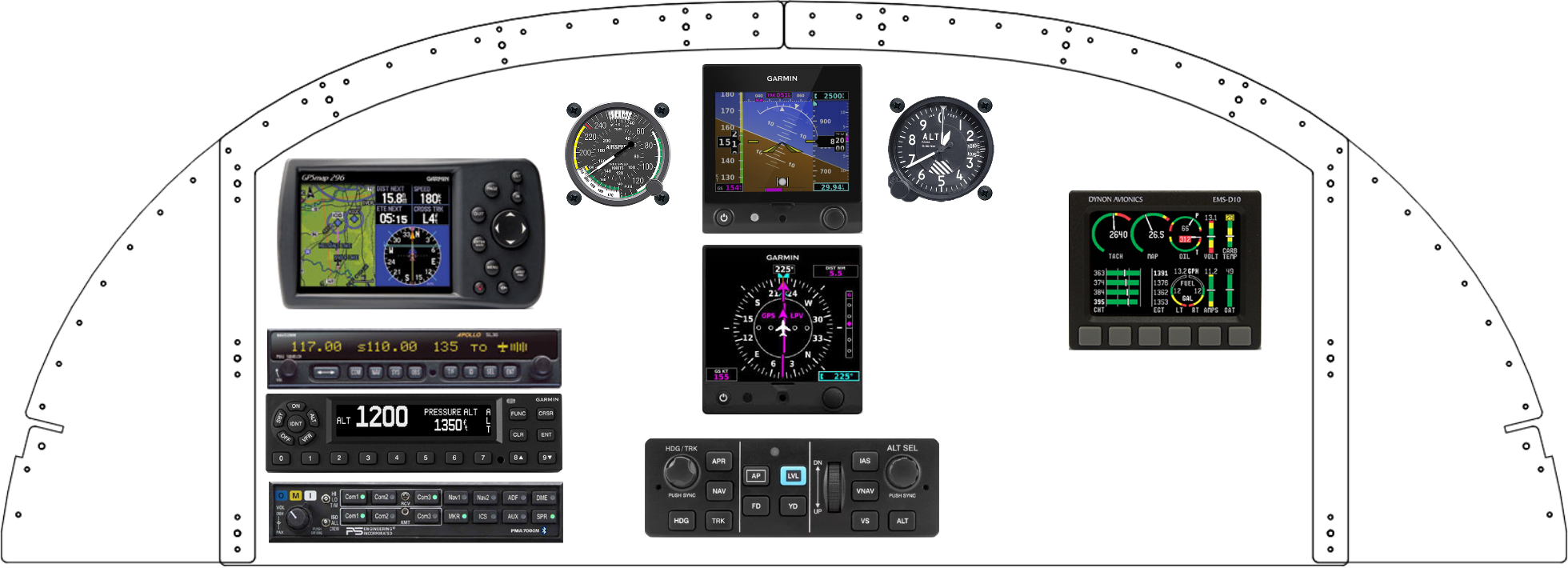

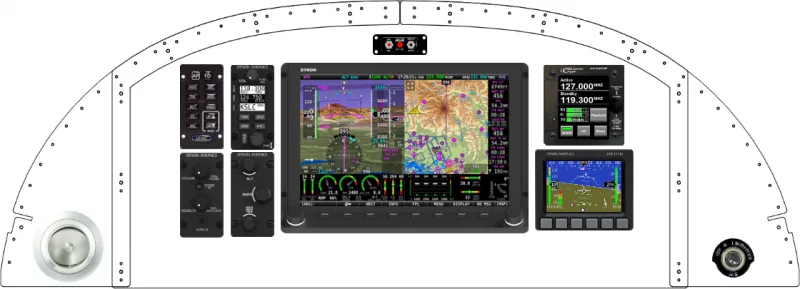

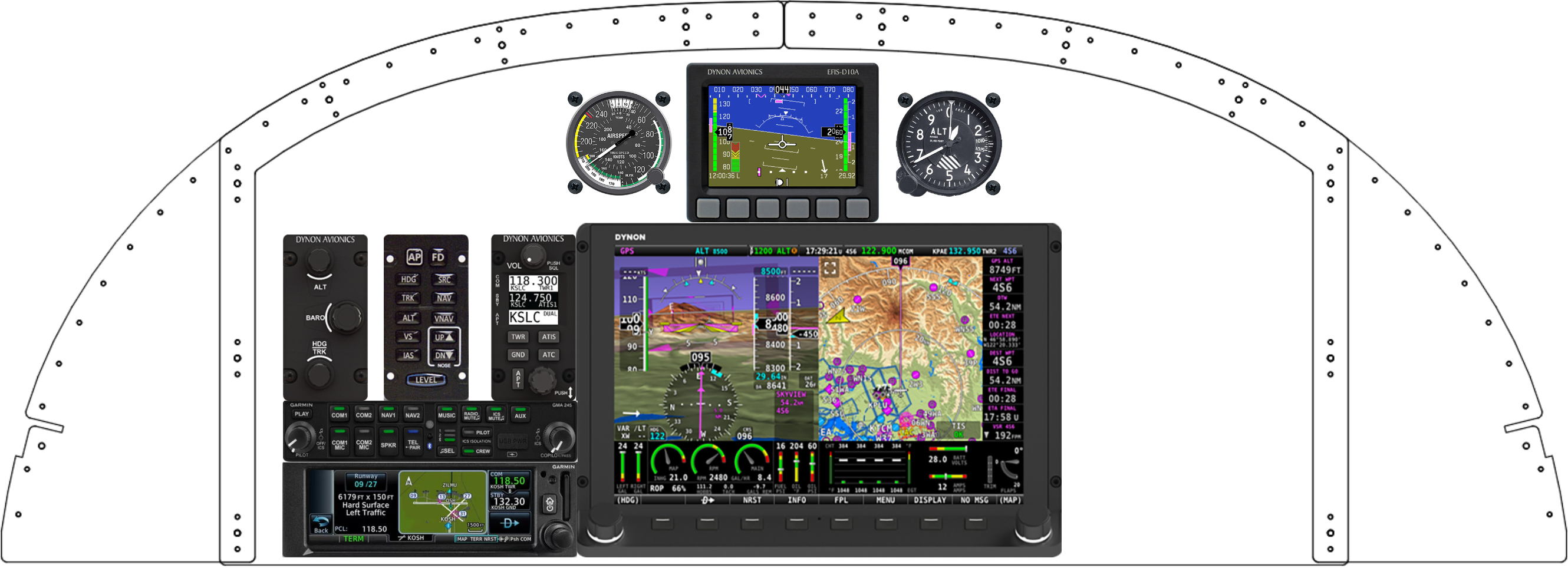

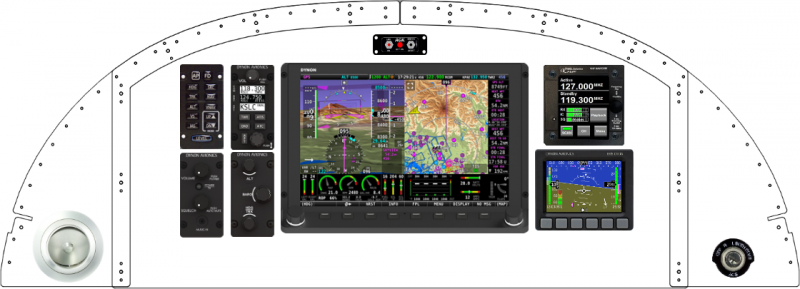

RV-8 panels with the Dynon D10
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon D10
The equipment placed most often in the 52 RV-8 designs with the Dynon D10. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 26 | 50% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 23 | 44% |
| ACK Technologies ELT | 20 | 38% |
| Dynon Avionics VHF COM | 20 | 38% |
| SteinAir Air Vent | 19 | 37% |
| Dynon Avionics Knob Control | 19 | 37% |
| Dynon Avionics Dynon SkyView HDX 10" | 17 | 33% |
| Dynon Avionics Stereo Intercom | 16 | 31% |
| The Ray Allen Trim Indicator | 12 | 23% |
| Sensa Technologies 7277 | 12 | 23% |
Other avionics in the RV-8
The Dynon D10 in other aircraft
From layout to fabricated panel
Lay out the RV-8 panel with the Dynon D10 in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
