Van's Aircraft RV-8
RV-8 panel with Dynon SkyView Classic and Touch
24 builders have laid out an RV-8 panel with the Dynon SkyView Classic and Touch in the Panel Designer, 5% of the RV-8 builders here. Their newest designs, what they put beside it, and the RV-8 template to start your own, to scale.
37 RV-8 designs with the Dynon SkyView Classic and Touch

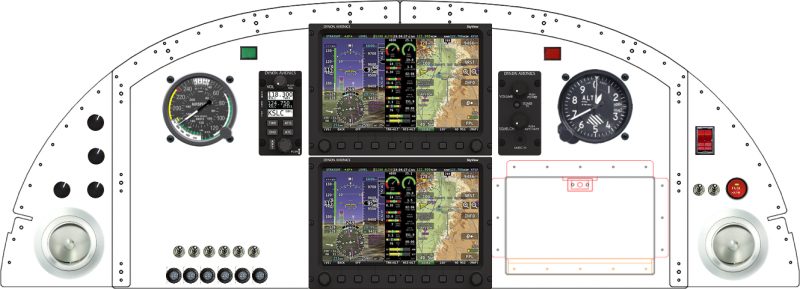

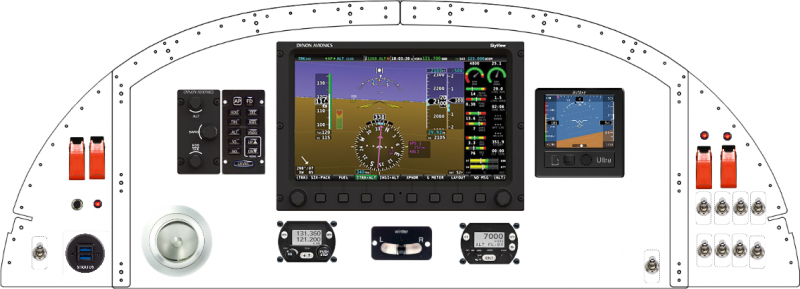

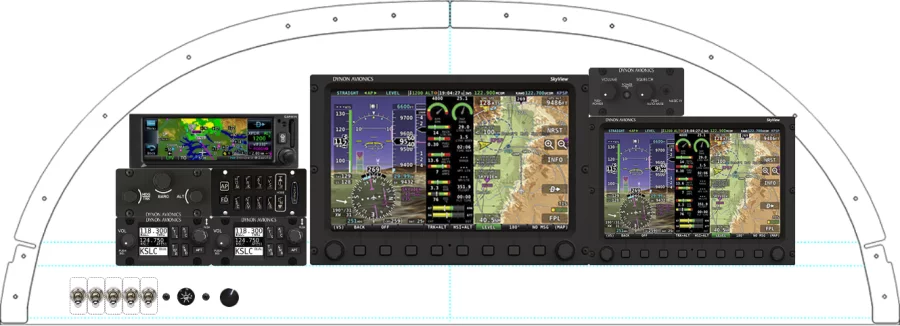

RV-8 panels with the Dynon SkyView Classic and Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView Classic and Touch
The equipment placed most often in the 37 RV-8 designs with the Dynon SkyView Classic and Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 31 | 84% |
| Dynon Avionics Knob Control | 28 | 76% |
| Dynon Avionics VHF COM | 25 | 68% |
| Dynon Avionics Stereo Intercom | 19 | 51% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 17 | 46% |
| ACK Technologies ELT | 14 | 38% |
| Garmin G5 | 11 | 30% |
| SteinAir Air Vent | 11 | 30% |
| Garmin GPS 175 | 10 | 27% |
| Aircraft Spruce & Specialty Push / Pull Control - Black Knob | 8 | 22% |
Other avionics in the RV-8
The Dynon SkyView Classic and Touch in other aircraft
From layout to fabricated panel
Lay out the RV-8 panel with the Dynon SkyView Classic and Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
