Van's Aircraft RV-6
RV-6 panel with Dynon SkyView Classic and Touch
21 builders have laid out an RV-6 panel with the Dynon SkyView Classic and Touch in the Panel Designer, 7% of the RV-6 builders here. Their newest designs, what they put beside it, and the RV-6 template to start your own, to scale.
27 RV-6 designs with the Dynon SkyView Classic and Touch

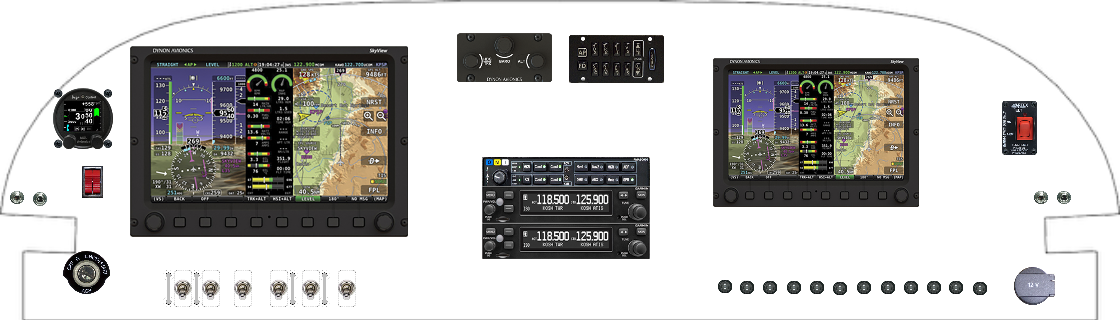

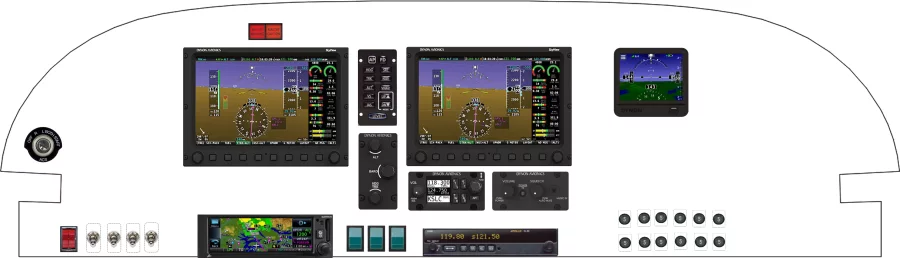

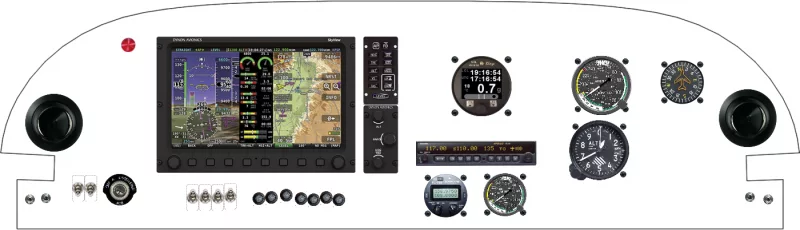

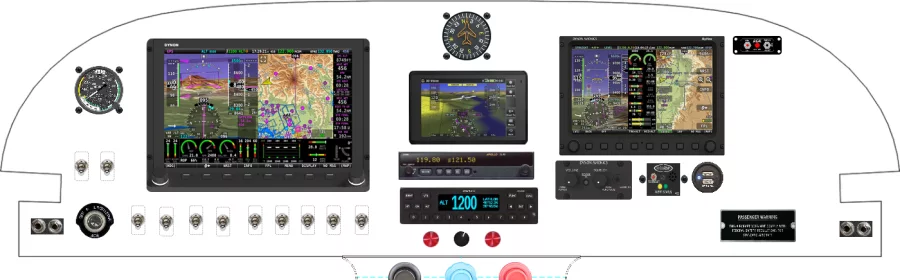

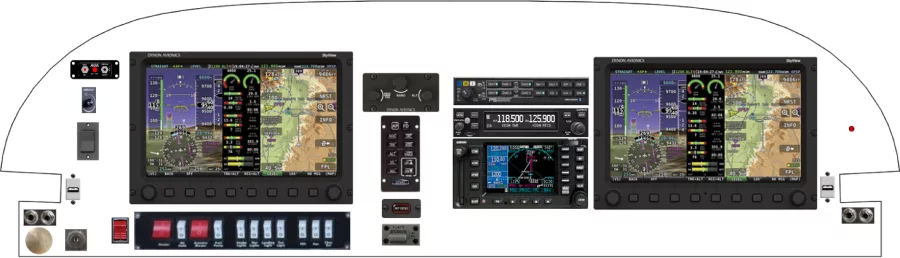

RV-6 panels with the Dynon SkyView Classic and Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView Classic and Touch
The equipment placed most often in the 27 RV-6 designs with the Dynon SkyView Classic and Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 20 | 74% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 18 | 67% |
| Dynon Avionics Knob Control | 17 | 63% |
| Dynon Avionics Stereo Intercom | 11 | 41% |
| Dynon Avionics VHF COM | 10 | 37% |
| Sensa Technologies 7277 | 9 | 33% |
| Falcon Gauge Airspeed Indicator 2" | 8 | 30% |
| Falcon Gauge Altimeter 2" | 6 | 22% |
| Falcon Gauge Airspeed Indicator 3" | 5 | 19% |
| Garmin GMA 340 | 5 | 19% |
Other avionics in the RV-6
The Dynon SkyView Classic and Touch in other aircraft
From layout to fabricated panel
Lay out the RV-6 panel with the Dynon SkyView Classic and Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
