RV-8 panel with Dynon SkyView HDX
117 builders have laid out an RV-8 panel with the Dynon SkyView HDX in the Panel Designer, 25% of the RV-8 builders here. Their newest designs, what they put beside it, and the RV-8 template to start your own, to scale.
306 RV-8 designs with the Dynon SkyView HDX

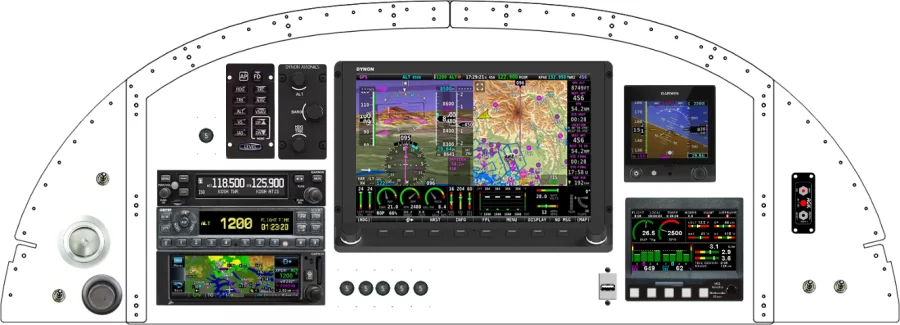

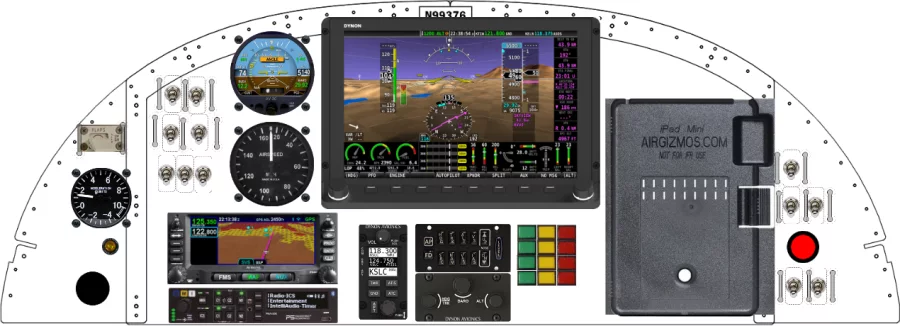

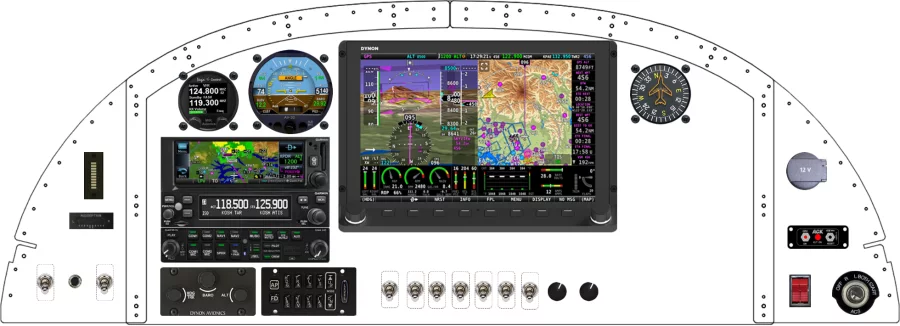

RV-8 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 306 RV-8 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 253 | 83% |
| Dynon Avionics Knob Control | 232 | 76% |
| Dynon Avionics VHF COM | 217 | 71% |
| SteinAir Air Vent | 122 | 40% |
| Dynon Avionics Stereo Intercom | 118 | 39% |
| ACK Technologies ELT | 85 | 28% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 78 | 25% |
| Garmin G5 | 58 | 19% |
| uAvionix AV-30 PFD | 54 | 18% |
| Garmin GPS 175 | 53 | 17% |
Other avionics in the RV-8
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 176
- Van's Aircraft RV-6 65
- Van's Aircraft RV-14 64
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 55
- RANS Aircraft S-20 / S-21 44
- Cessna 182P, Q, R, R182, TR182 43
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the RV-8 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
