Cessna 172
172 panel with Dynon SkyView HDX
28 builders have laid out a 172 panel with the Dynon SkyView HDX in the Panel Designer, 9% of the 172 builders here. Their newest designs, what they put beside it, and the 172 template to start your own, to scale.
40 172 designs with the Dynon SkyView HDX

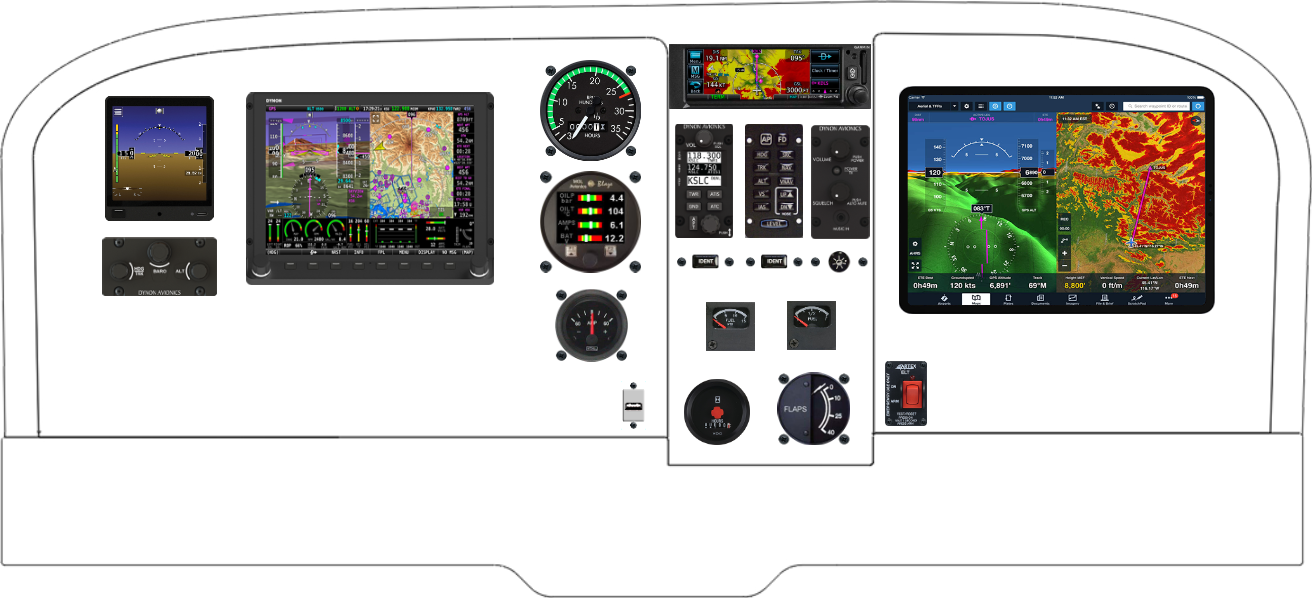

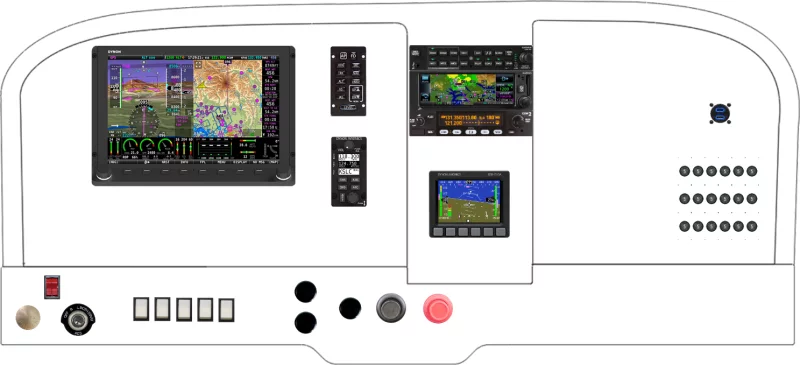

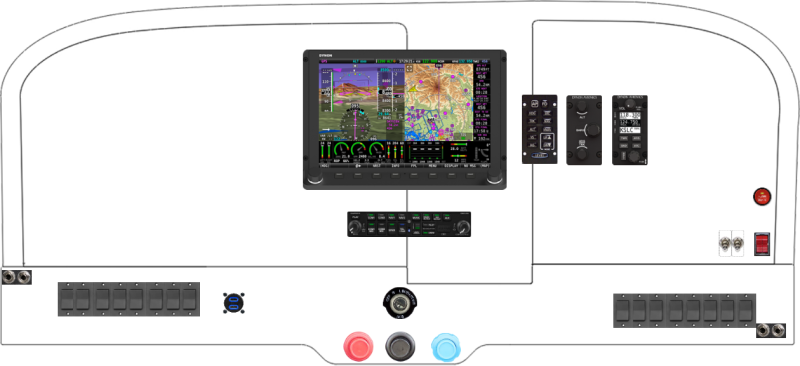

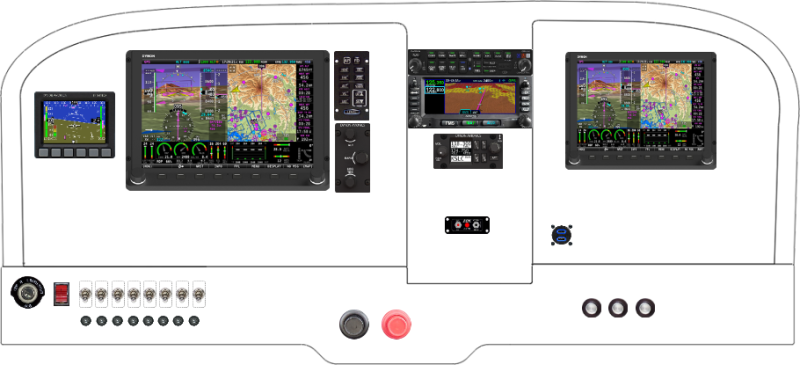

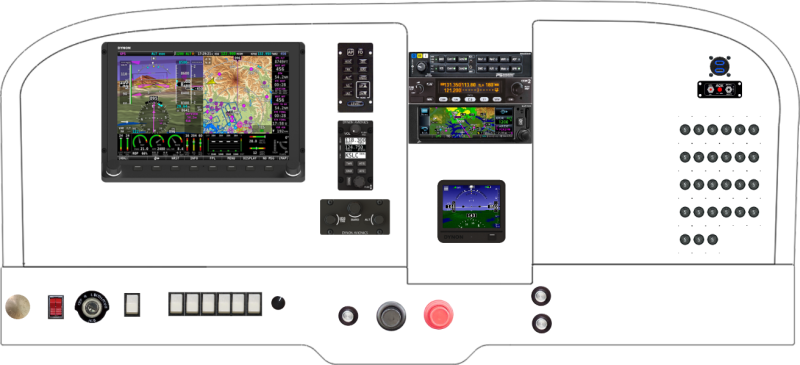

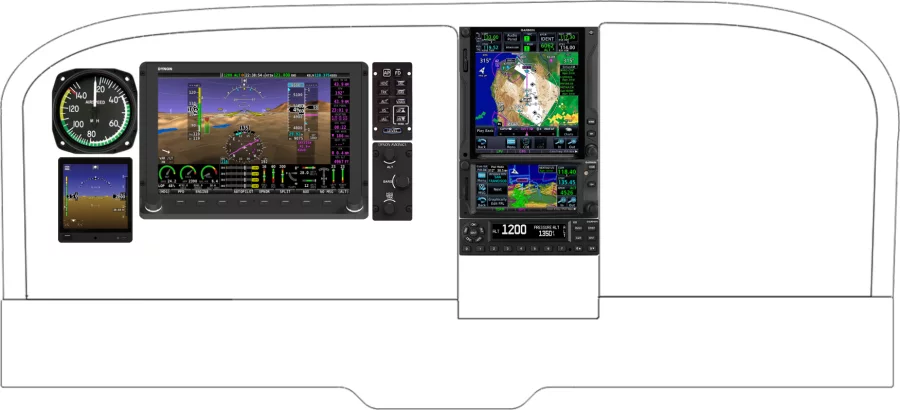

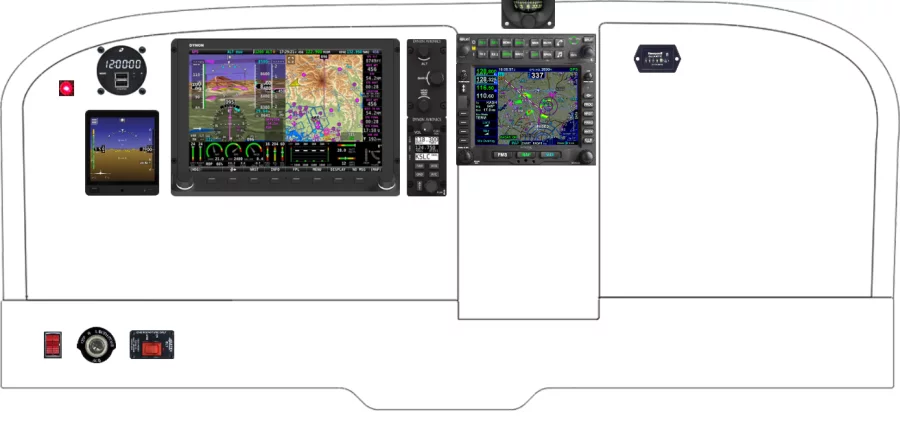

172 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 40 172 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Knob Control | 32 | 80% |
| Dynon Avionics Autopilot Panel | 28 | 70% |
| Dynon Avionics VHF COM | 26 | 65% |
| Dynon Avionics EFIS-D10A | 17 | 43% |
| Dynon Avionics D30 | 16 | 40% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 12 | 30% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 11 | 28% |
| APPAREO Stratus Power USB Charger | 9 | 23% |
| Sensa Technologies 7277 | 8 | 20% |
| Aircraft Spruce & Specialty Push / Pull Control - Black Knob | 8 | 20% |
Other avionics in the 172
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 174
- Van's Aircraft RV-8 116
- Van's Aircraft RV-6 64
- Van's Aircraft RV-14 62
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 52
- RANS Aircraft S-20 / S-21 45
- Cessna 182P, Q, R, R182, TR182 41
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the 172 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
