RANS Aircraft S-20 / S-21
S-20 / S-21 panel with Dynon SkyView HDX
44 builders have laid out an S-20 / S-21 panel with the Dynon SkyView HDX in the Panel Designer, 24% of the S-20 / S-21 builders here. Their newest designs, what they put beside it, and the S-20 / S-21 template to start your own, to scale.
80 S-20 / S-21 designs with the Dynon SkyView HDX

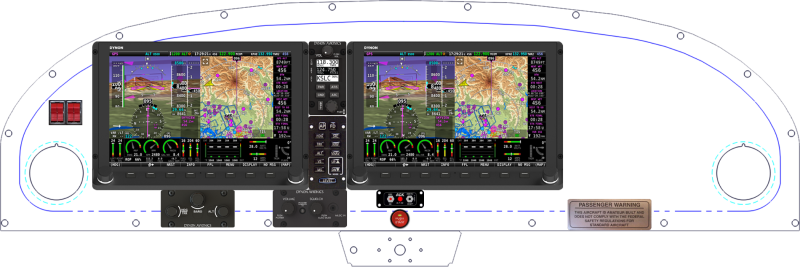

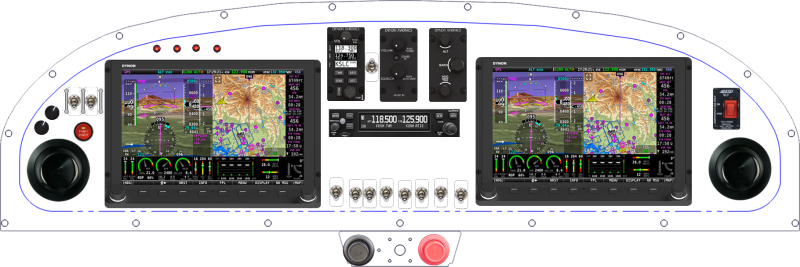

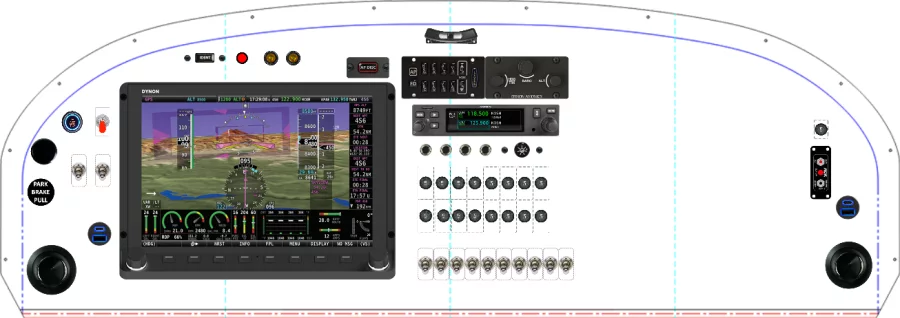

S-20 / S-21 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 80 S-20 / S-21 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics VHF COM | 62 | 78% |
| Dynon Avionics Stereo Intercom | 52 | 65% |
| Dynon Avionics Autopilot Panel | 49 | 61% |
| Dynon Avionics Knob Control | 46 | 58% |
| Aircraft Spruce & Specialty Push / Pull Control - Black Knob | 34 | 43% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 28 | 35% |
| SteinAir Air Vent | 27 | 34% |
| ACK Technologies ELT | 24 | 30% |
| ForeFlight iPad Mini 6 | 24 | 30% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 22 | 28% |
Other avionics in the S-20 / S-21
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 176
- Van's Aircraft RV-8 117
- Van's Aircraft RV-6 65
- Van's Aircraft RV-14 64
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 55
- Cessna 182P, Q, R, R182, TR182 43
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the S-20 / S-21 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
