Zenith Aircraft Company STOL CH 750
STOL CH 750 panel with Dynon SkyView HDX
37 builders have laid out a STOL CH 750 panel with the Dynon SkyView HDX in the Panel Designer, 23% of the STOL CH 750 builders here. Their newest designs, what they put beside it, and the STOL CH 750 template to start your own, to scale.
50 STOL CH 750 designs with the Dynon SkyView HDX

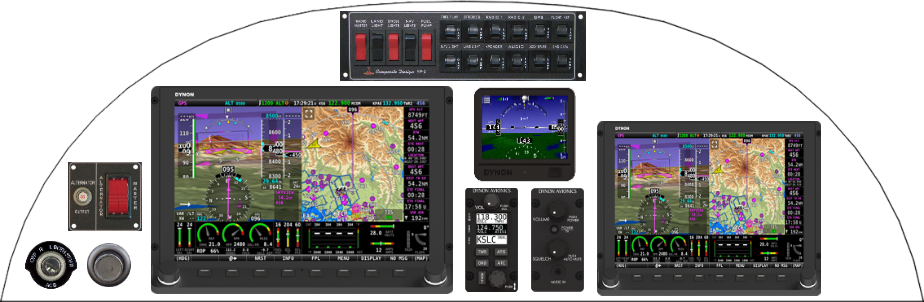

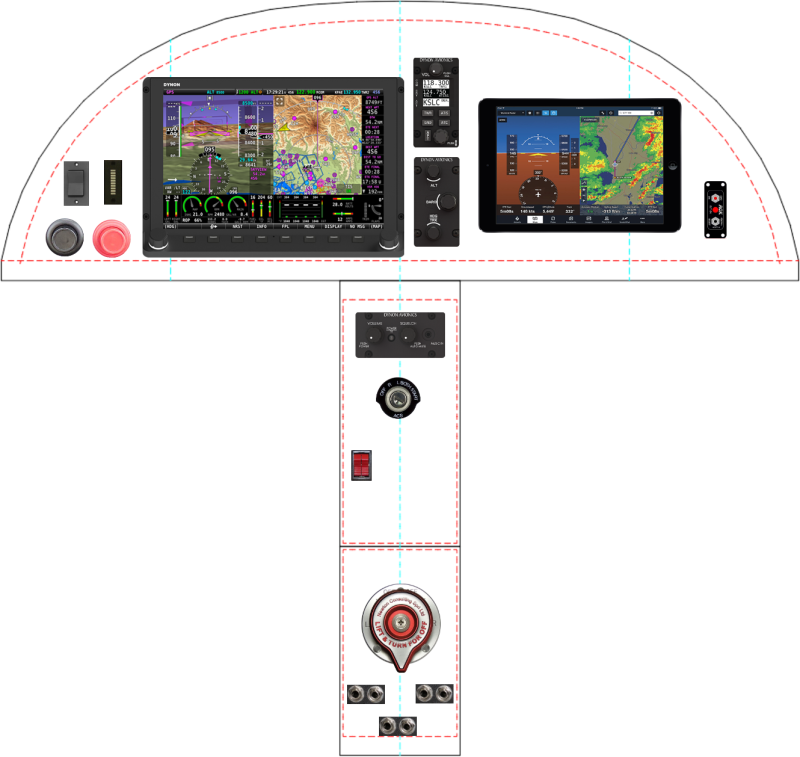

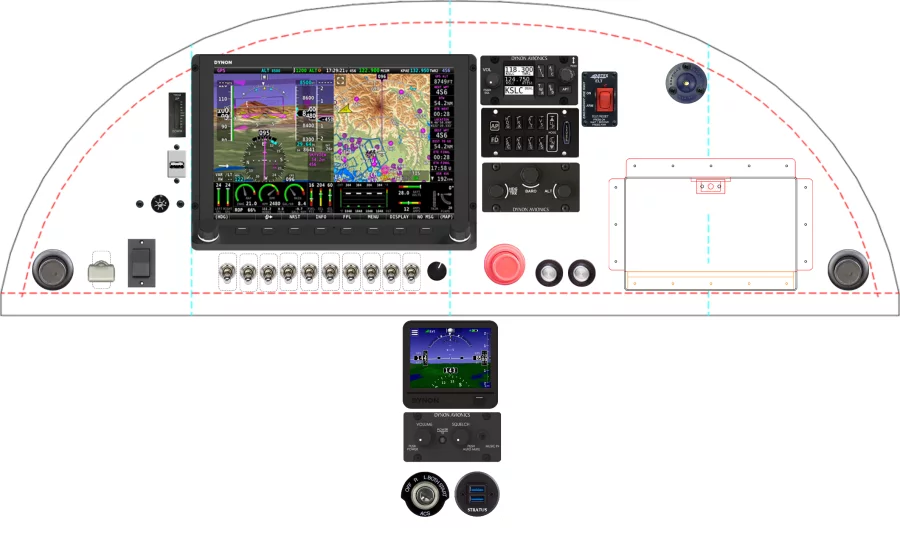

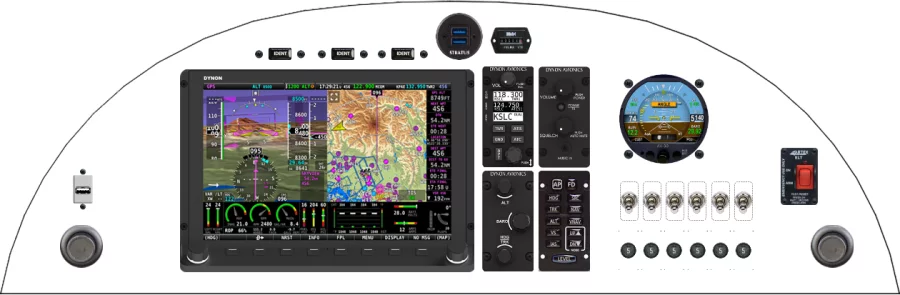

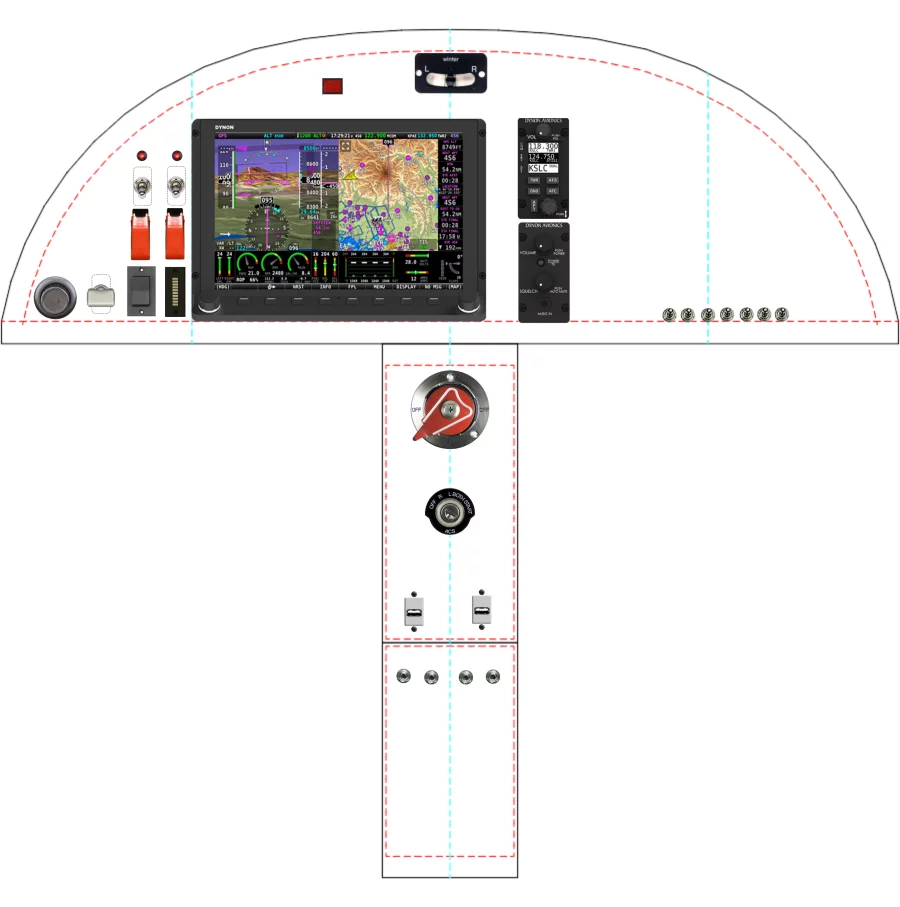

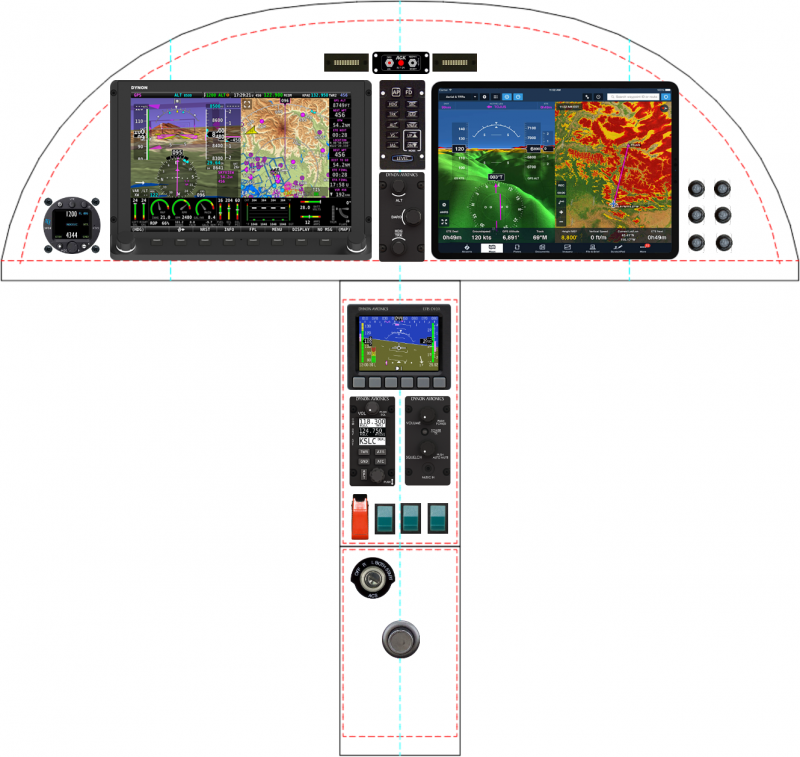

STOL CH 750 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 50 STOL CH 750 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics VHF COM | 43 | 86% |
| Dynon Avionics Stereo Intercom | 33 | 66% |
| Dynon Avionics Knob Control | 29 | 58% |
| Dynon Avionics Autopilot Panel | 29 | 58% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 25 | 50% |
| The Ray Allen RS2 | 16 | 32% |
| ACK Technologies ELT | 14 | 28% |
| Newton Consulting SPRL V1-3P Fuel Valve | 13 | 26% |
| The Ray Allen Trim Indicator | 12 | 24% |
| APPAREO Stratus Power USB Charger | 10 | 20% |
Other avionics in the STOL CH 750
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 174
- Van's Aircraft RV-8 116
- Van's Aircraft RV-6 64
- Van's Aircraft RV-14 62
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 52
- RANS Aircraft S-20 / S-21 45
- Cessna 182P, Q, R, R182, TR182 41
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the STOL CH 750 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
