Panel templates › Zenith Aircraft Company

Zenith Aircraft Company instrument panels

14 templates for 7 aircraft, 920 panels laid out. Each template is at the panel's real dimensions.

Zenith Aircraft Company STOL CH 750 · And SD instrument panel template
STOL CH 750 · And SD144 designs
31.5 × 11.04 in
Zenith Aircraft Company STOL CH 750 · With consoles instrument panel template
STOL CH 750 · With consoles80 designs
31.5 × 29.79 in
Zenith Aircraft Company STOL CH 750 · Modular Instrument Panel instrument panel template
STOL CH 750 · Modular Instrument Panel23 designs
31.52 × 21.66 in
Zenith Aircraft Company STOL CH 750 · Modular Instrument Panel w/Consoles instrument panel template
STOL CH 750 · Modular Instrument Panel w/Consoles21 designs
31.52 × 21.66 in
Zenith Aircraft Company STOL CH 750 · With flanges instrument panel template
STOL CH 750 · With flanges20 designs
32.5 × 11.04 in
Zenith Aircraft Company STOL CH 750 · With markups instrument panel template
STOL CH 750 · With markups2 designs
31.5 × 11.04 in

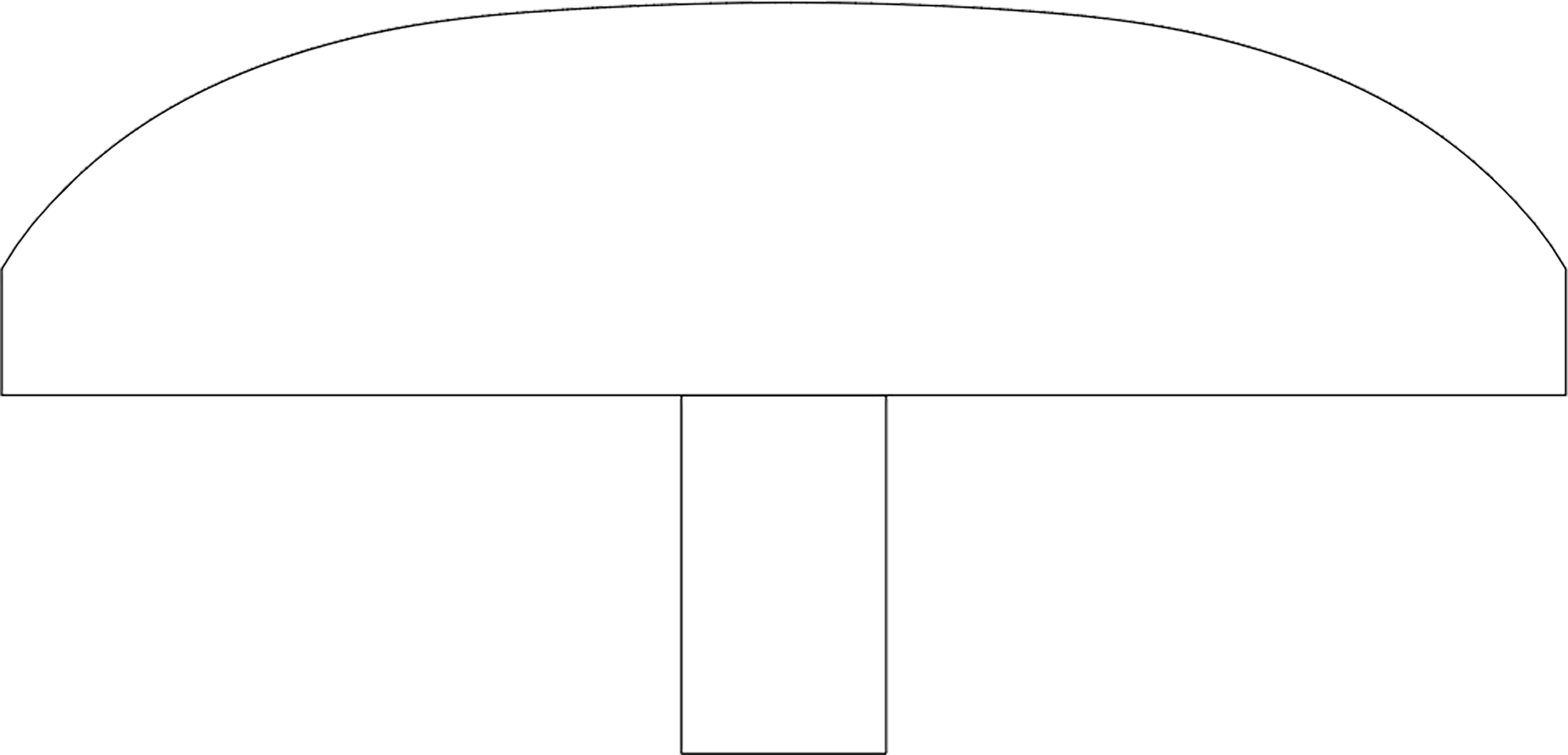

Zenith Aircraft Company CH-601/601XL · Zodiac CH 601/601 XL instrument panel template
CH-601/601XL · Zodiac CH 601/601 XL244 designs
36.06 × 17.33 in
Zenith Aircraft Company CH 750 Cruzer instrument panel template
CH 750 Cruzer111 designs
33 × 11 in
Zenith Aircraft Company CH 750 Cruzer · With consoles instrument panel template
CH 750 Cruzer · With consoles68 designs
38 × 29.8 in
Zenith Aircraft Company STOL CH 701 instrument panel template
STOL CH 70199 designs
33.63 × 8.5 in
Zenith Aircraft Company STOL CH801 Oversize · Taller than Zenith's panel, 8F1-2 instrument panel template
STOL CH801 Oversize · Taller than Zenith's panel, 8F1-256 designs
39.92 × 14.2 in
Zenith Aircraft Company STOL CH801 instrument panel template
STOL CH80126 designs
40.39 × 10.83 in
Zenith Aircraft Company 601 HD/S · Side Tip Canopy instrument panel template
601 HD/S · Side Tip Canopy17 designs
38.78 × 9.13 in
Zenith Aircraft Company 601 HD/S · Fwd Tip Canopy instrument panel template
601 HD/S · Fwd Tip Canopy9 designs
38.78 × 9.13 in
