Zenith Aircraft Company STOL CH801 instrument panel

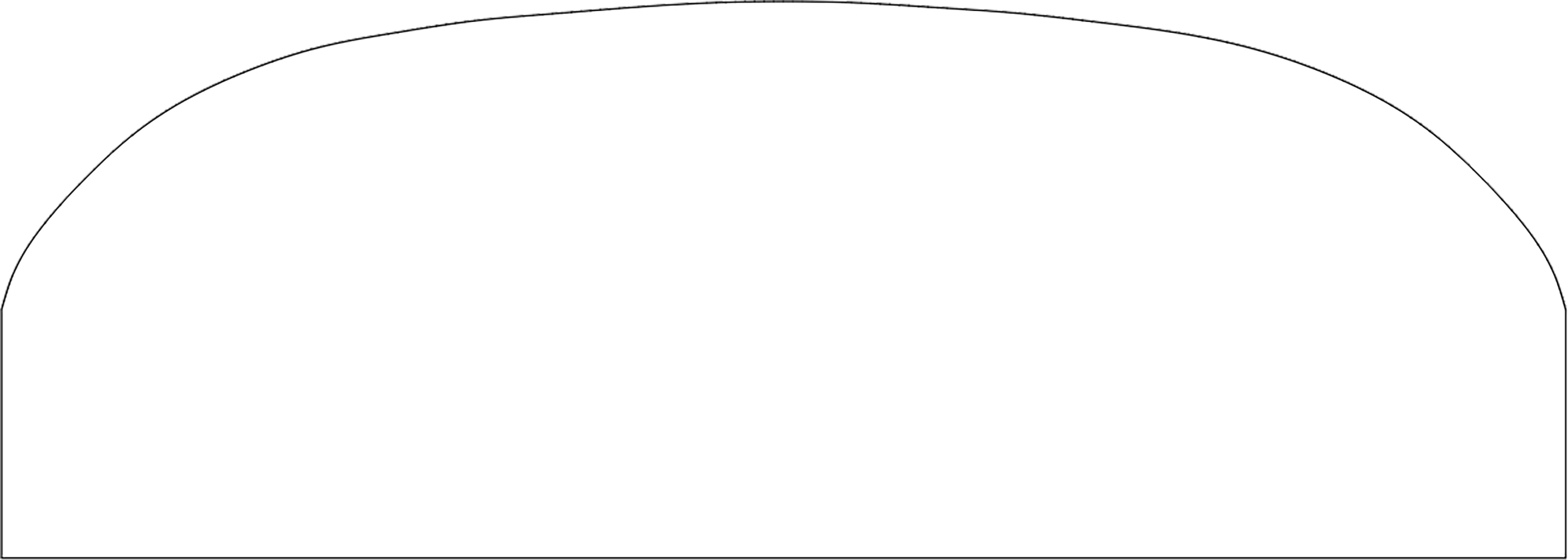

The STOL CH801 panel template at the panel's dimensions, 40.39 × 10.83 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

26 panels laid out on this template

Zenith Aircraft Company STOL CH801 instrument panel template

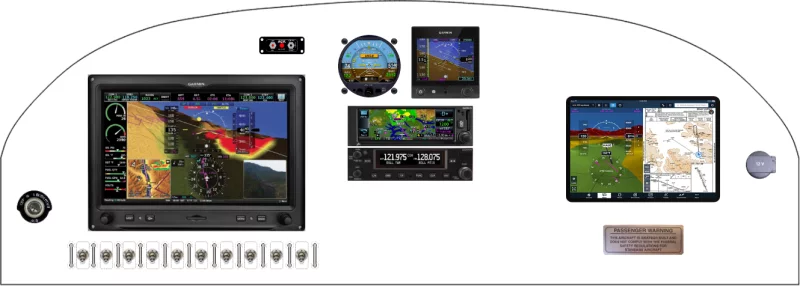

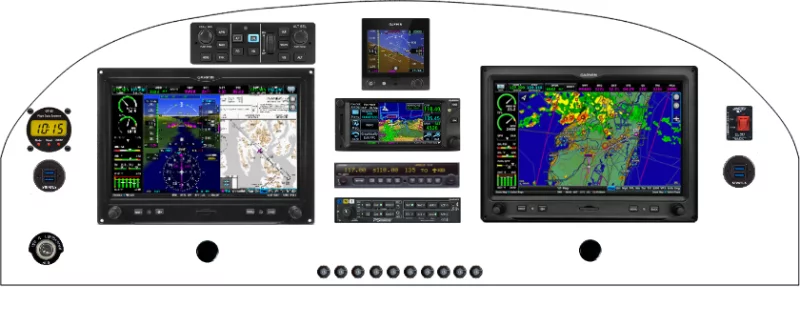

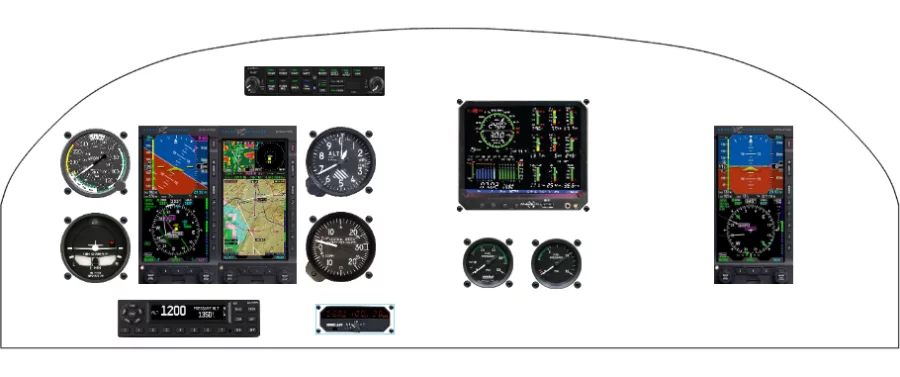

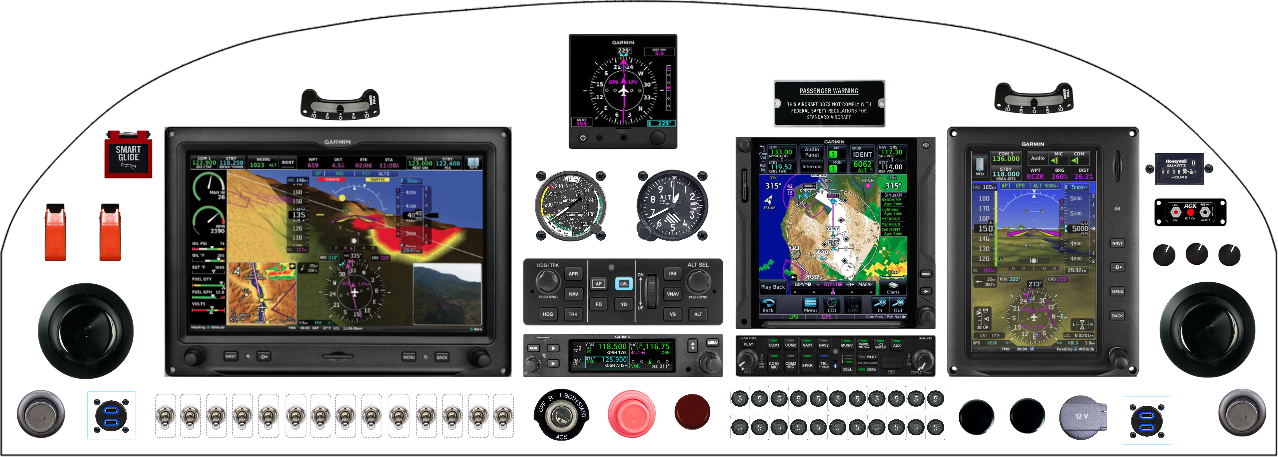

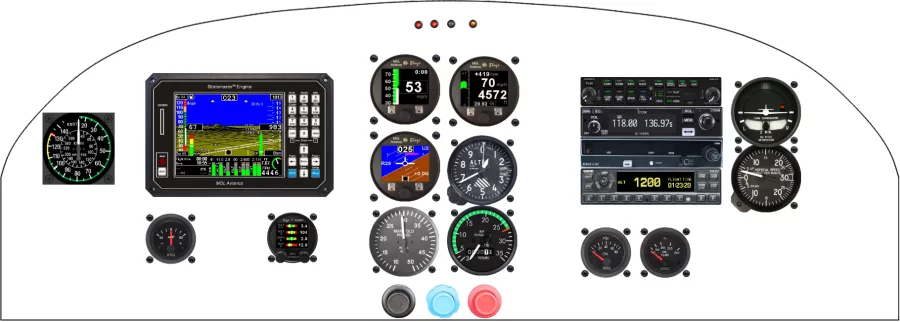

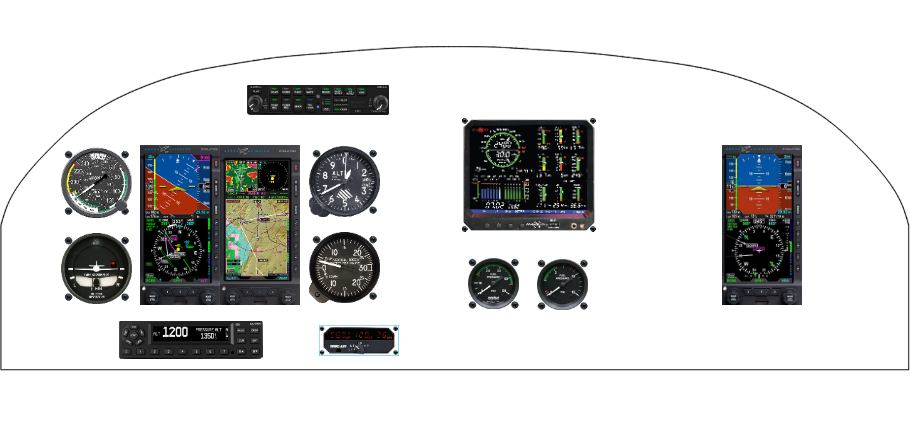

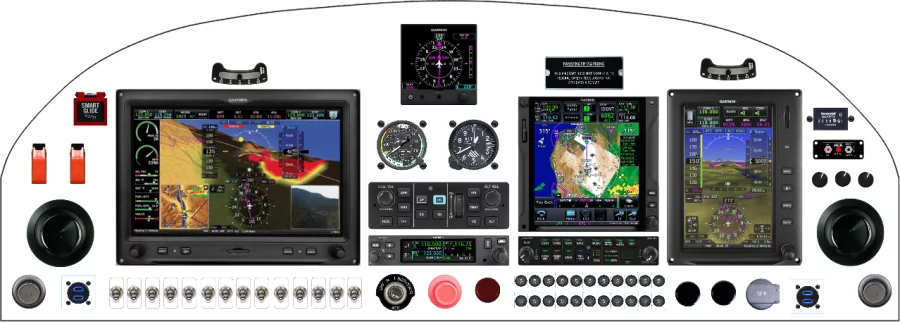

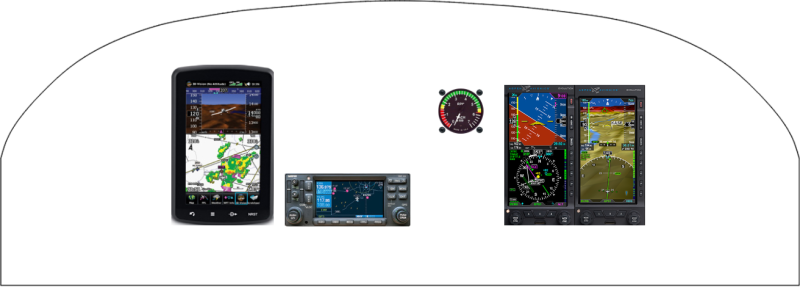

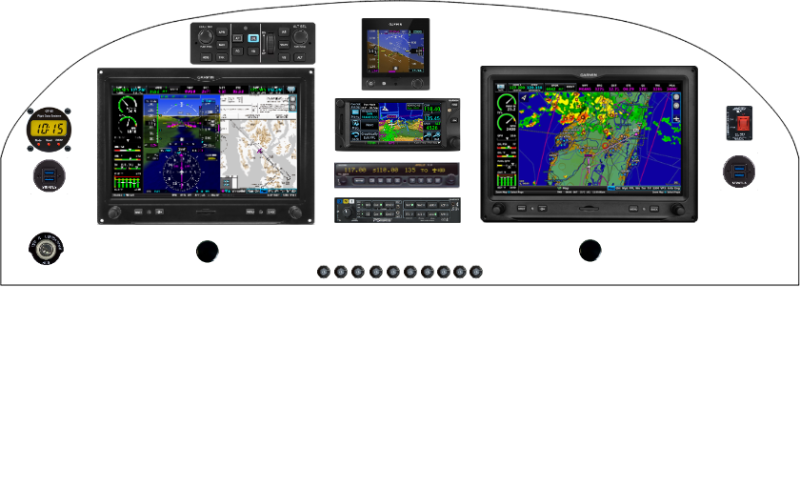

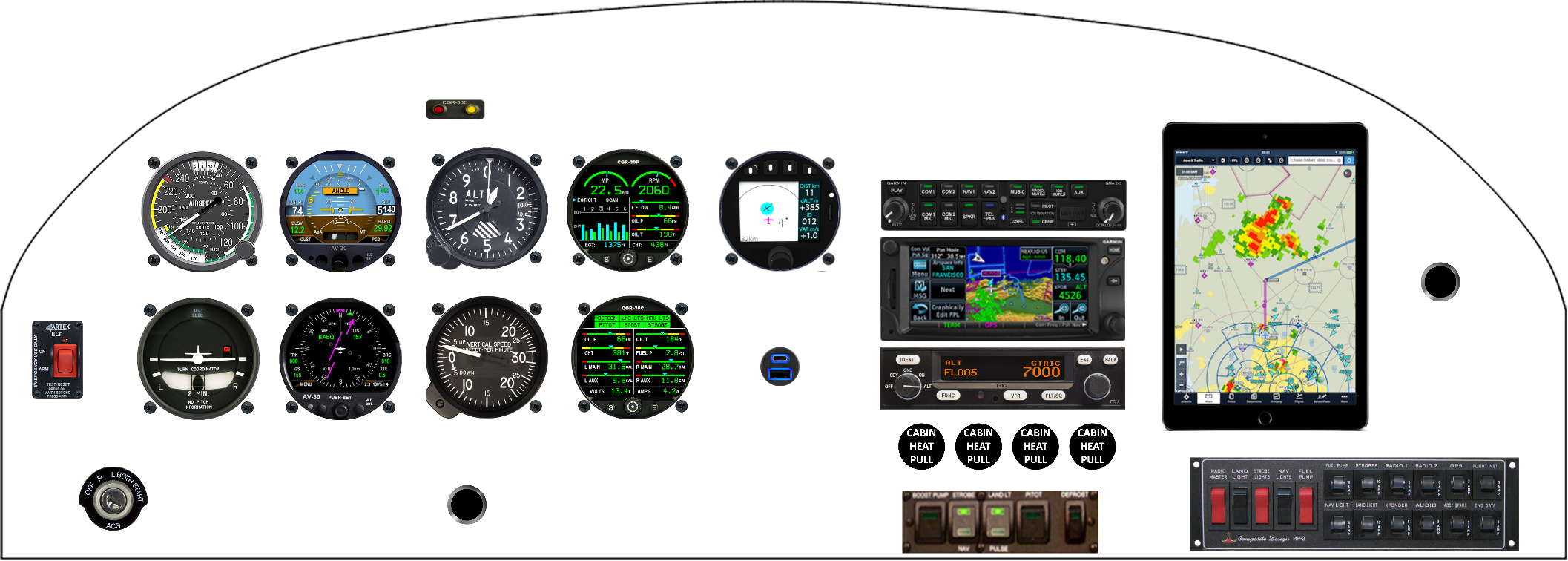

Recent STOL CH801 panel designs

Exported by builders from the Panel Designer, newest first.

All featured designs →

STOL CH801 for sale

All aircraft for sale →

Selling a STOL CH801? List it on the Hangar Flying Marketplace, where builders and owners look.

What builders put in a STOL CH801 panel

The equipment placed most often across the 26 designs on this template. Counts, never names.

EquipmentDesignsShare
Garmin International, Inc GMC 507312%
Garmin International, Inc G3X Touch312%
Garmin International, Inc GTN 65028%
Garmin International, Inc GMA 24528%
Garmin International, Inc G528%
Aspen Avionics, Inc Evolution 1500 MFD14%
Sensa Technologies 727714%
Falcon Gauge Airspeed Indicator 3"14%

Other Zenith Aircraft Company panels

All Zenith Aircraft Company templates →

From layout to fabricated panel

Lay out the STOL CH801 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
