Zenith Aircraft Company CH-601/601XL instrument panel
The CH-601/601XL panel template at the panel's dimensions, 36.06 × 17.33 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
237 panels laid out on this template

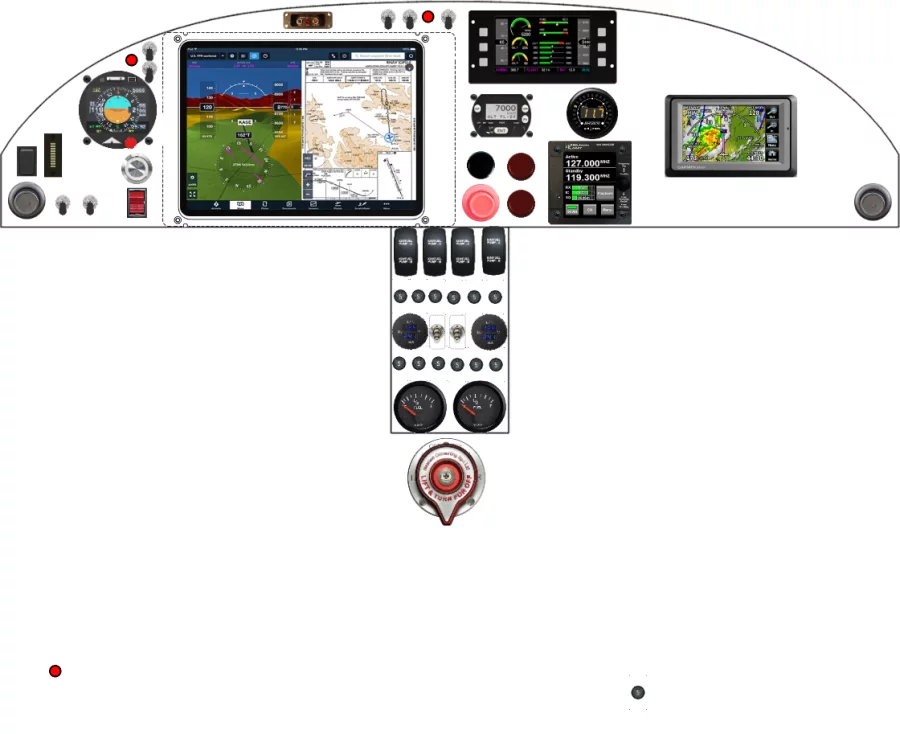

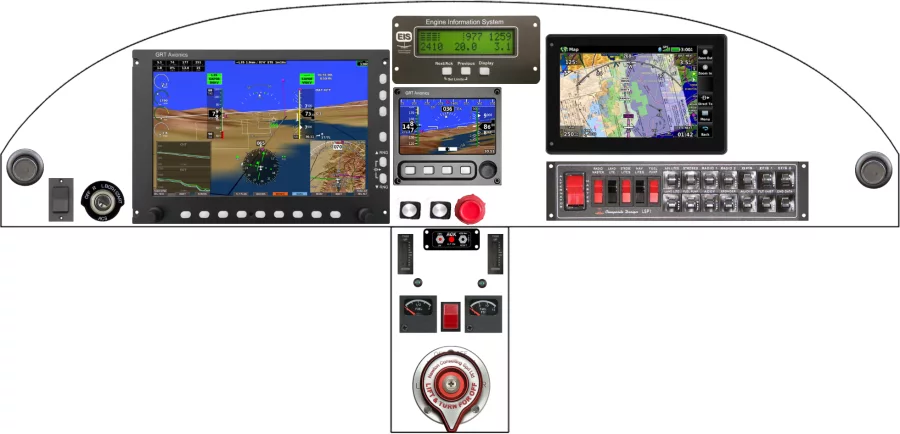

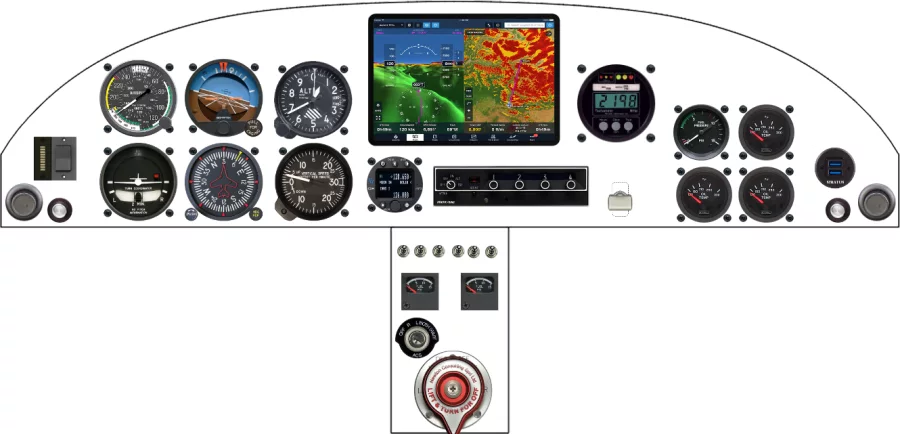

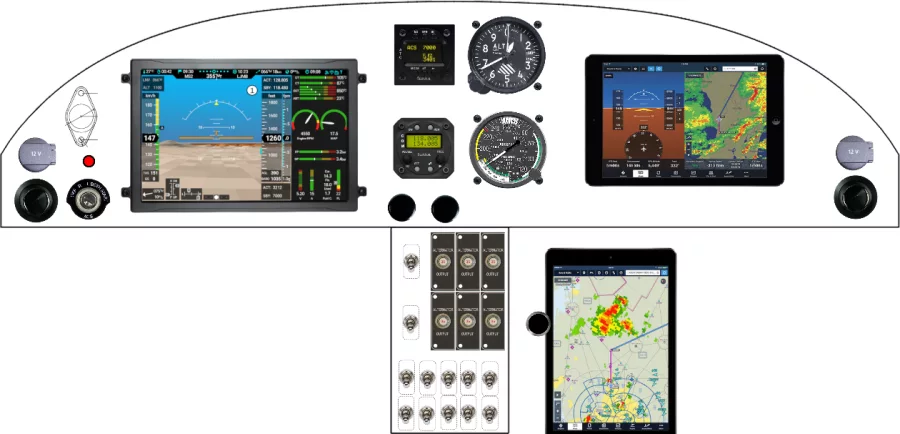

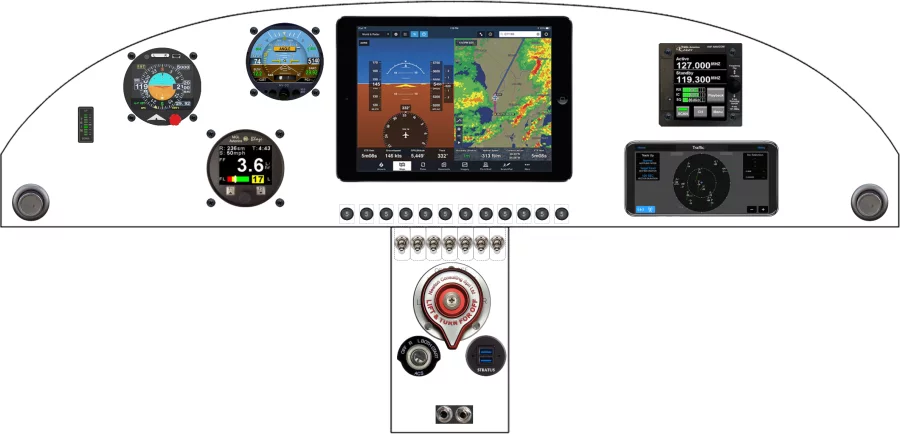

Recent CH-601/601XL panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a CH-601/601XL panel
The equipment placed most often across the 237 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 78 | 33% |
| The Ray Allen Company Trim Indicator | 74 | 31% |
| Newton Consulting SPRL Limited SPRL V1-3P Fuel Valve | 72 | 30% |
| Falcon Gauge Airspeed Indicator 3" | 67 | 28% |
| ACK Technologies ELT | 65 | 27% |
| Falcon Gauge Altimeter 3" | 61 | 26% |
| Falcon Gauge Vertical Speed Indicator | 47 | 20% |
| The Ray Allen Company RS2 | 46 | 19% |
Other Zenith Aircraft Company panels
From layout to fabricated panel
Lay out the CH-601/601XL panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
