Zenith Aircraft Company 601 HD/S instrument panel

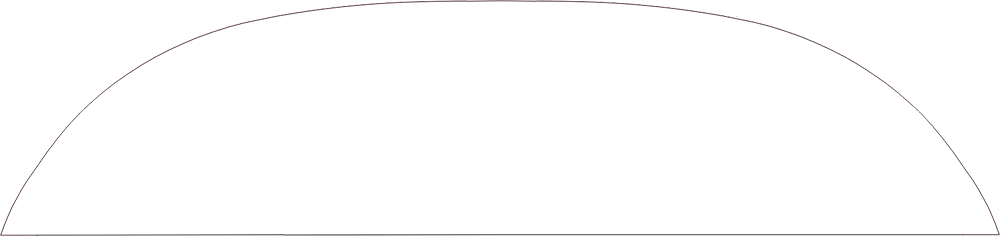

The 601 HD/S panel template at the panel's dimensions, 38.78 × 9.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

26 panels laid out on these 2 templates

Zenith Aircraft Company 601 HD/S instrument panel template

2 templates for the 601 HD/S

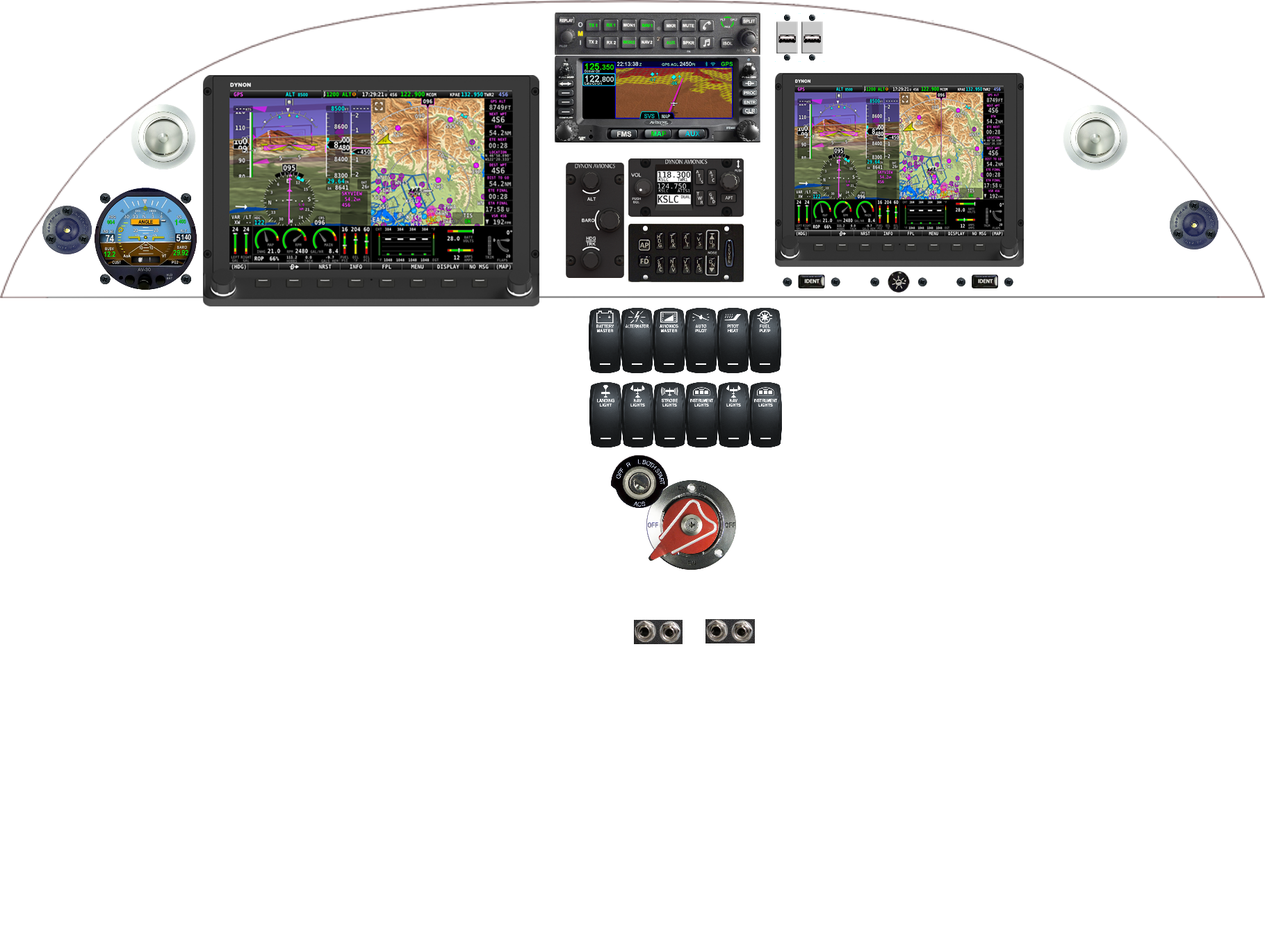

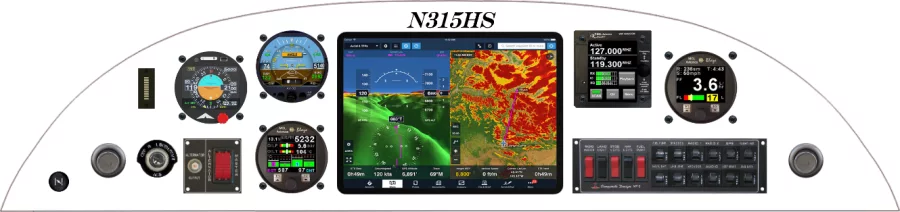

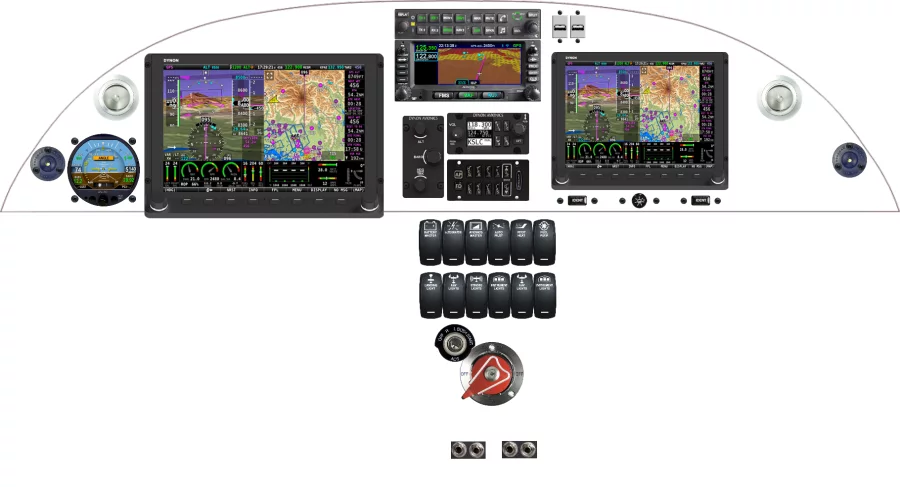

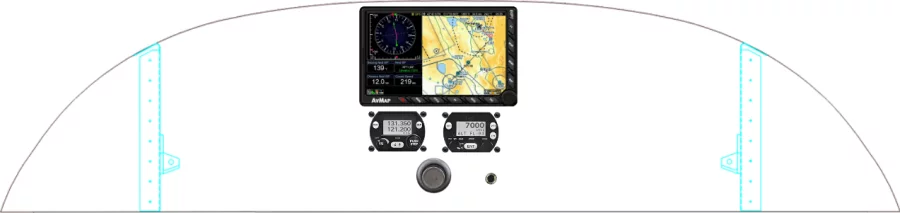

Recent 601 HD/S panel designs

Exported by builders from the Panel Designer, newest first.

All featured designs →

601 HD/S for sale

All aircraft for sale →

Selling a 601 HD/S? List it on the Hangar Flying Marketplace, where builders and owners look.

What builders put in a 601 HD/S panel

The equipment placed most often across the 26 designs on this template. Counts, never names.

EquipmentDesignsShare
Dynon Avionics VHF COM727%
uAvionix Corporation AV-30 PFD727%
Dynon Avionics Dynon SkyView HDX 10"623%
Dynon Avionics Dynon SkyView HDX 7"623%
Dynon Avionics Autopilot Panel623%
Dynon Avionics Dimmer Module519%
The Ray Allen Company Trim Indicator519%
Avidyne AMX240519%

Other Zenith Aircraft Company panels

All Zenith Aircraft Company templates →

From layout to fabricated panel

Lay out the 601 HD/S panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
