Zenith Aircraft Company STOL CH 701 instrument panel

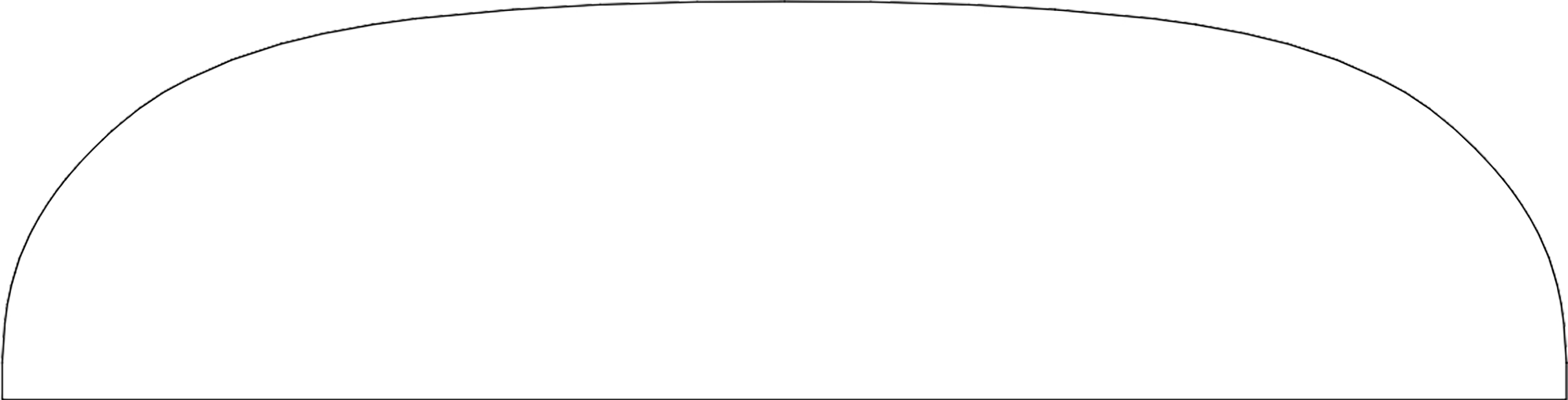

The STOL CH 701 panel template at the panel's dimensions, 33.63 × 8.5 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
94 panels laid out on this template

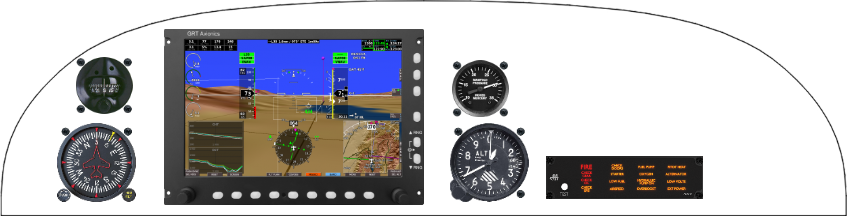

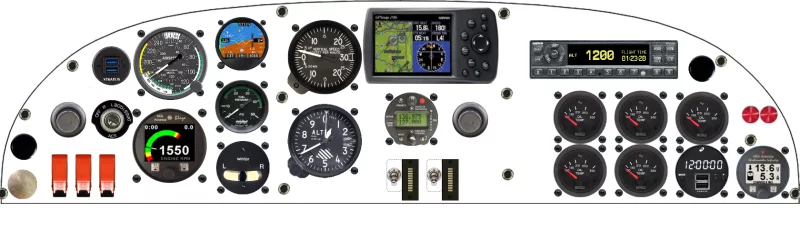

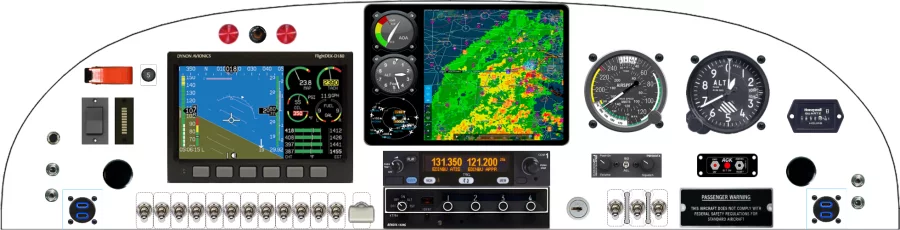

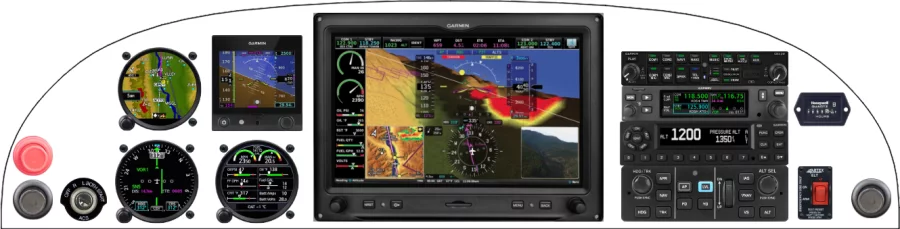

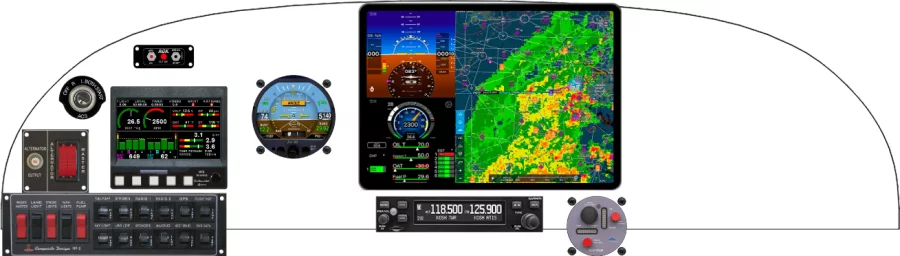

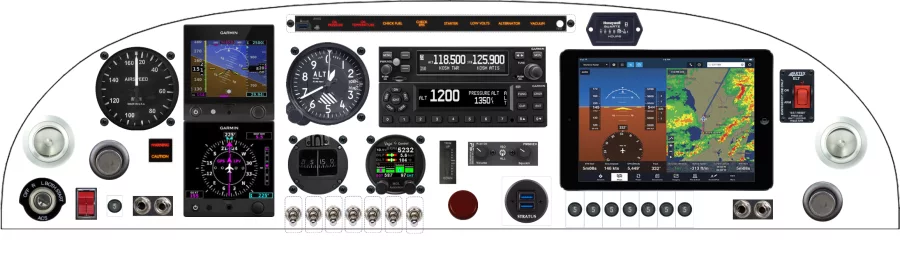

Recent STOL CH 701 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a STOL CH 701 panel
The equipment placed most often across the 94 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 20 | 21% |
| Sensa Technologies 7277 | 20 | 21% |
| ACK Technologies ELT | 20 | 21% |
| Falcon Gauge Airspeed Indicator 3" | 19 | 20% |
| Falcon Gauge Altimeter 3" | 14 | 15% |
| Falcon Gauge Airspeed Indicator 2" | 14 | 15% |
| The Ray Allen Company Trim Indicator | 13 | 14% |
| Falcon Gauge Altimeter 2" | 13 | 14% |
Other Zenith Aircraft Company panels
From layout to fabricated panel
Lay out the STOL CH 701 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
