Piper Aircraft PA-28
PA-28 panel with Dynon SkyView HDX
55 builders have laid out a PA-28 panel with the Dynon SkyView HDX in the Panel Designer, 13% of the PA-28 builders here. Their newest designs, what they put beside it, and the PA-28 template to start your own, to scale.
99 PA-28 designs with the Dynon SkyView HDX

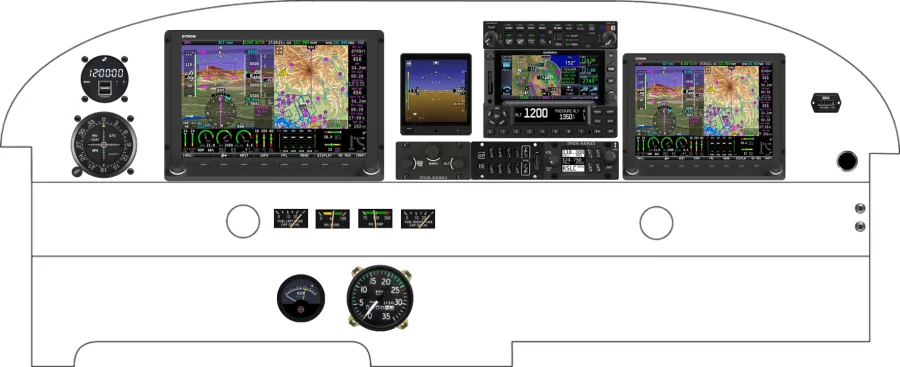

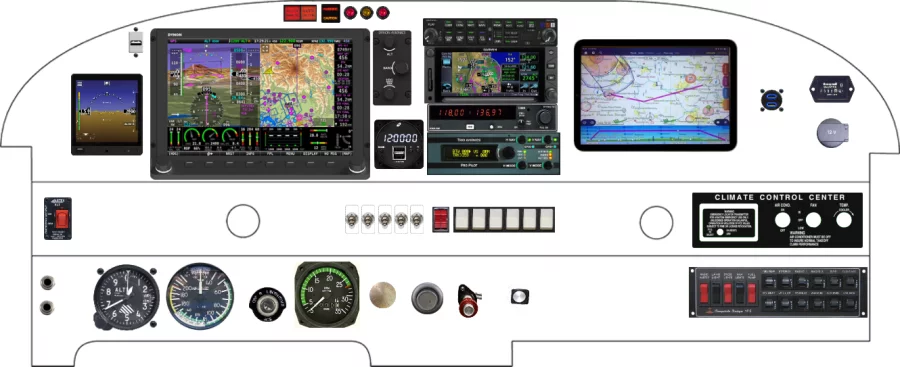

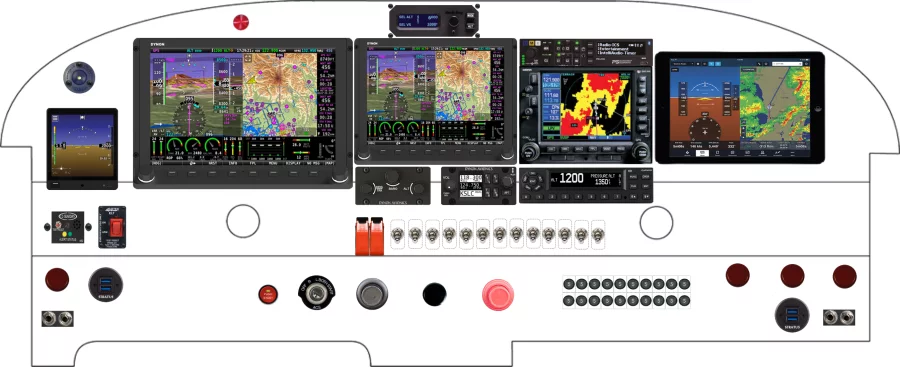

PA-28 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 99 PA-28 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Knob Control | 76 | 77% |
| Dynon Avionics VHF COM | 53 | 54% |
| Dynon Avionics D30 | 47 | 47% |
| Dynon Avionics EFIS-D10A | 41 | 41% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 39 | 39% |
| Dynon Avionics Autopilot Panel | 39 | 39% |
| Sensa Technologies 7277 | 33 | 33% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 30 | 30% |
| APPAREO Stratus Power USB Charger | 30 | 30% |
| PS Engineering PMA450B | 26 | 26% |
Other avionics in the PA-28
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 176
- Van's Aircraft RV-8 117
- Van's Aircraft RV-6 65
- Van's Aircraft RV-14 64
- Van's Aircraft RV-10 62
- RANS Aircraft S-20 / S-21 44
- Cessna 182P, Q, R, R182, TR182 43
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the PA-28 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
