Van's Aircraft RV-4
RV-4 panel with Dynon SkyView HDX
31 builders have laid out an RV-4 panel with the Dynon SkyView HDX in the Panel Designer, 17% of the RV-4 builders here. Their newest designs, what they put beside it, and the RV-4 template to start your own, to scale.
58 RV-4 designs with the Dynon SkyView HDX

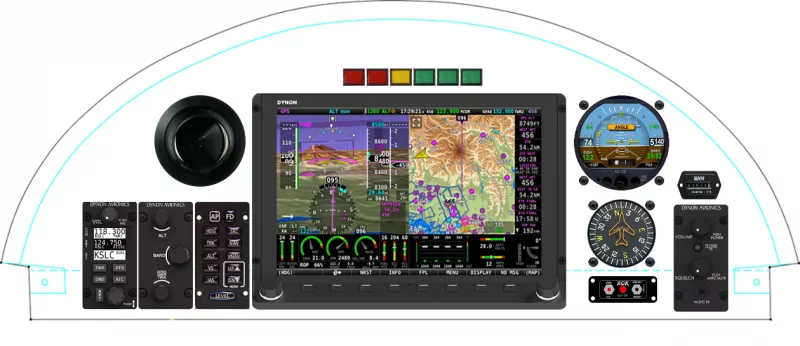

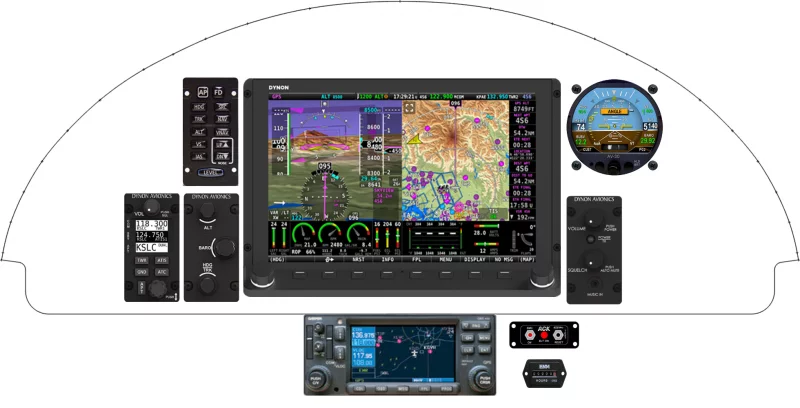

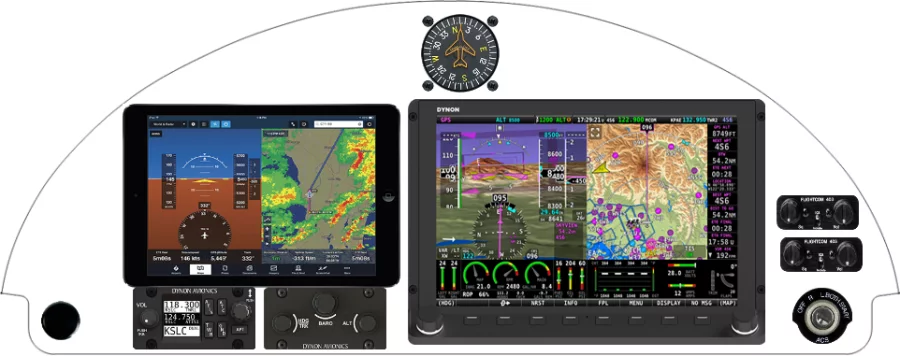

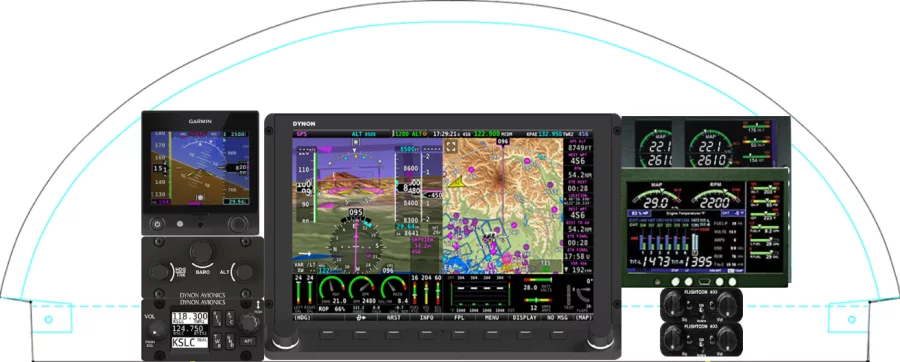

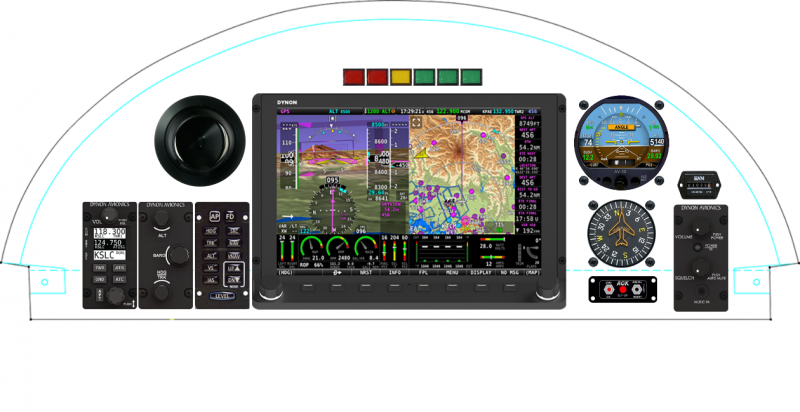

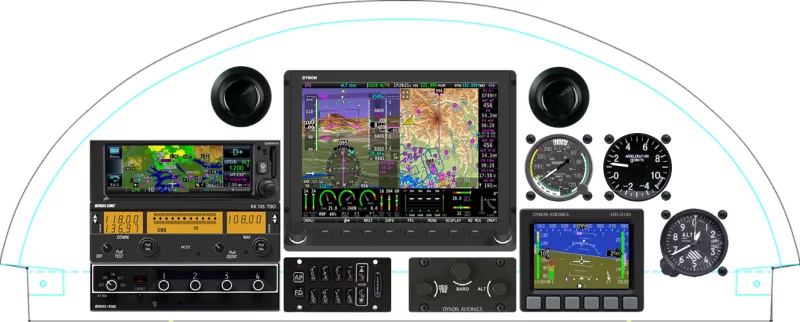

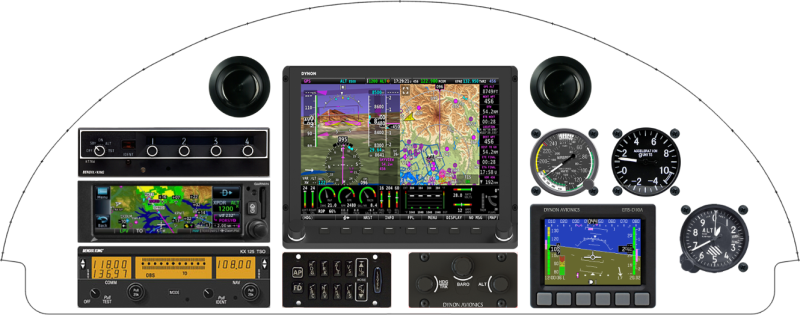

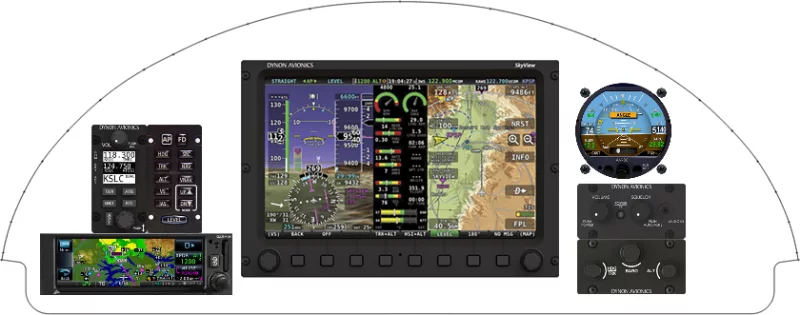

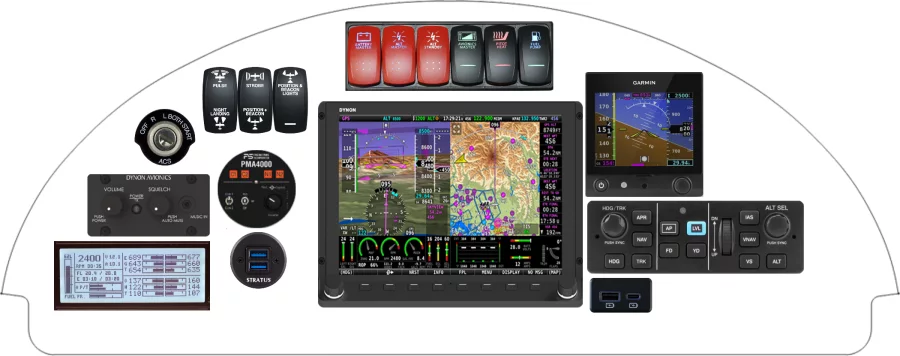

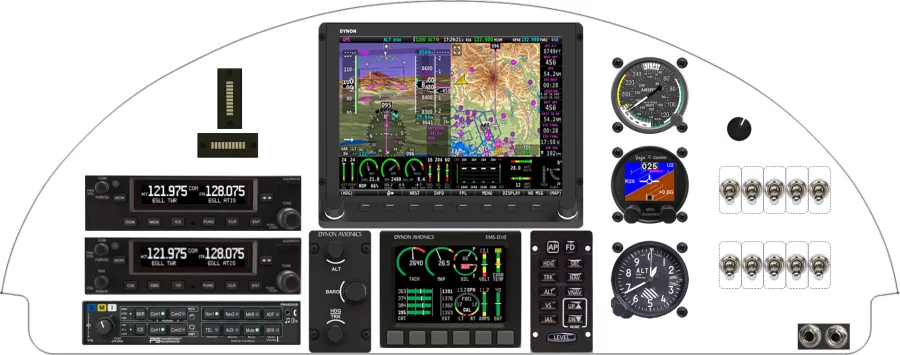

RV-4 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 58 RV-4 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 43 | 74% |
| Dynon Avionics Knob Control | 41 | 71% |
| Dynon Avionics VHF COM | 29 | 50% |
| Dynon Avionics Stereo Intercom | 21 | 36% |
| Garmin GPS 175 | 20 | 34% |
| Garmin G5 | 15 | 26% |
| Falcon Gauge Altimeter 2" | 15 | 26% |
| Falcon Gauge Airspeed Indicator 2" | 14 | 24% |
| Precision Aviation Vertical Card Compass | 14 | 24% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 12 | 21% |
Other avionics in the RV-4
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 174
- Van's Aircraft RV-8 116
- Van's Aircraft RV-6 64
- Van's Aircraft RV-14 62
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 52
- RANS Aircraft S-20 / S-21 45
- Cessna 182P, Q, R, R182, TR182 41
- Zenith Aircraft Company STOL CH 750 37
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
- Velocity Aircraft Velocity 24
From layout to fabricated panel
Lay out the RV-4 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
