Cessna instrument panels

27 templates for 21 aircraft, 2,683 panels laid out. Each template is at the panel's real dimensions.

Cessna 172 instrument panel template
172403 designs
40.5 × 18.63 in
Cessna 172 instrument panel template
172131 designs
45.02 × 22.51 in
Cessna 180 / 185 instrument panel template
180 / 185526 designs
37.88 × 17.45 in
Cessna 182P, Q, R, R182, TR182 instrument panel template
182P, Q, R, R182, TR182439 designs
38.63 × 15.97 in
Cessna 150 instrument panel template
150166 designs
32.12 × 16.06 in
Cessna 177 Cardinal · Late instrument panel template
177 Cardinal · Late78 designs
40.13 × 16.54 in
Cessna 177 Cardinal · Early instrument panel template
177 Cardinal · Early65 designs
40.13 × 16.13 in
Cessna 177 Cardinal instrument panel template
177 Cardinal15 designs
40.13 × 15.92 in
Cessna 210 instrument panel template
210114 designs
40 × 18 in
Cessna 170B instrument panel template
170B64 designs
31 × 8 in
Cessna 170B instrument panel template
170B32 designs
37 × 10.13 in
Cessna T210N instrument panel template
T210N81 designs
42.19 × 15 in
Cessna 210L · 1976 Turbo instrument panel template
210L · 1976 Turbo72 designs
42 × 17 in
Cessna 182A instrument panel template
182A66 designs
39 × 18.63 in
Cessna 150F instrument panel template
150F62 designs
34.82 × 18.28 in
Cessna 172A instrument panel template
172A58 designs
44.96 × 22.48 in
Cessna 310P · Late instrument panel template
310P · Late56 designs
53.4 × 24.38 in
Cessna 182J instrument panel template
182J53 designs
44.27 × 17.27 in
Cessna 182B/C · Custom - Flat instrument panel template
182B/C · Custom - Flat42 designs
38.55 × 19.35 in
Cessna 208 · Without inset panels instrument panel template
208 · Without inset panels28 designs
59.99 × 29.99 in

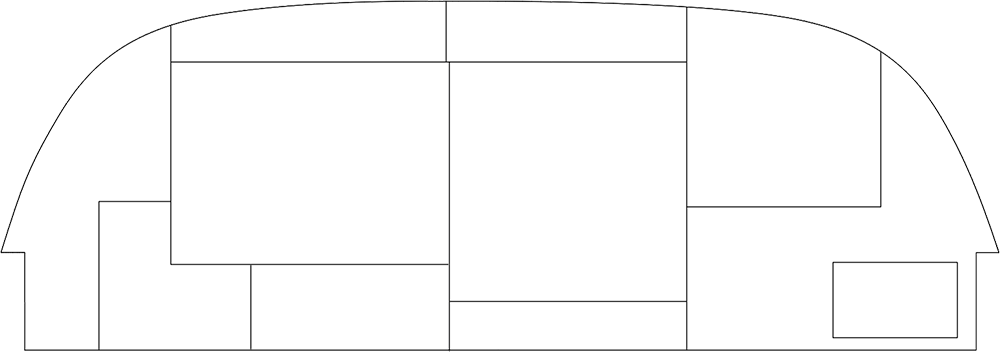

Cessna 208 · With inset panels instrument panel template
208 · With inset panels9 designs
59.99 × 29.99 in
Cessna 337 Skymaster instrument panel template
337 Skymaster33 designs
45.8 × 22.9 in
Cessna 182S instrument panel template
182S31 designs
41.5 × 16.6 in
Cessna 414 instrument panel template
41428 designs
52.51 × 26.25 in

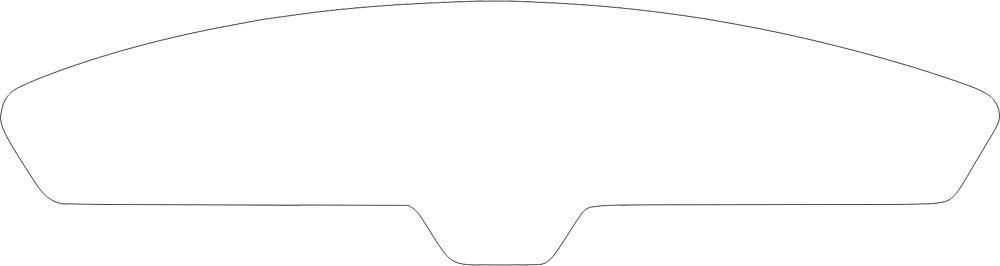

Cessna 120 instrument panel template
12018 designs
35.67 × 14.13 in
Cessna 120 instrument panel template
1207 designs
29.25 × 7.56 in
Cessna 195 Businessliner instrument panel template
195 Businessliner6 designs
42 × 12 in
