Cessna 182S instrument panel

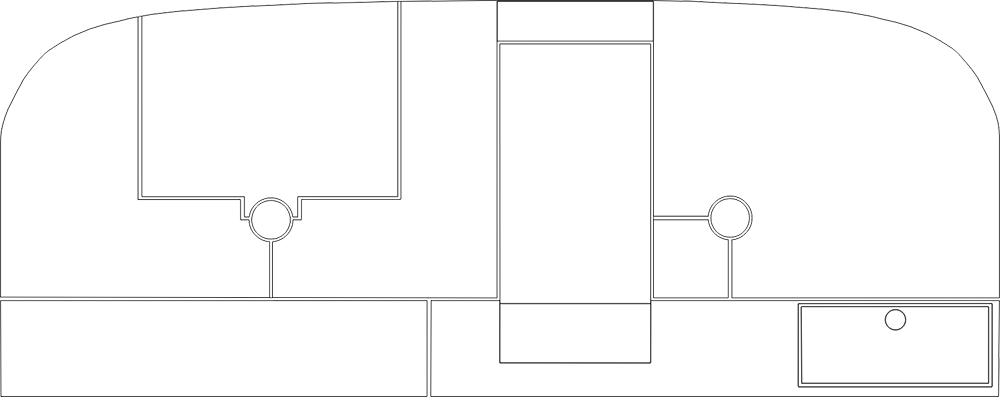

The 182S panel template at the panel's dimensions, 41.5 × 16.6 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
35 panels laid out on this template

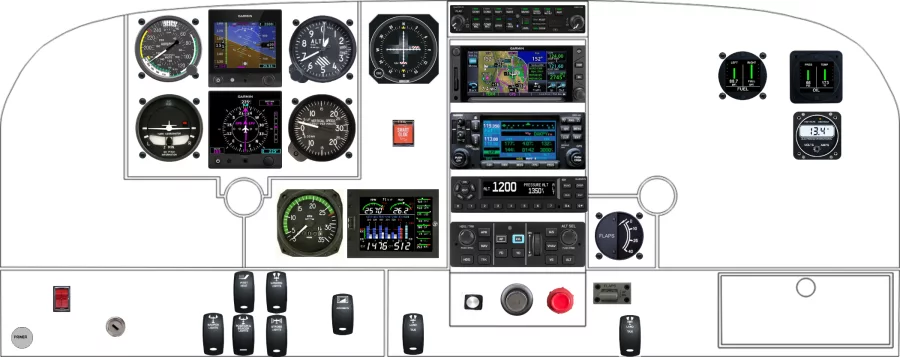

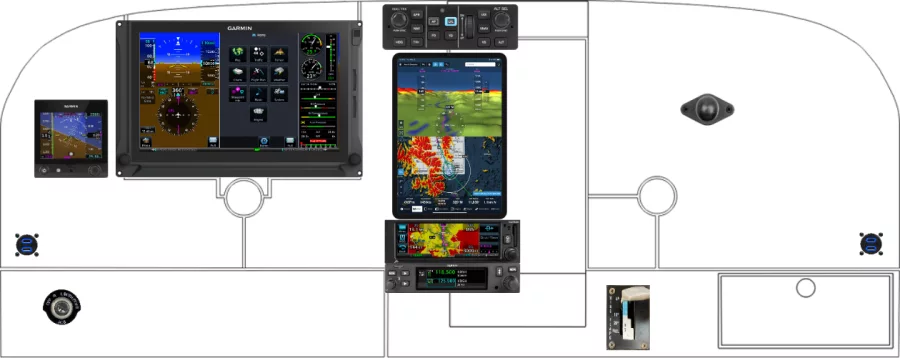

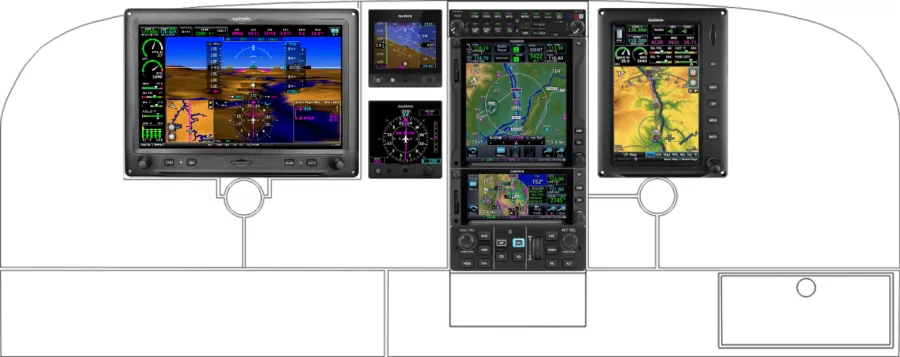

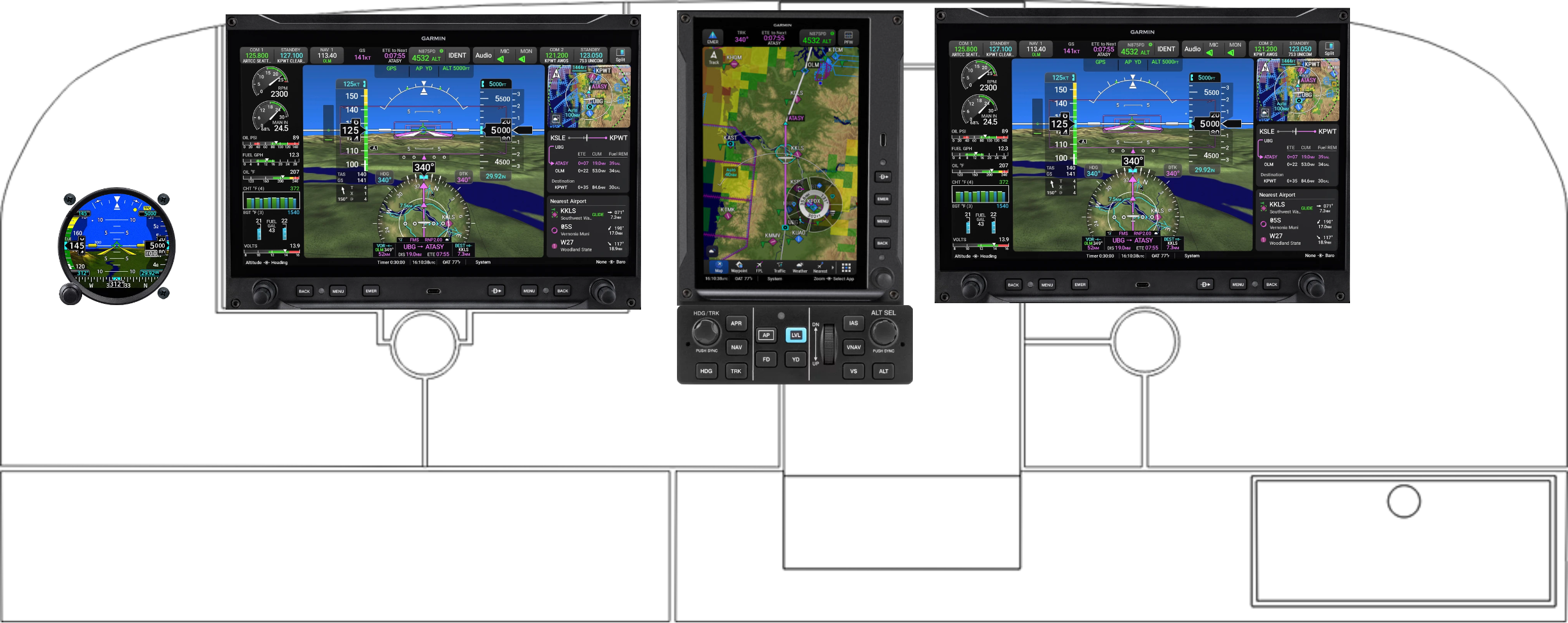

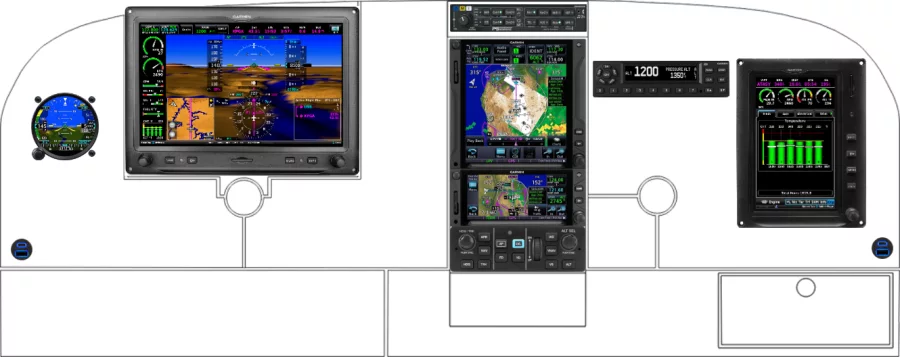

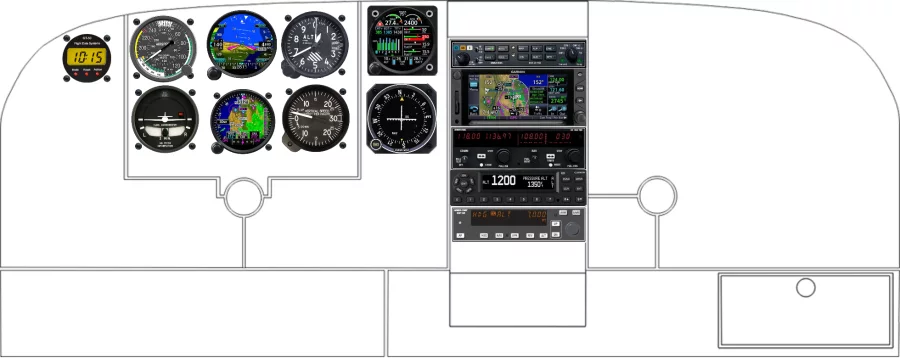

Recent 182S panel designs
Exported by builders from the Panel Designer, newest first.
182S for sale
Selling a 182S? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a 182S panel
The equipment placed most often across the 35 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 14 | 40% |
| Garmin International, Inc GTX 345 | 13 | 37% |
| Garmin International, Inc Axis | 13 | 37% |
| Garmin International, Inc G5 | 12 | 34% |
| Garmin International, Inc GTN 650Xi | 9 | 26% |
| Garmin International, Inc GTN 750Xi | 8 | 23% |
| Dynon Avionics Autopilot Panel | 7 | 20% |
| Garmin International, Inc GNC 215 | 7 | 20% |
Other Cessna panels
From layout to fabricated panel
Lay out the 182S panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
