Cessna 180 / 185 instrument panel
The 180 / 185 panel template at the panel's dimensions, 37.88 × 17.45 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
526 panels laid out on this template

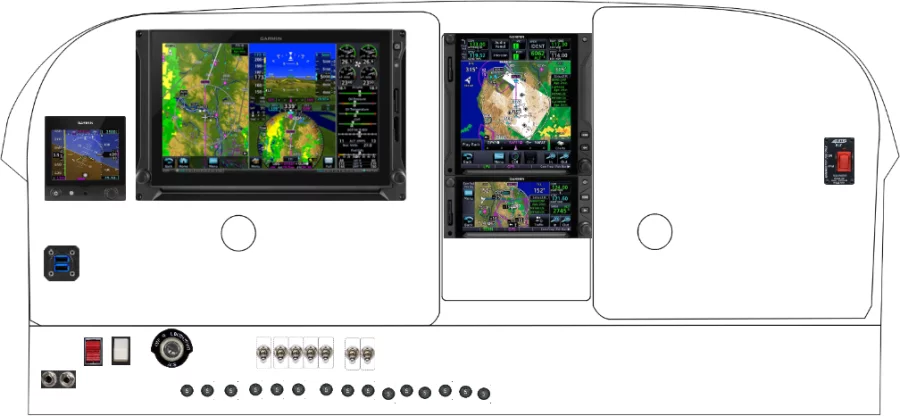

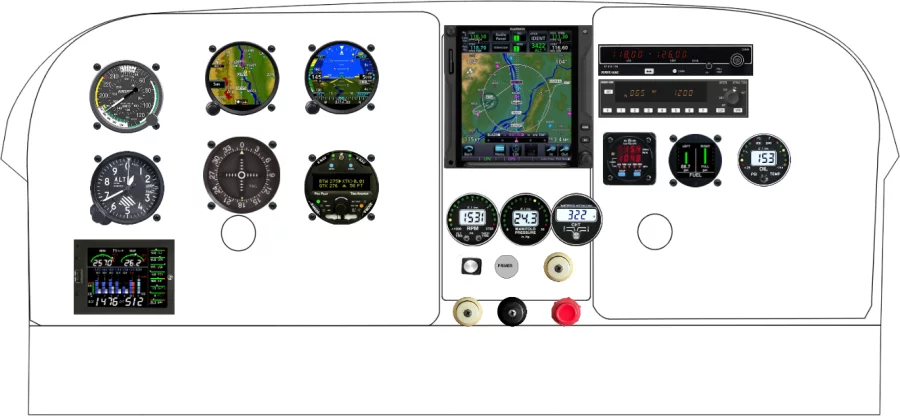

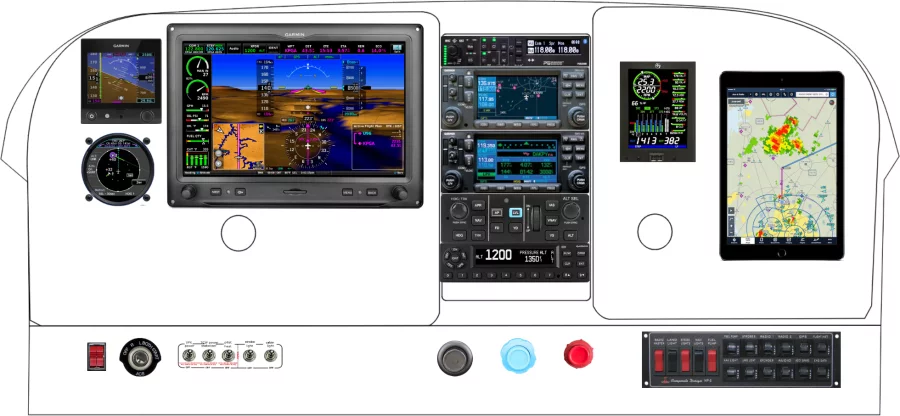

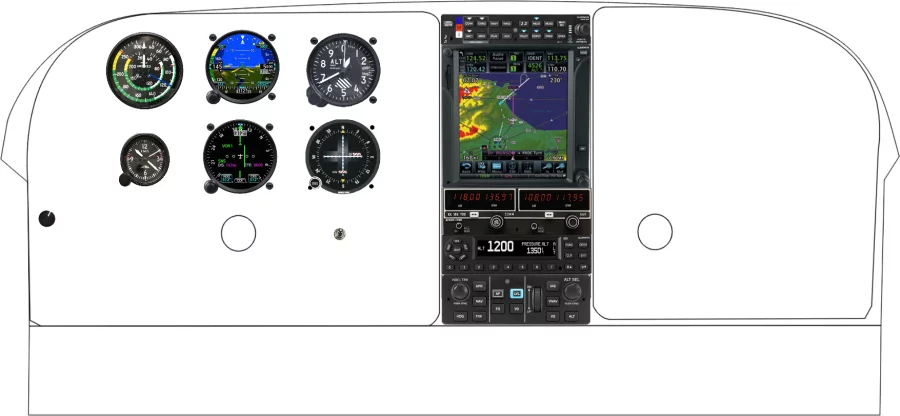

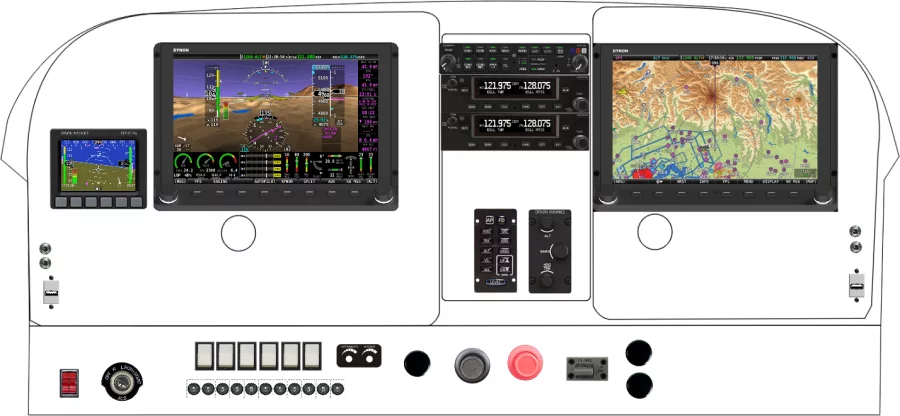

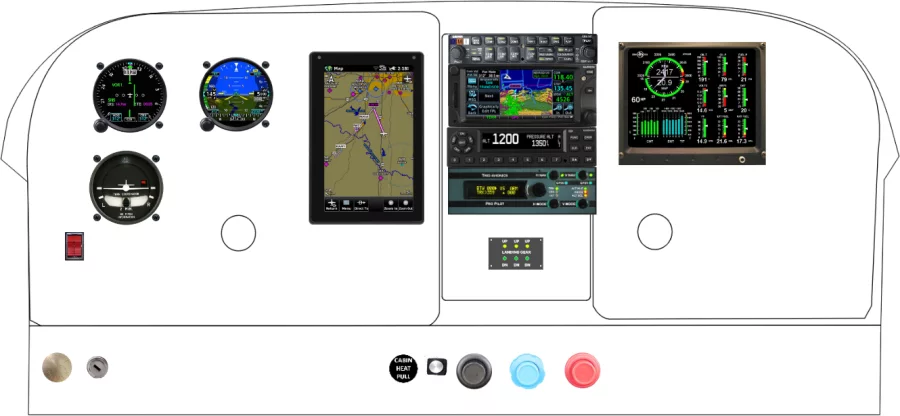

Recent 180 / 185 panel designs
Exported by builders from the Panel Designer, newest first.
180 / 185 for sale
Selling a 180 / 185? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a 180 / 185 panel
The equipment placed most often across the 526 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 156 | 30% |
| Falcon Gauge Airspeed Indicator 3" | 154 | 29% |
| Garmin International, Inc G5 | 150 | 29% |
| Falcon Gauge Vertical Speed Indicator | 146 | 28% |
| Sensa Technologies 7277 | 113 | 21% |
| Garmin International, Inc GFC 500 | 88 | 17% |
| Garmin International, Inc G3X Touch | 88 | 17% |
| Garmin International, Inc GTX 345 | 81 | 15% |
180 / 185 panels by avionics system
Builders who laid out a 180 / 185 panel with each system.
Other Cessna panels
From layout to fabricated panel
Lay out the 180 / 185 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
