Cessna 182P, Q, R, R182, TR182 instrument panel
The 182P, Q, R, R182, TR182 panel template at the panel's dimensions, 38.63 × 15.97 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
439 panels laid out on this template

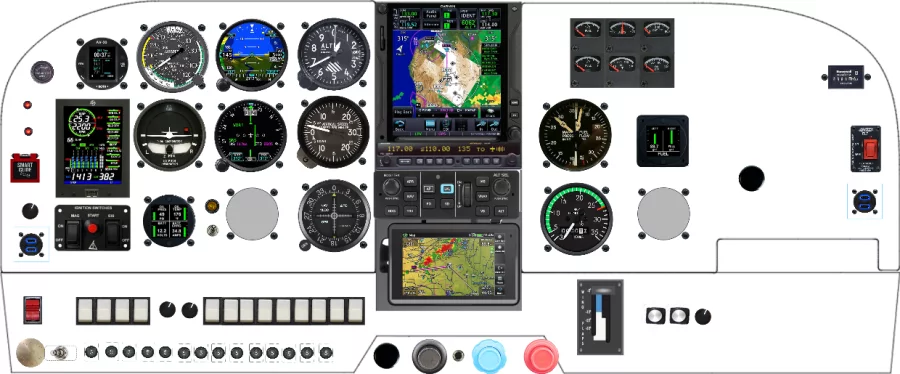

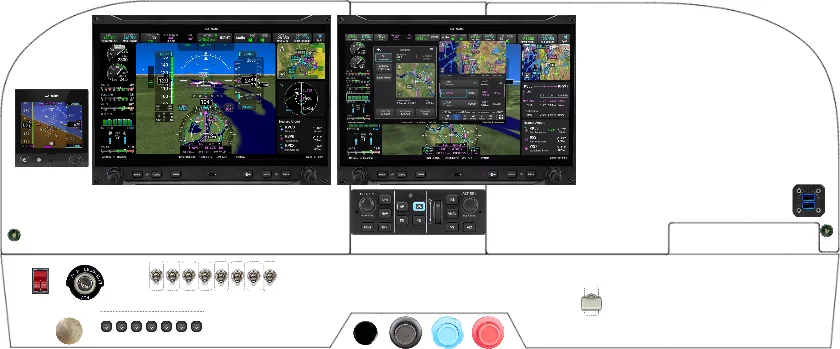

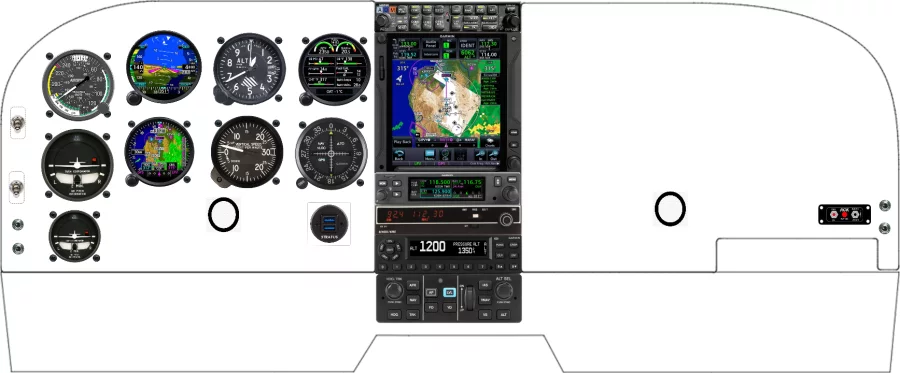

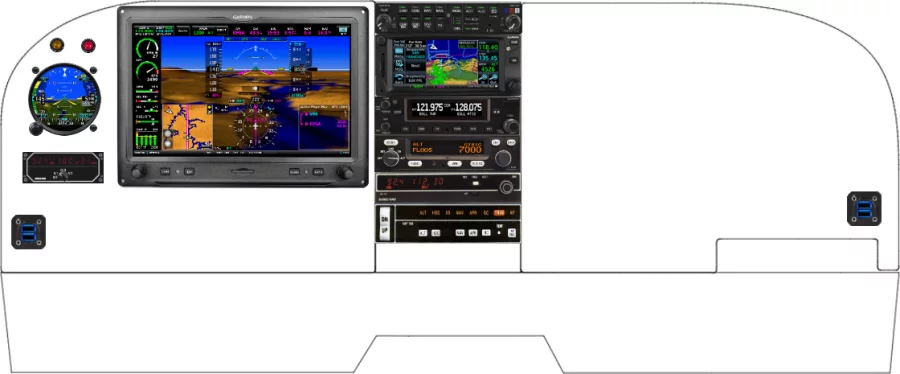

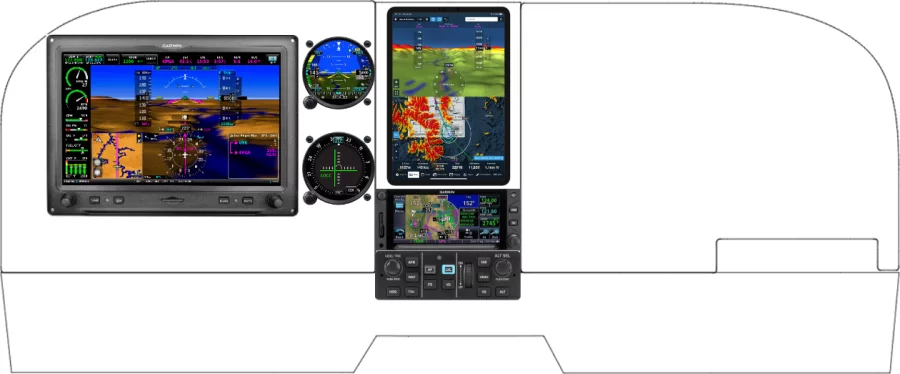

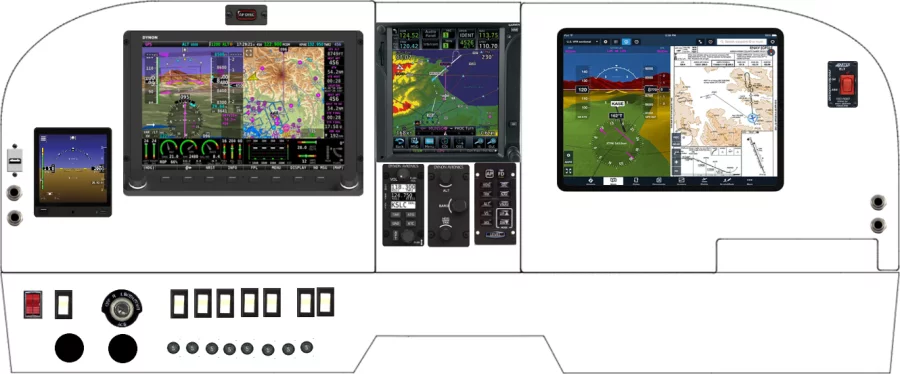

Recent 182P, Q, R, R182, TR182 panel designs
Exported by builders from the Panel Designer, newest first.
182P, Q, R, R182, TR182 for sale
Selling a 182P, Q, R, R182, TR182? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a 182P, Q, R, R182, TR182 panel
The equipment placed most often across the 439 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 153 | 35% |
| Falcon Gauge Vertical Speed Indicator | 147 | 33% |
| Falcon Gauge Altimeter 3" | 146 | 33% |
| Garmin International, Inc GFC 500 | 141 | 32% |
| Garmin International, Inc G5 | 140 | 32% |
| Garmin International, Inc GSB 15 | 100 | 23% |
| Sensa Technologies 7277 | 99 | 23% |
| Garmin International, Inc GI 275 ADI | 95 | 22% |
182P, Q, R, R182, TR182 panels by avionics system
Builders who laid out a 182P, Q, R, R182, TR182 panel with each system.
