Cessna 182A instrument panel

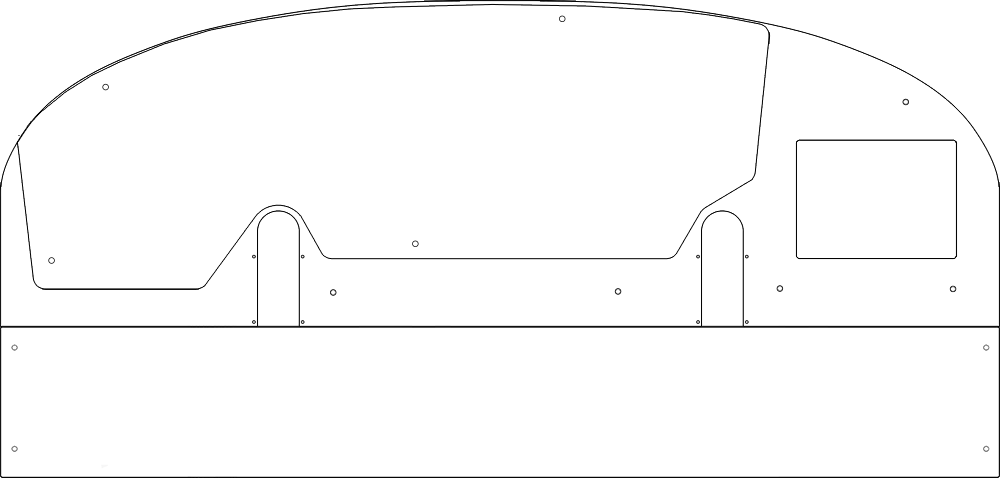

The 182A panel template at the panel's dimensions, 39 × 18.63 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
66 panels laid out on this template

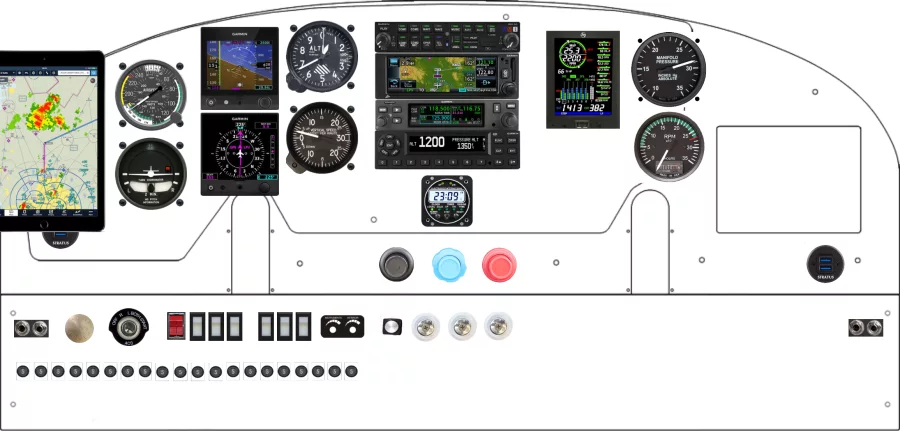

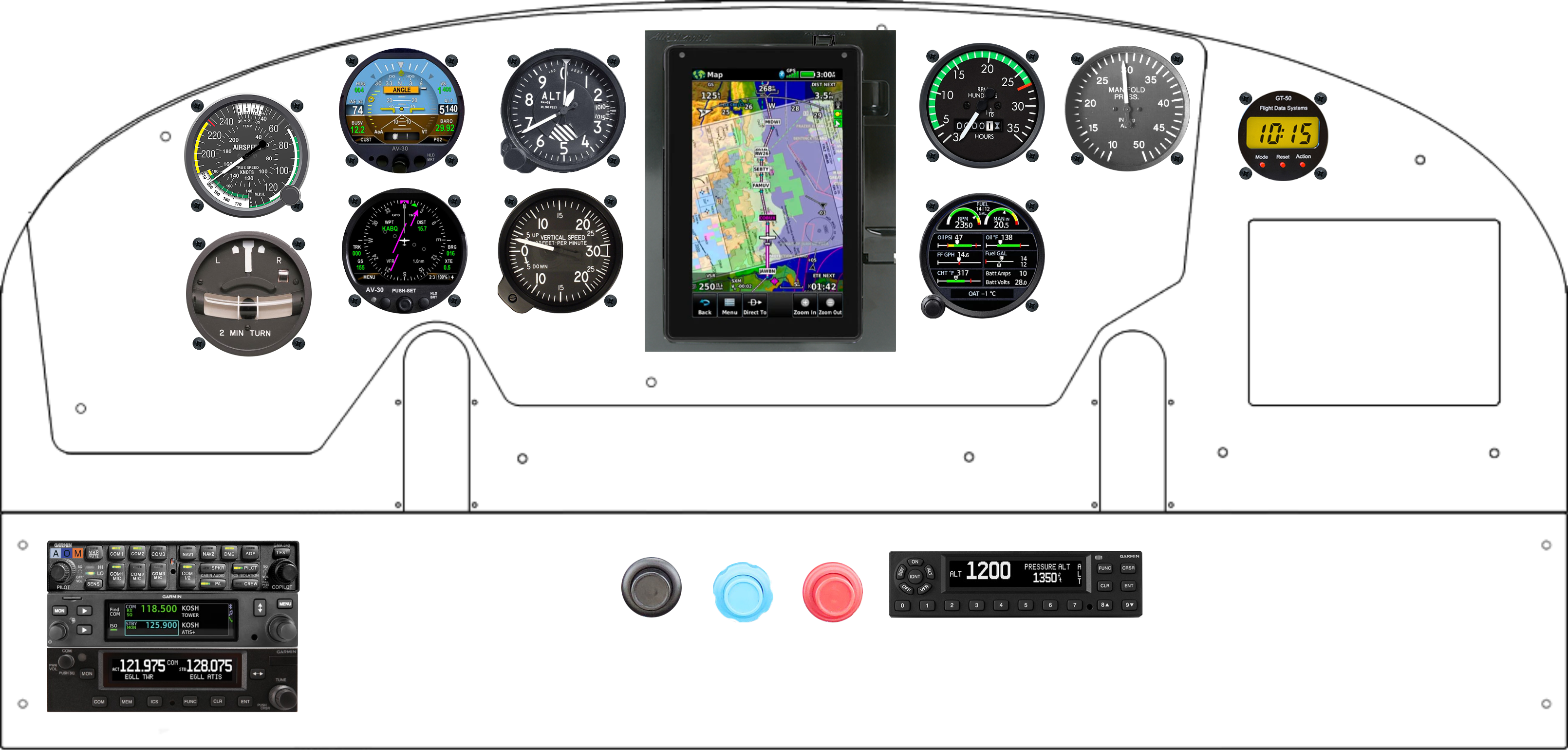

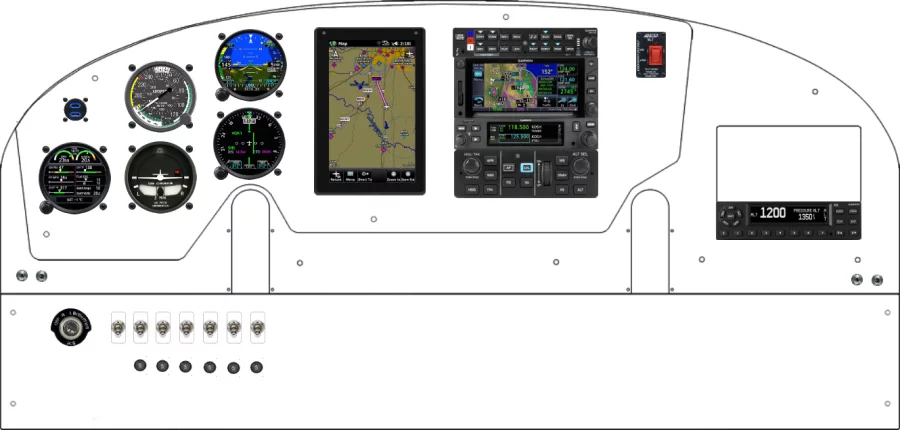

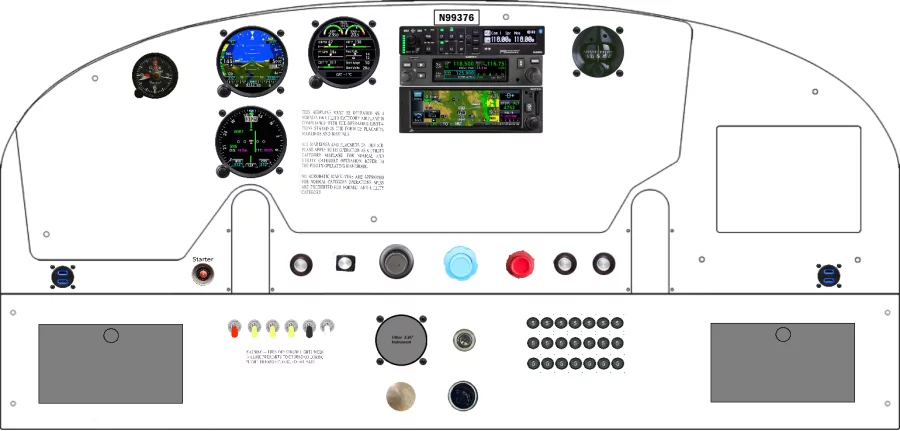

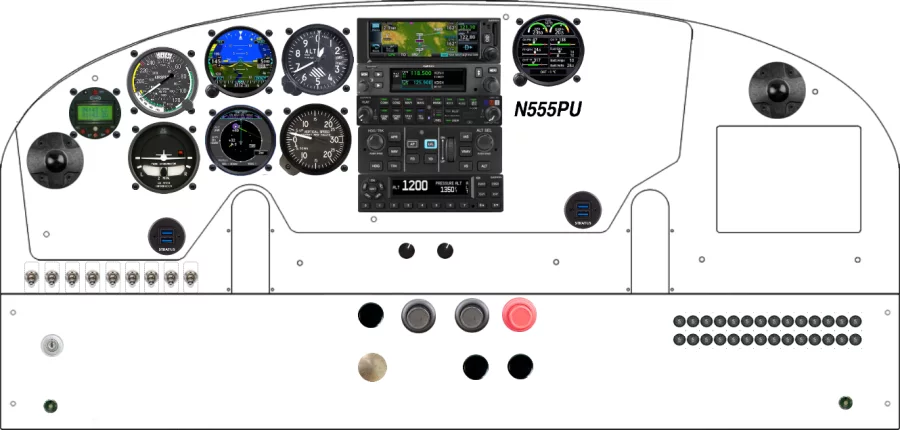

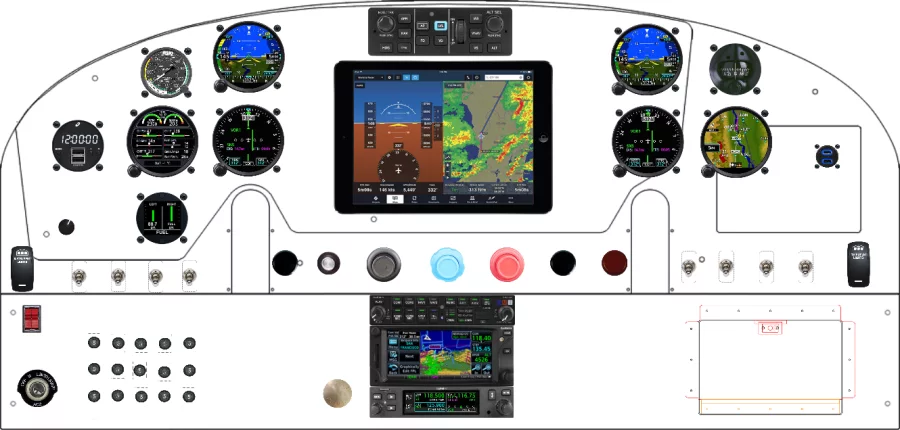

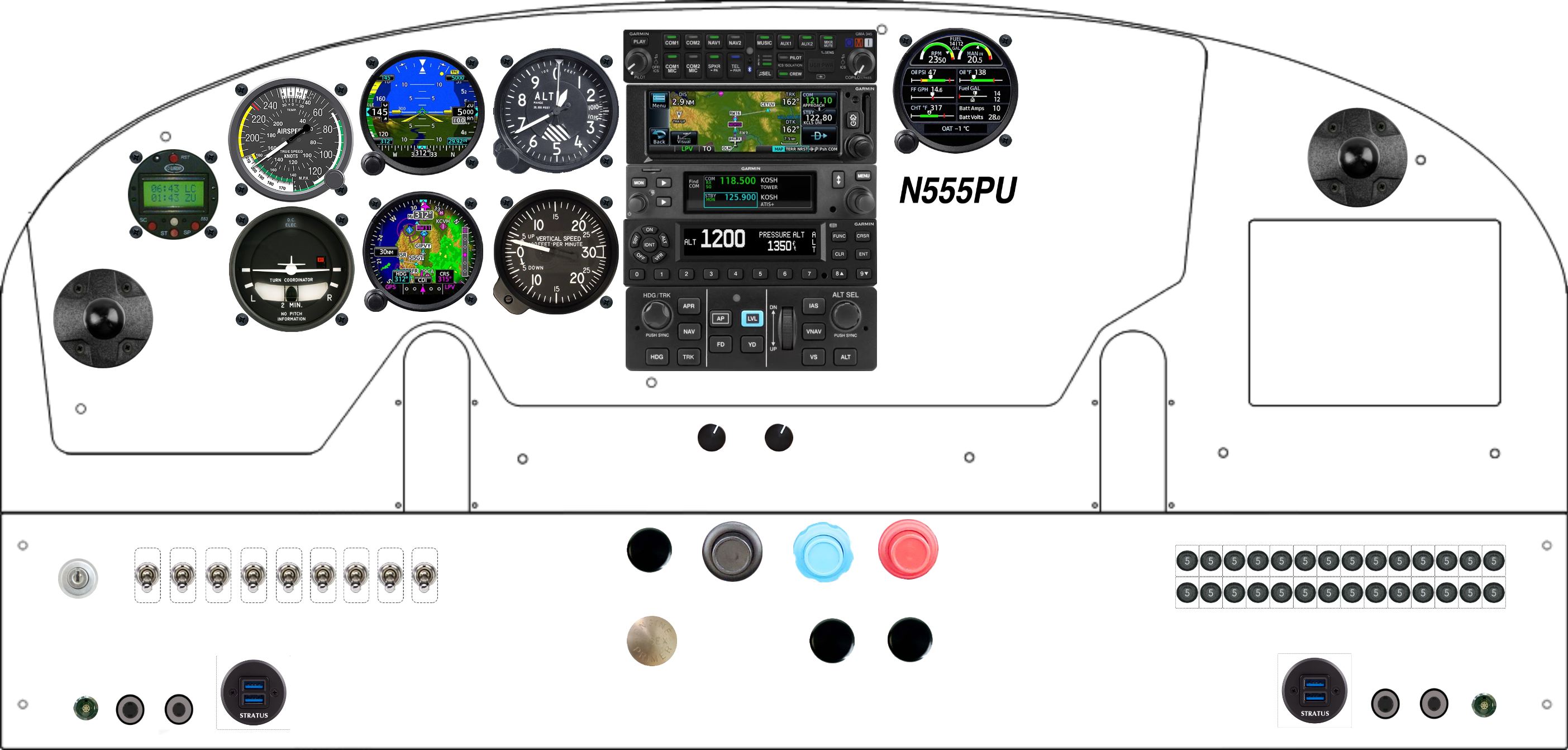

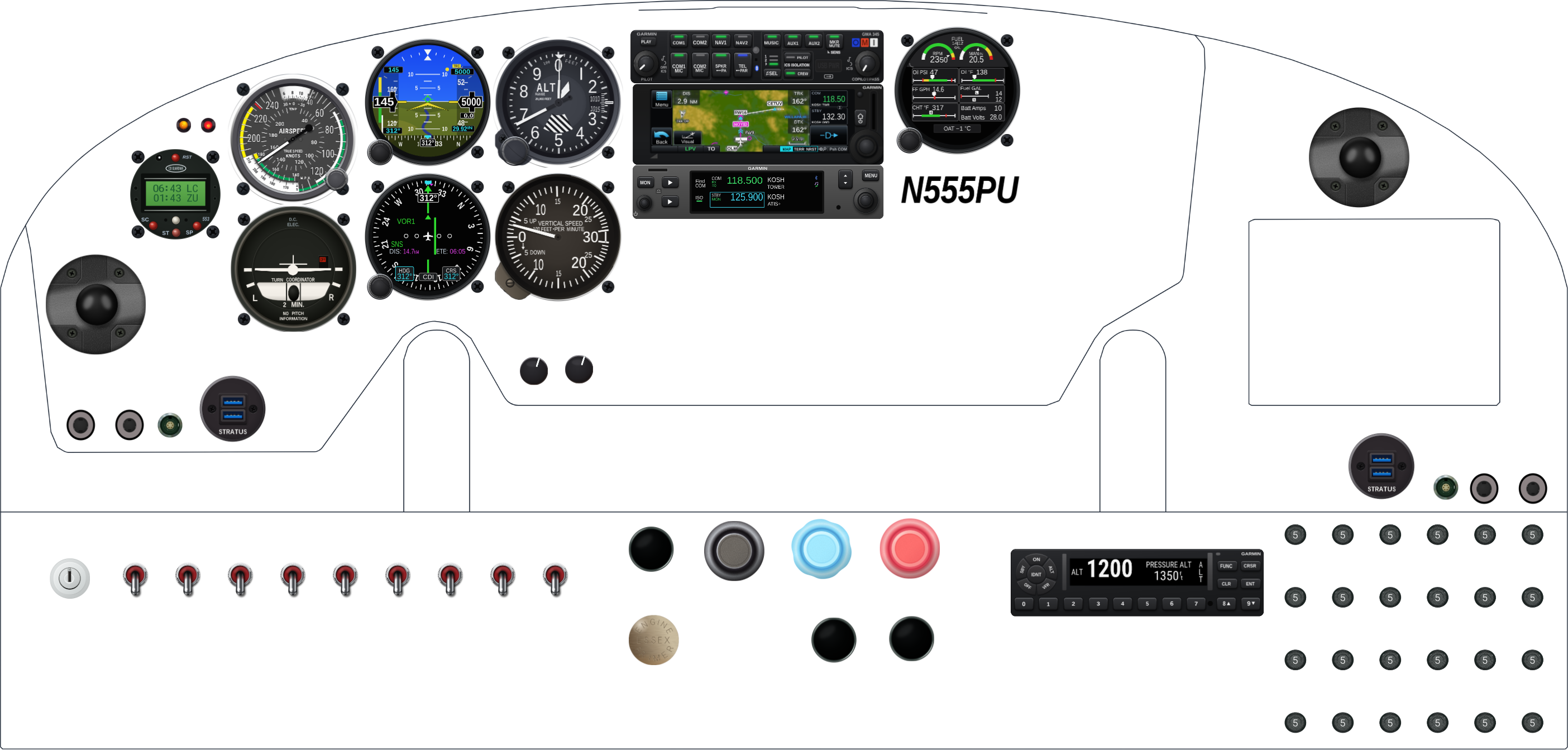

Recent 182A panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 182A panel
The equipment placed most often across the 66 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 25 | 38% |
| Falcon Gauge Altimeter 3" | 21 | 32% |
| Sensa Technologies 7277 | 20 | 30% |
| Falcon Gauge Vertical Speed Indicator | 18 | 27% |
| Garmin International, Inc GI 275 ADI | 15 | 23% |
| Garmin International, Inc GI 275 EIS | 14 | 21% |
| Garmin International, Inc G5 | 13 | 20% |
| uAvionix Corporation AV-30 PFD | 13 | 20% |
