Cessna 120 instrument panel

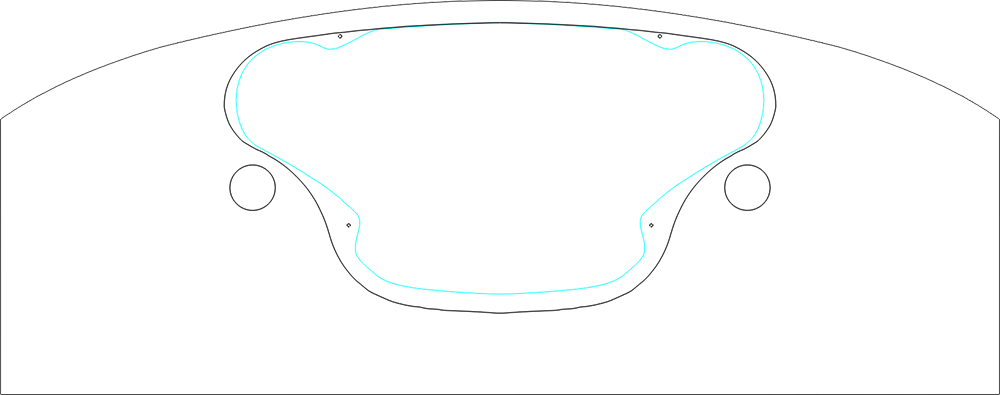

The 120 panel template at the panel's dimensions, 35.67 × 14.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
25 panels laid out on these 2 templates
2 templates for the 120

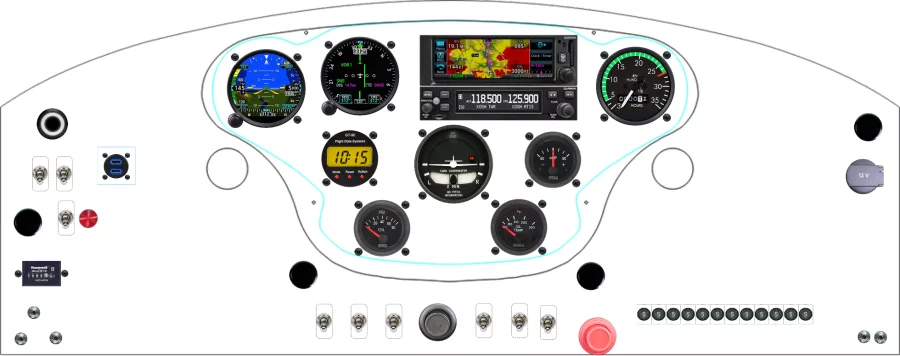

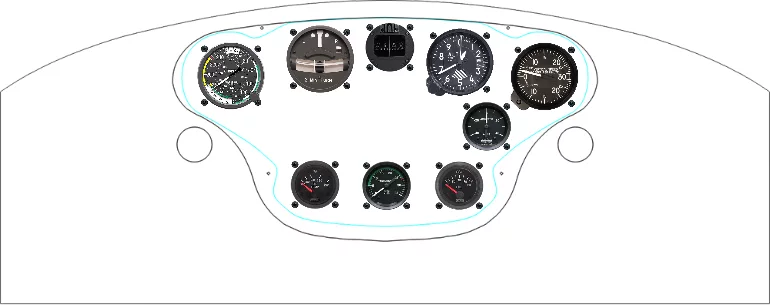

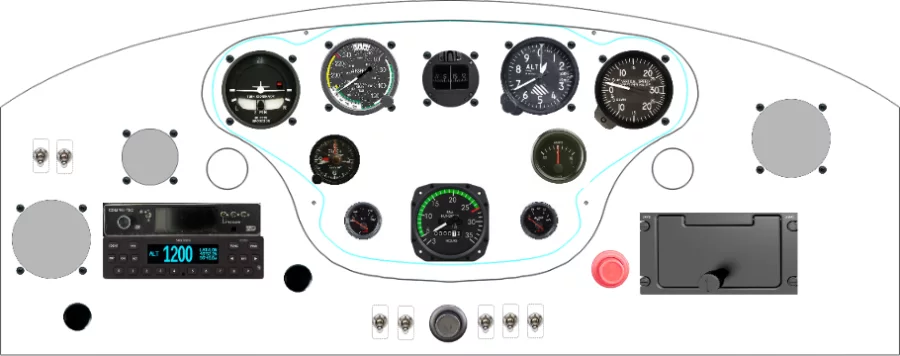

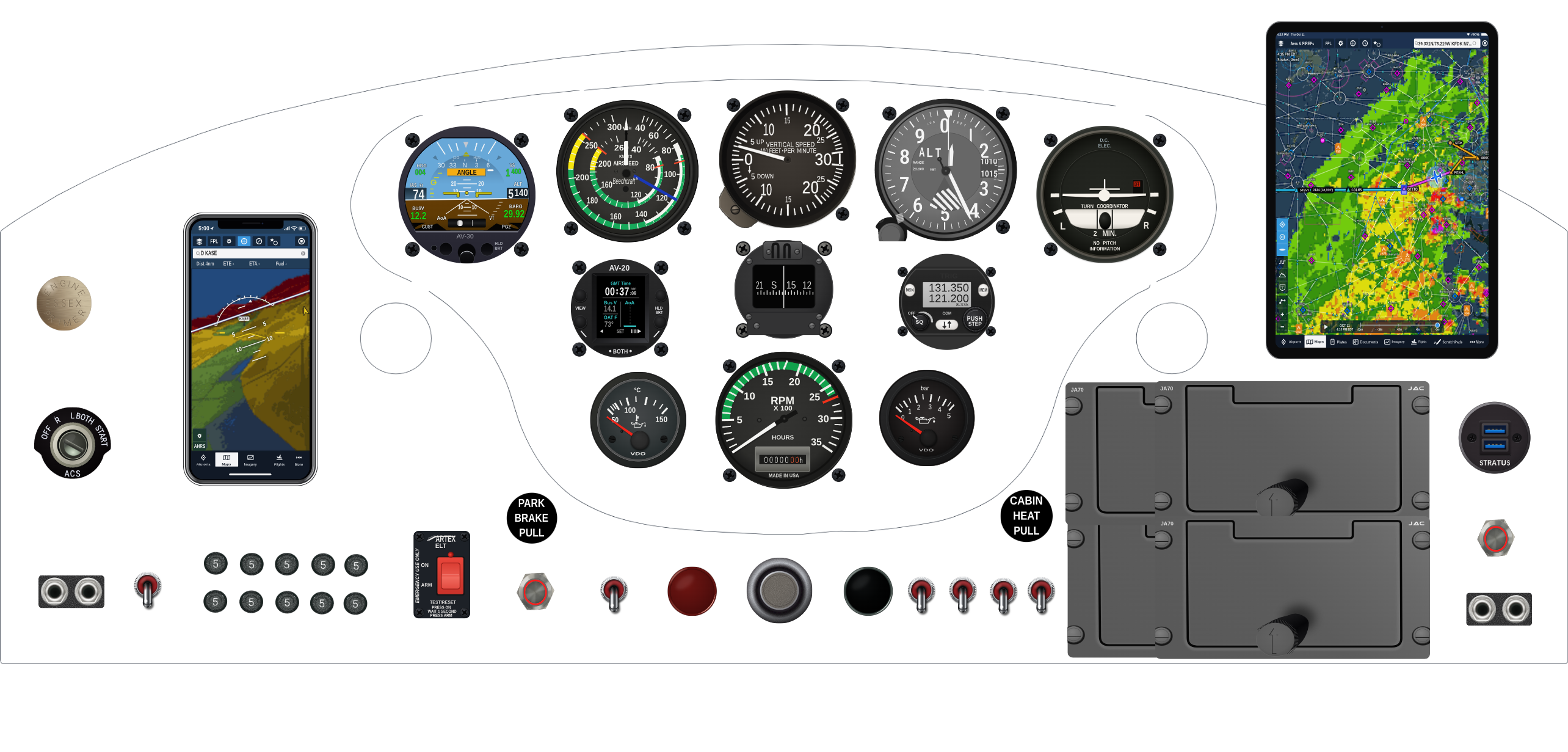

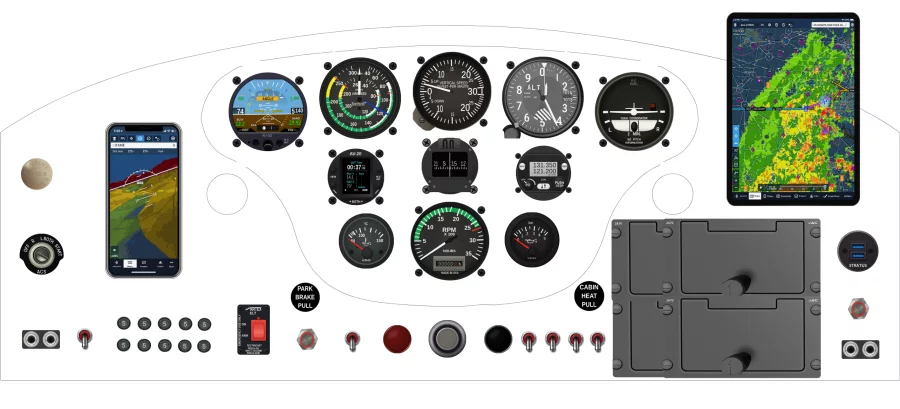

Recent 120 panel designs
Exported by builders from the Panel Designer, newest first.
120 for sale
Selling a 120? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a 120 panel
The equipment placed most often across the 25 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Mitchell Aircraft Products, Inc Oil Temperature Gauge | 11 | 44% |
| Airpath Instrument Company Panel Mount Compass | 11 | 44% |
| Mitchell Aircraft Products, Inc Oil Pressure Gauge | 11 | 44% |
| Falcon Gauge Altimeter 3" | 11 | 44% |
| uAvionix Corporation AV-30 PFD | 11 | 44% |
| Falcon Gauge Vertical Speed Indicator | 10 | 40% |
| Falcon Gauge Airspeed Indicator 3" | 10 | 40% |
| Mitchell Aircraft Products, Inc Ammeter | 9 | 36% |
