Avionics system
Aspen Evolution
Aspen Avionics' Evolution flight and multi-function displays. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
418 panel designs carry it
Aspen Evolution in the library
The number on each is how many designs carry it.
Evolution
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
Aspen Evolution
- Display installation kit and configuration module (one each for each display)
- Remote sensor module (RSM), one for each display
- RSM installation kit (its cable's length)
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 418 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 206 | 49% |
| Falcon Gauge Altimeter 3" | 197 | 47% |
| Falcon Gauge Vertical Speed Indicator | 173 | 41% |
| Garmin GTX 345 | 95 | 23% |
| Sensa Technologies 7277 | 91 | 22% |
| Trig Avionics TI106 CDI | 80 | 19% |
| Mid Continent MD93 Digital Clock | 71 | 17% |
| Bendix King KX 155 | 63 | 15% |

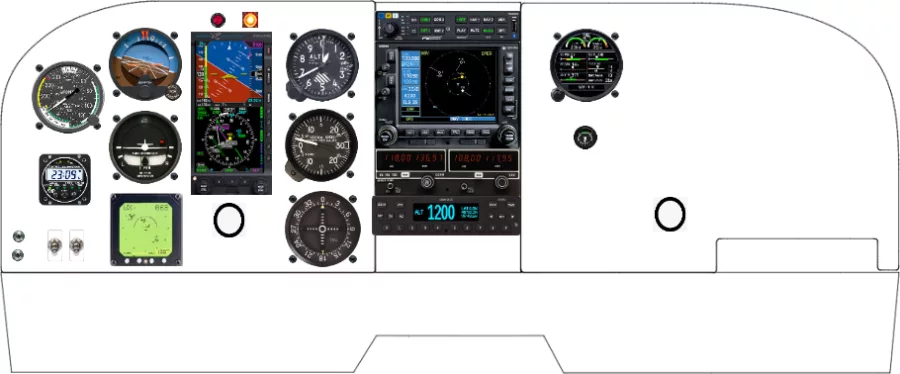

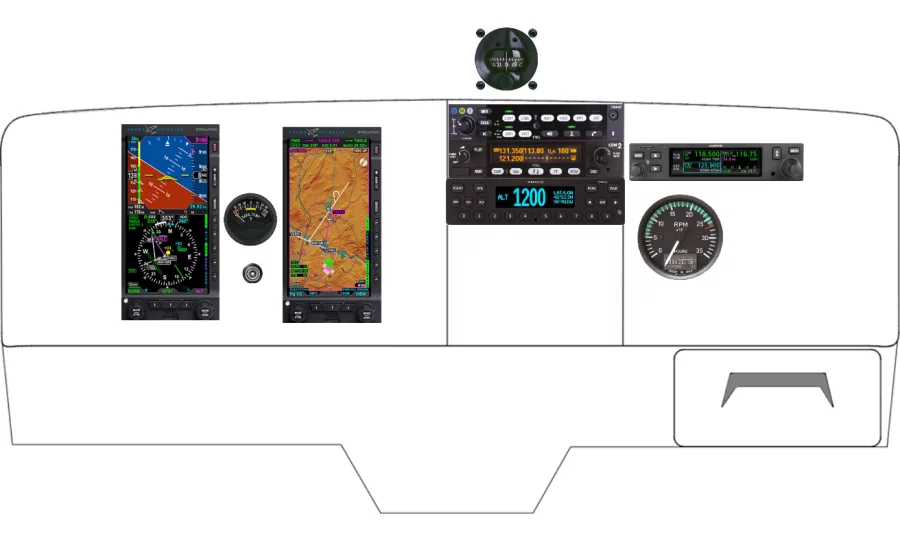

Recent panel designs with the Aspen Evolution
Exported by builders from the Panel Designer, newest first.
