Avionics system
Garmin Axis
Garmin's newest integrated flight deck for experimental aircraft. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
427 panel designs carry it
Garmin Axis in the library
The number on each is how many designs carry it.
Axis
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
Garmin AXIS
- Installation
- IFR GPS and radio in the 11.6 in. display
- Display installation kits
- System sensors (ADAHRS, magnetometer, OAT probe)
- Additional ADAHRS
- GPS antenna
- Engine and airframe interface
- GEA 110 connector kit
- Engine sensors
- Fuel pressure sensor (not in the Lycoming/Continental kits)
- RPM sensor (not in the Lycoming/Continental kits)
- GFC 500X autopilot servos
- Autopilot mode controller
- Pitot/AOA probe (GAP 26)
- Remote transponder
- Datalink (ADS-B In, SiriusXM)
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 427 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 267 | 63% |
| Garmin GMC 507 | 177 | 41% |
| Garmin GFC 500 | 160 | 37% |
| Sensa Technologies 7277 | 110 | 26% |
| ACK Technologies ELT | 68 | 16% |
| Garmin GNC 215 | 62 | 15% |
| Garmin GI 275 ADI | 61 | 14% |
| Garmin GTX 345 | 54 | 13% |

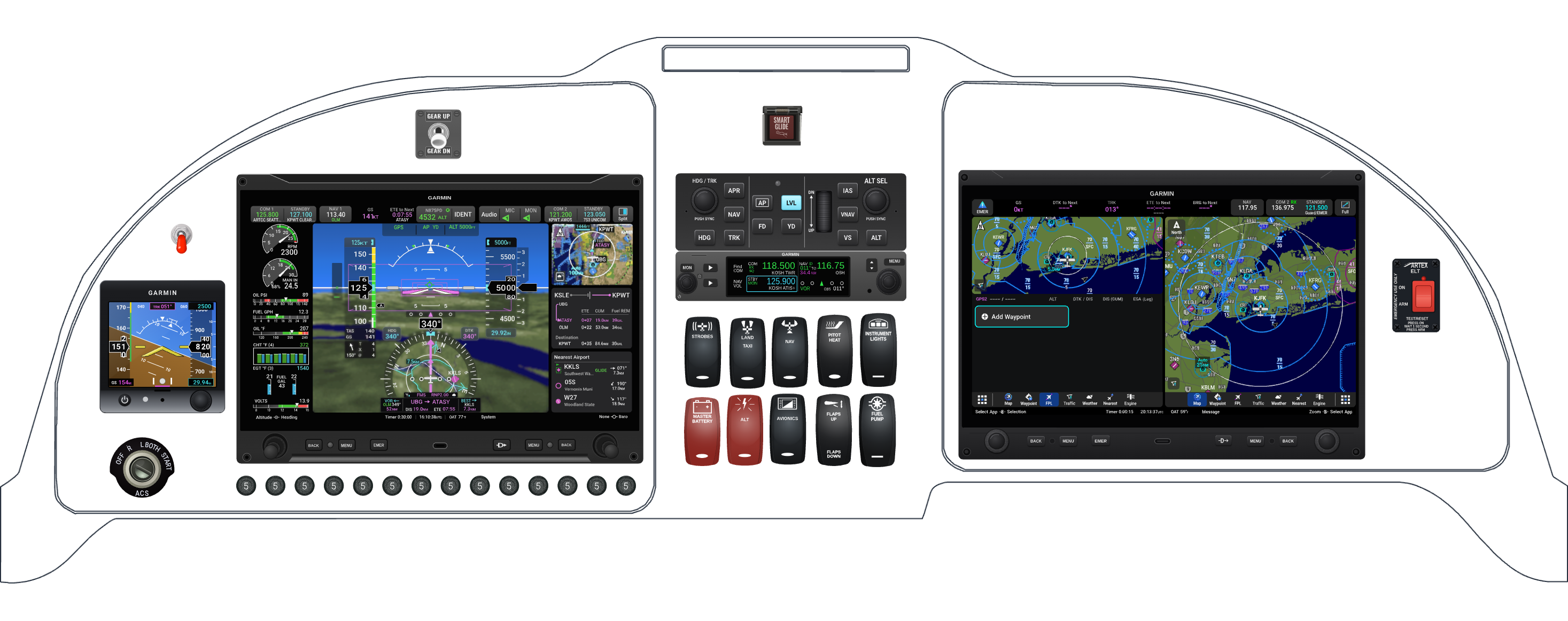

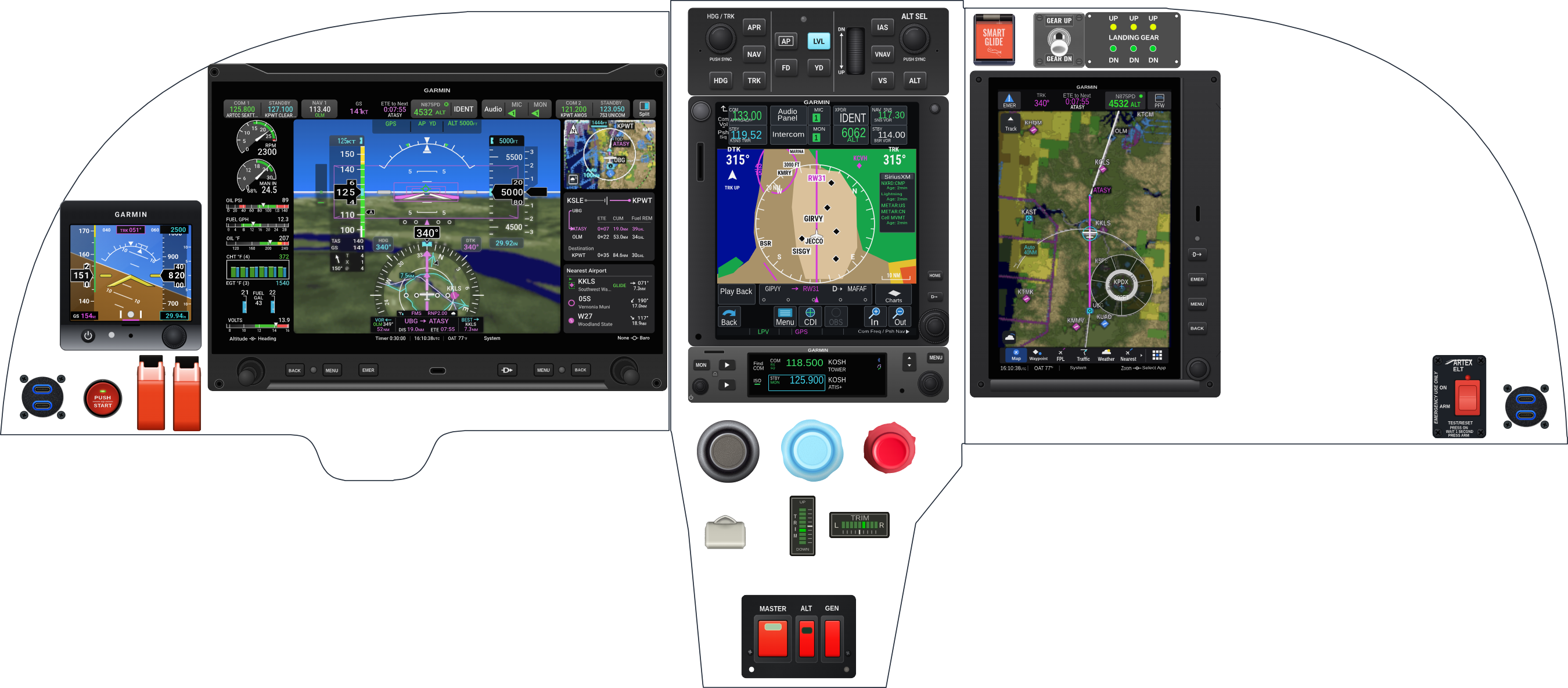

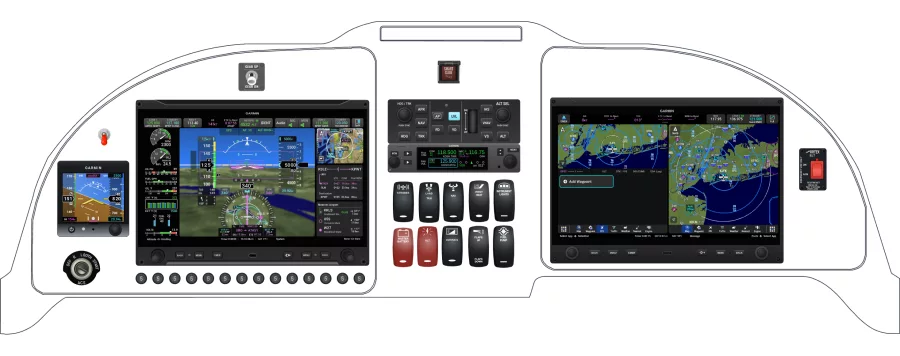

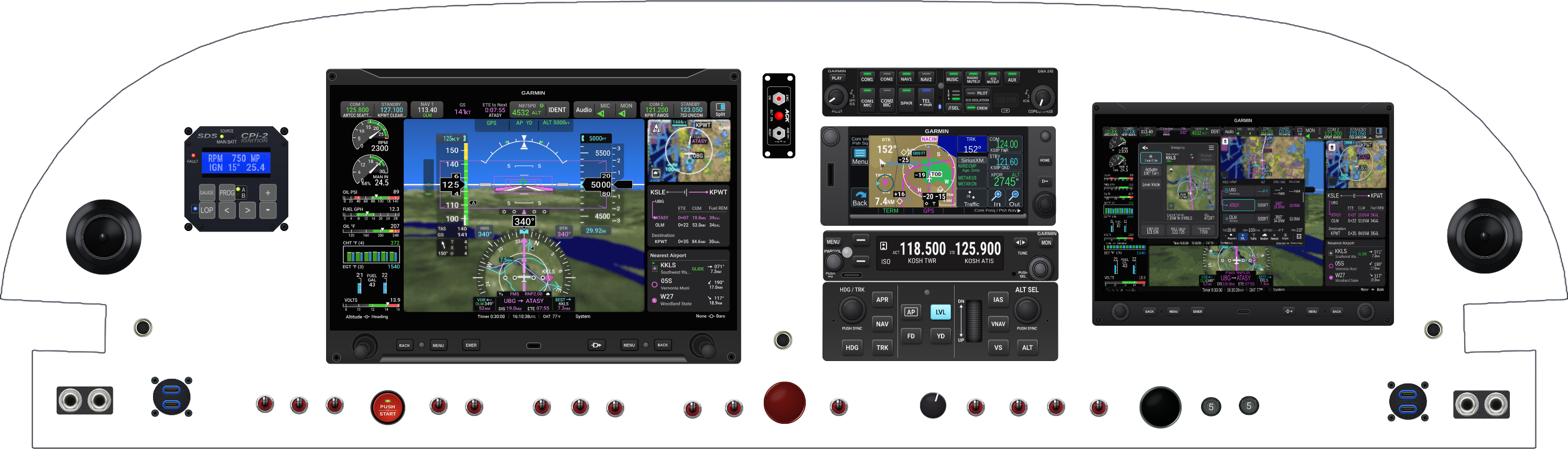

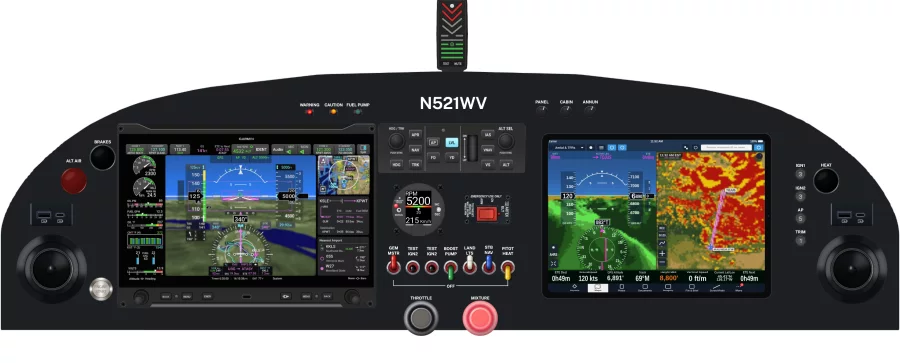

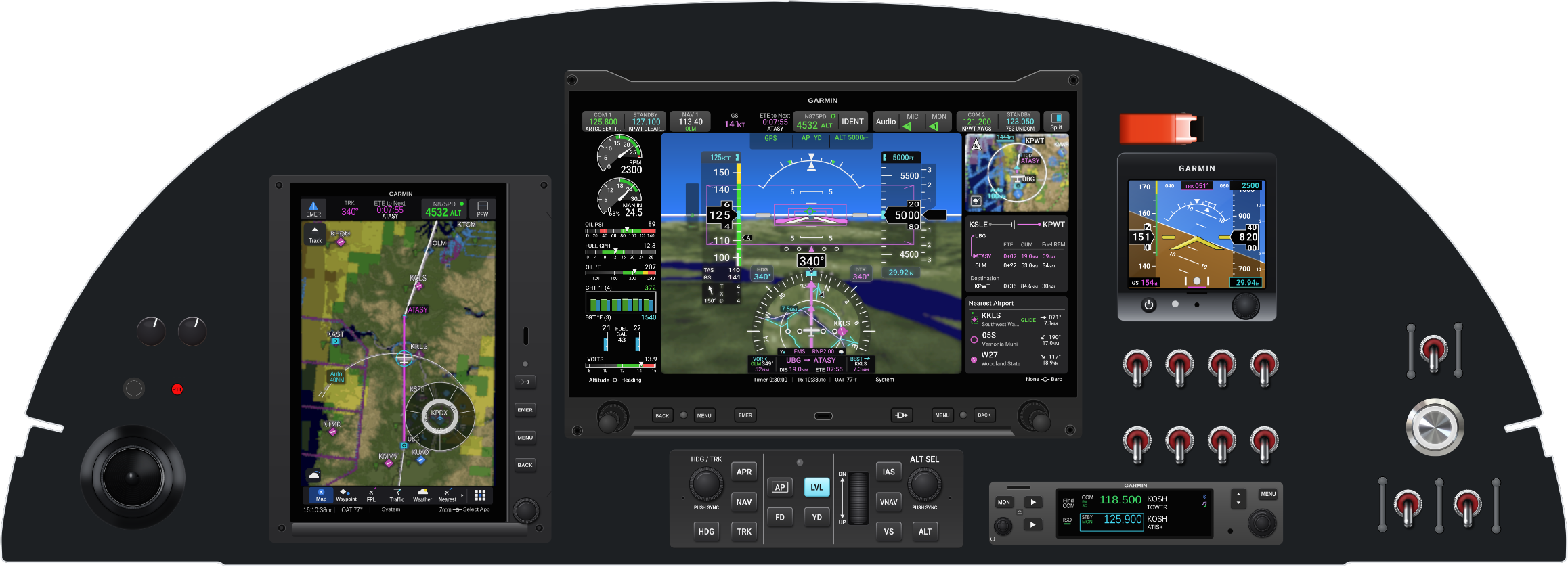

Recent panel designs with the Garmin Axis
Exported by builders from the Panel Designer, newest first.
