Van's Aircraft RV-7/9 instrument panel

The RV-7/9 panel template at the panel's dimensions, 41.43 × 10.8 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

1,422 panels laid out on these 7 templates

Start a panel layout Create an account Featured designs

Van's Aircraft RV-7/9 instrument panel template

7 templates for the RV-7/9

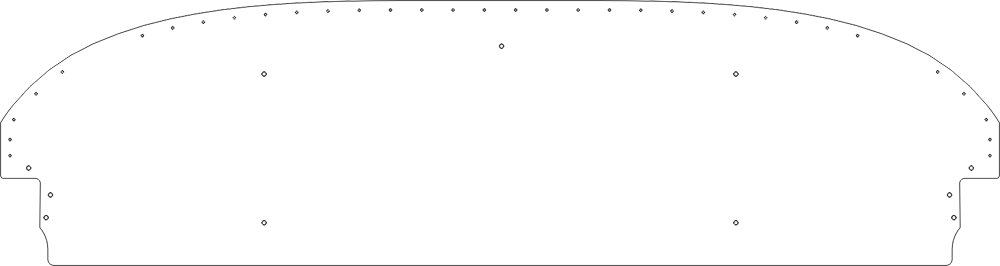

Van's Aircraft RV-7/9 panel template: With Slider

Van's Aircraft · With Slider832 designs 41.43 × 10.8 in Start a panel layout on this template

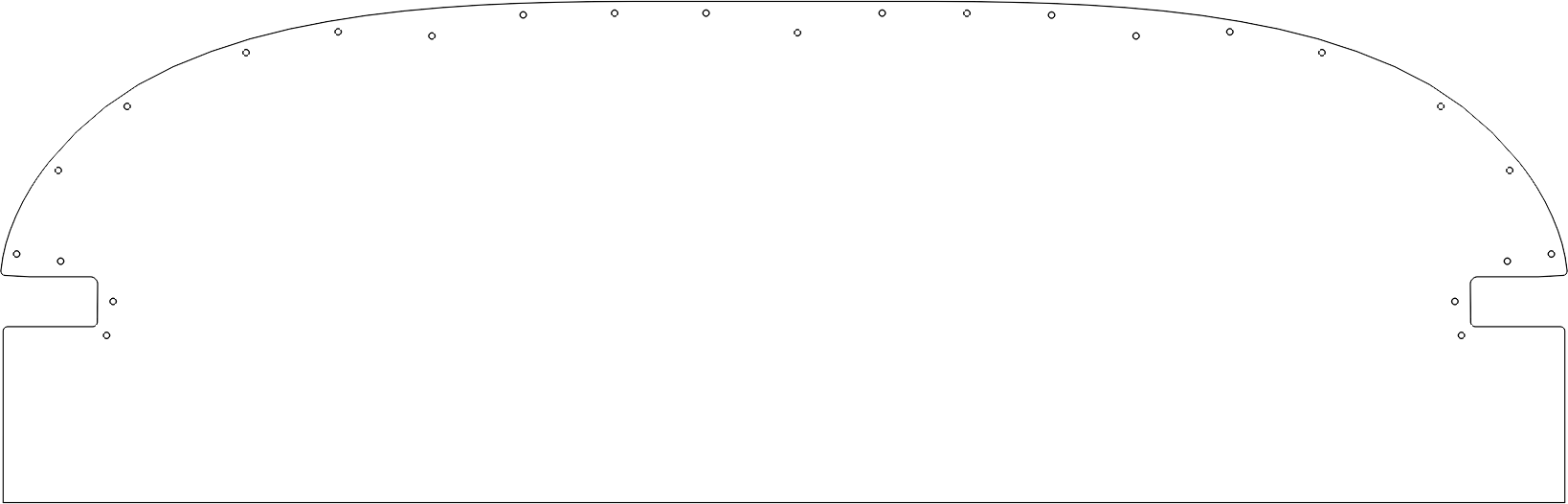

Van's Aircraft RV-7/9 panel template: Tip-up Canopy

Van's Aircraft · Tip-up Canopy545 designs 39.44 × 10.47 in Start a panel layout on this template

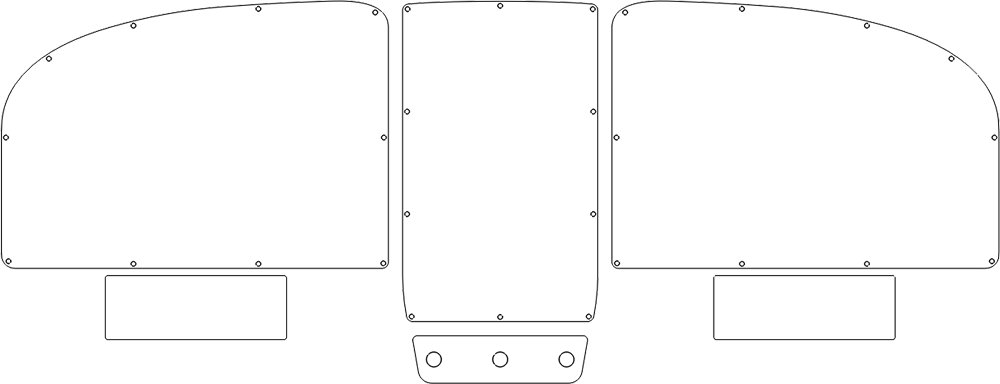

Van's Aircraft RV-7/9 panel template: Aerosport Carbon Fiber Panel

Aerosport Carbon Fiber Panel19 designs 35.73 × 13.66 in Start a panel layout on this template

Van's Aircraft RV-7/9 panel template: Extended Height

Van's Aircraft · Extended Height14 designs 41.31 × 13.25 in Start a panel layout on this template

Van's Aircraft RV-7/9 panel template: Oversize / Center

Hangar Flying · Oversize / Center7 designs 41.31 × 11.88 in Start a panel layout on this template

Van's Aircraft RV-7/9 panel template: Oversize / Offset

Hangar Flying · Oversize / Offset3 designs 41.31 × 11.88 in Start a panel layout on this template

Van's Aircraft RV-7/9 panel template: Aerosport Carbon Fiber Panel - Asymmetrical

Aerosport Carbon Fiber Panel - Asymmetrical2 designs 34.62 × 11.82 in Start a panel layout on this template

Recent RV-7/9 panel designs

Exported by builders from the Panel Designer, newest first.

All featured designs →

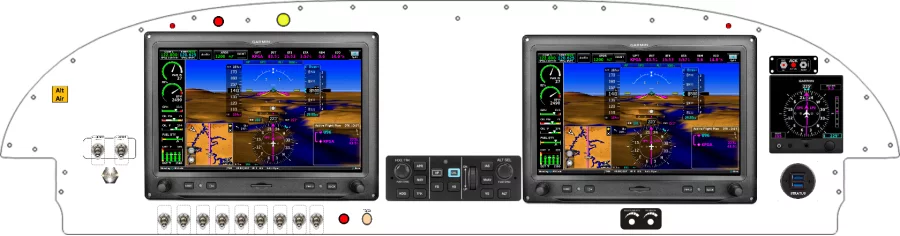

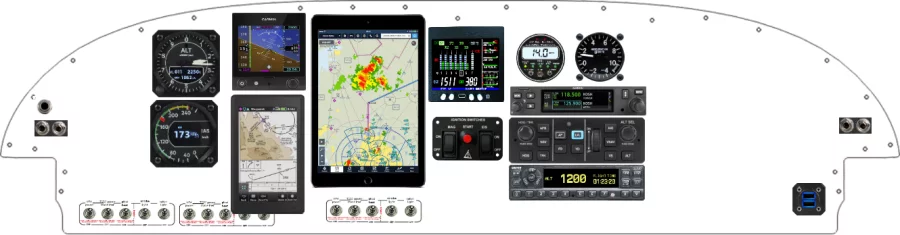

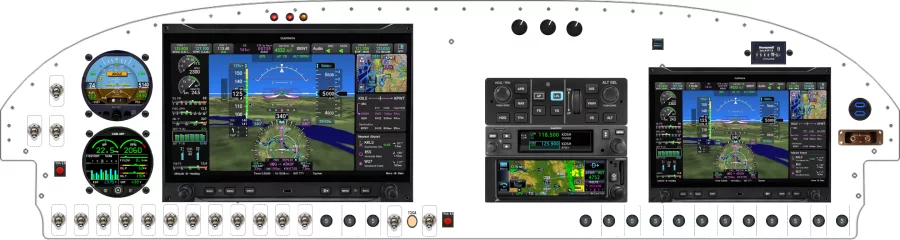

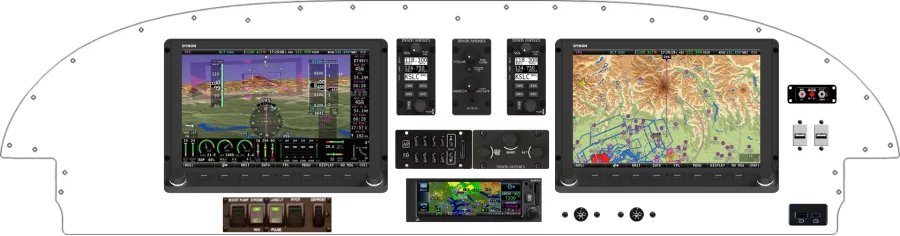

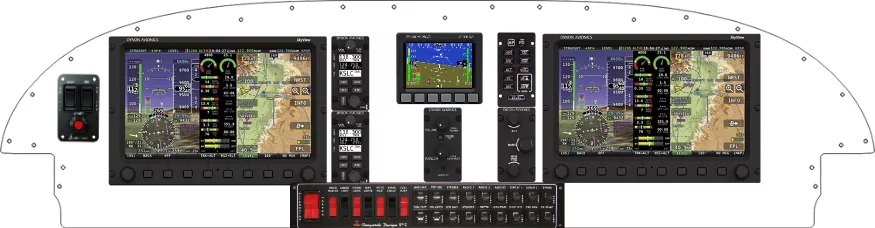

An Van's Aircraft RV-7/9 instrument panel design

RV-7/9 panelSep 2026

What builders put in an RV-7/9 panel

The equipment placed most often across the 1,422 designs on this template. Counts, never names.

Equipment	Designs	Share
Garmin International, Inc G5	484	34%
Garmin International, Inc G3X Touch	430	30%
Sensa Technologies 7277	426	30%
ACK Technologies ELT	363	26%
Garmin International, Inc GMC 507	347	24%
Dynon Avionics Autopilot Panel	342	24%
Dynon Avionics VHF COM	271	19%
Garmin International, Inc GMA 245	271	19%

Other Van's Aircraft panels

All Van's Aircraft templates →

From layout to fabricated panel

Lay out the RV-7/9 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.

Start a panel layout Create an account CAD, Cut, Paint & Label
