Van's Aircraft RV-12 instrument panel

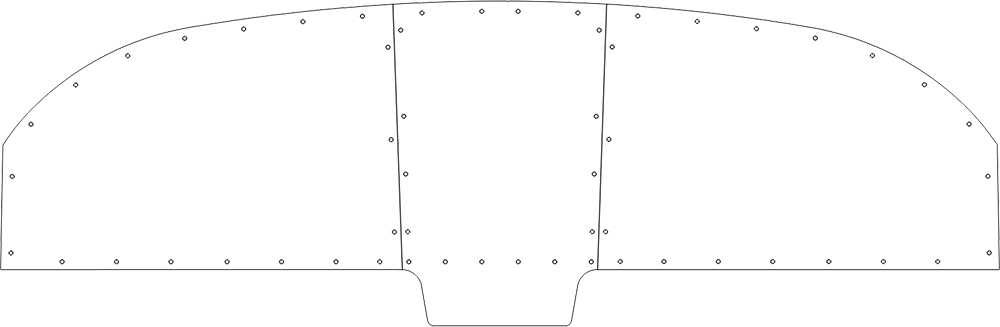

The RV-12 panel template at the panel's dimensions, 37.79 × 12.28 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
33 panels laid out on this template
Also written RV12 or RV 12.

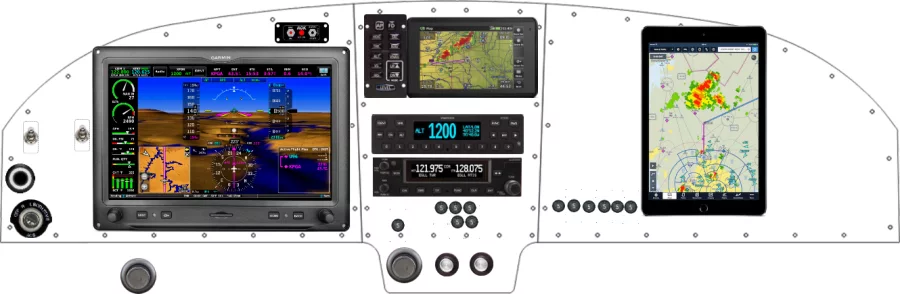

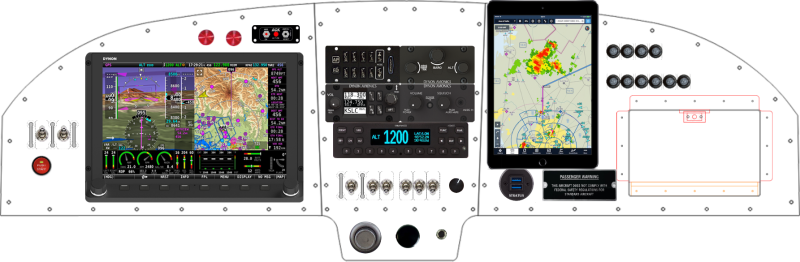

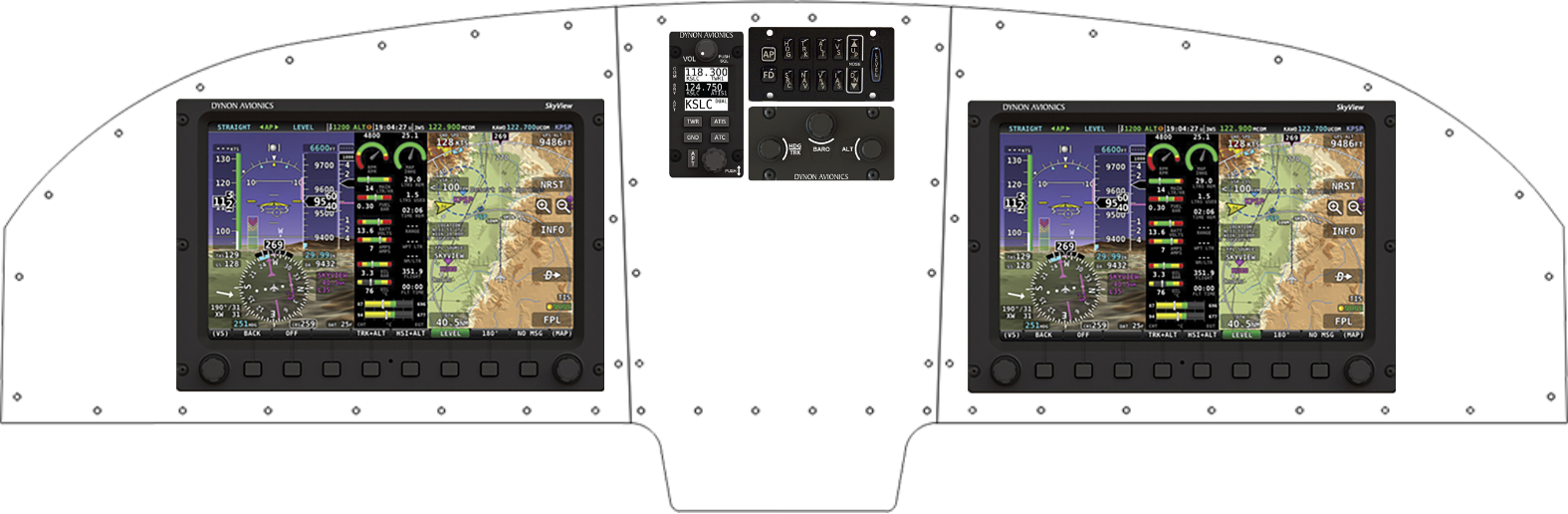

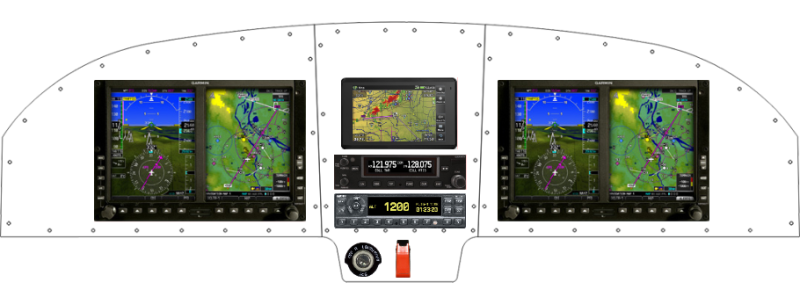

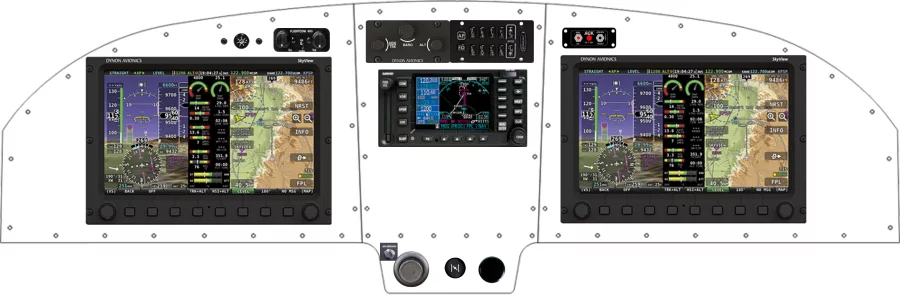

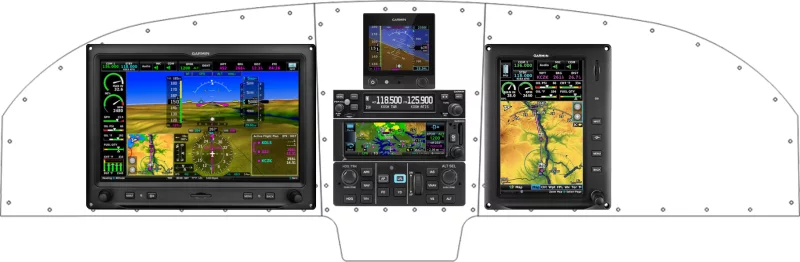

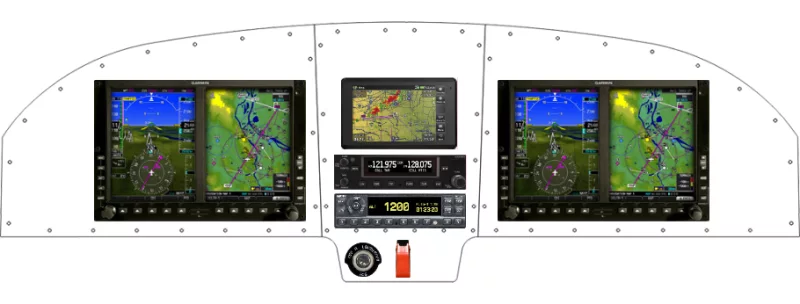

Recent RV-12 panel designs
Exported by builders from the Panel Designer, newest first.
RV-12 for sale
Selling an RV-12? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an RV-12 panel
The equipment placed most often across the 33 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 15 | 45% |
| ACK Technologies ELT | 12 | 36% |
| Dynon Avionics Dynon SkyView HDX 10" | 10 | 30% |
| Garmin International, Inc GTR 200 | 8 | 24% |
| Garmin International, Inc G3X Touch | 6 | 18% |
| Dynon Avionics VHF COM | 5 | 15% |
| Dynon Avionics SkyView Touch | 5 | 15% |
| ForeFlight iPad Mini 6 | 5 | 15% |
Other Van's Aircraft panels
From layout to fabricated panel
Lay out the RV-12 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
