Van's Aircraft RV-7/9
RV-7/9 panel with GRT Horizon HX and Sport SX
21 builders have laid out an RV-7/9 panel with the GRT Horizon HX and Sport SX in the Panel Designer, 3% of the RV-7/9 builders here. Their newest designs, what they put beside it, and the RV-7/9 template to start your own, to scale.
25 RV-7/9 designs with the GRT Horizon HX and Sport SX

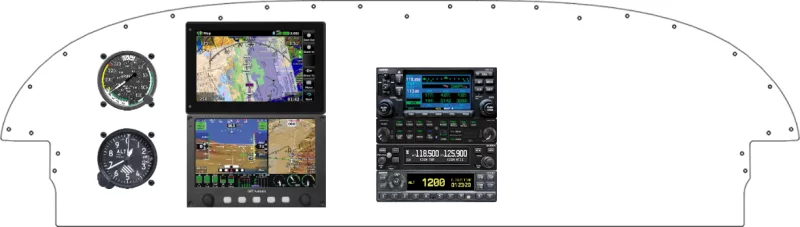

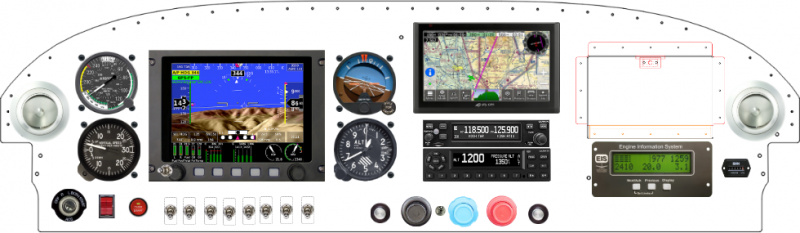

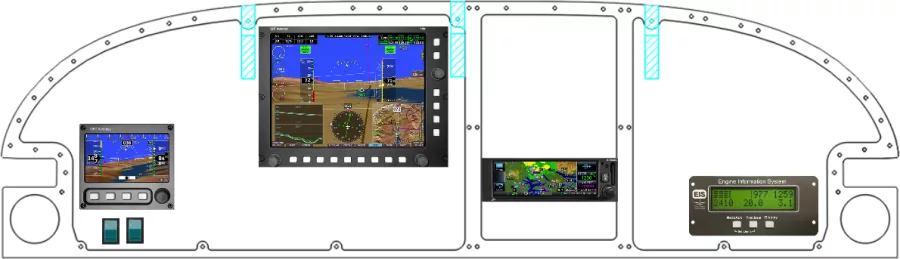

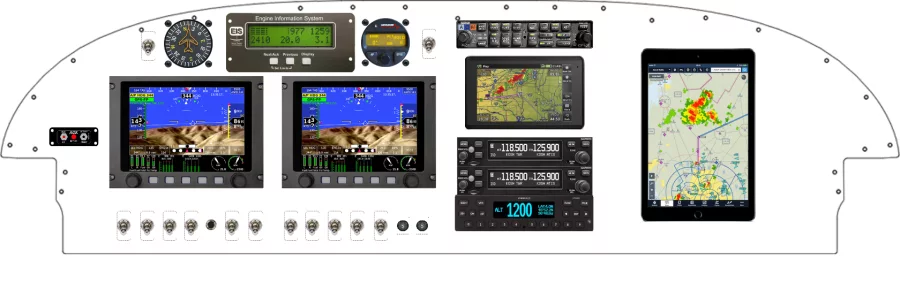

RV-7/9 panels with the GRT Horizon HX and Sport SX
Exported by builders from the Panel Designer, newest first.
What builders put beside the GRT Horizon HX and Sport SX
The equipment placed most often in the 25 RV-7/9 designs with the GRT Horizon HX and Sport SX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| GRT Avionics EIS | 13 | 52% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 12 | 48% |
| ACK Technologies ELT | 9 | 36% |
| Garmin GTX 327 | 8 | 32% |
| Sensa Technologies 7277 | 8 | 32% |
| Garmin SL30 | 7 | 28% |
| Falcon Gauge Airspeed Indicator 3" | 7 | 28% |
| Garmin GMA 245 | 6 | 24% |
| Garmin GTR 200 | 6 | 24% |
| Falcon Gauge Altimeter 3" | 6 | 24% |
Other avionics in the RV-7/9
From layout to fabricated panel
Lay out the RV-7/9 panel with the GRT Horizon HX and Sport SX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
