Van's Aircraft RV-7/9
RV-7/9 panel with Advanced Flight Systems EFIS
30 builders have laid out an RV-7/9 panel with the Advanced Flight Systems EFIS in the Panel Designer, 4% of the RV-7/9 builders here. Their newest designs, what they put beside it, and the RV-7/9 template to start your own, to scale.
48 RV-7/9 designs with the Advanced Flight Systems EFIS

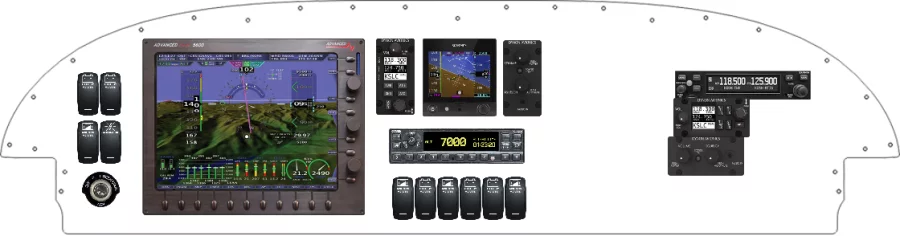

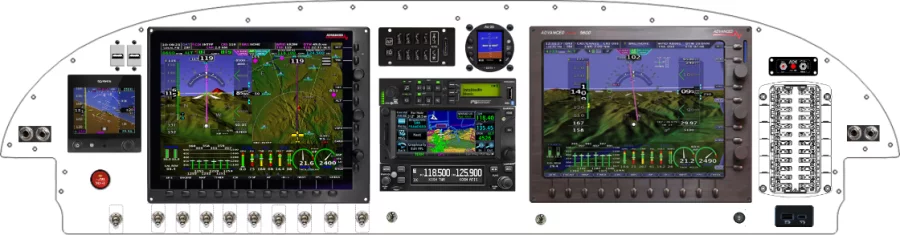

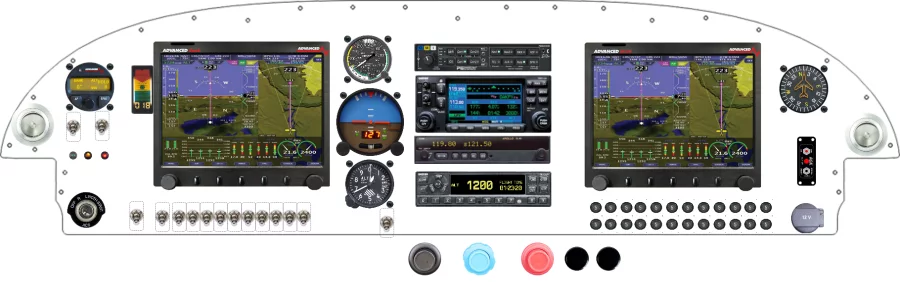

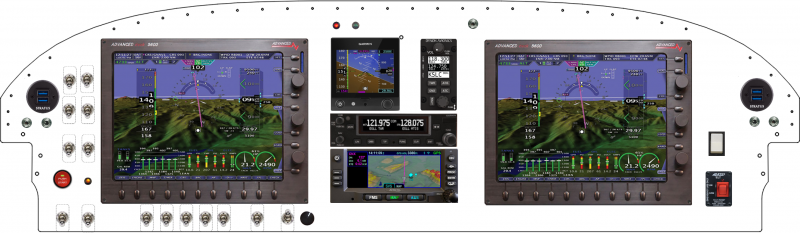

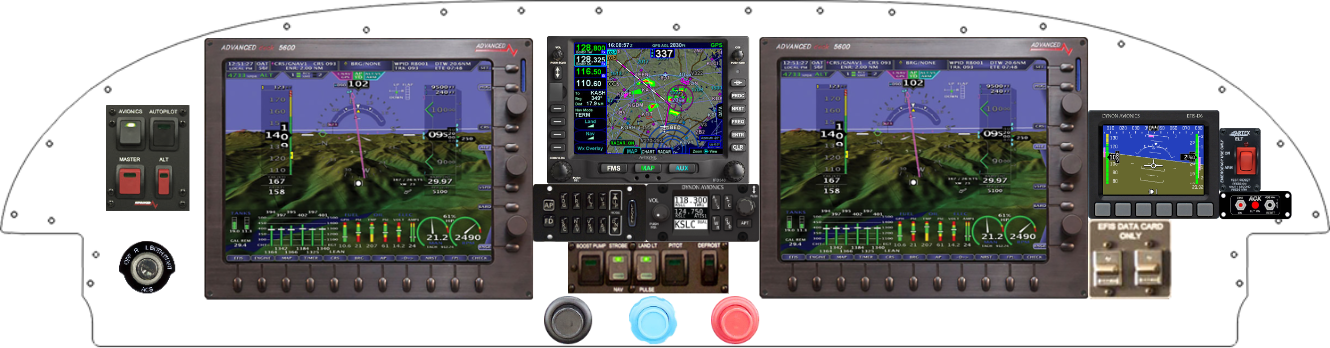

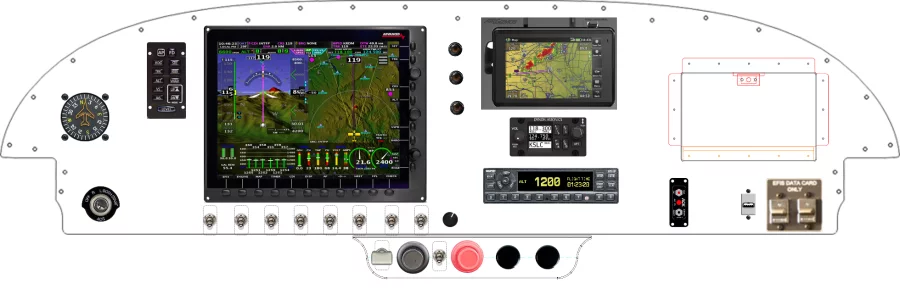

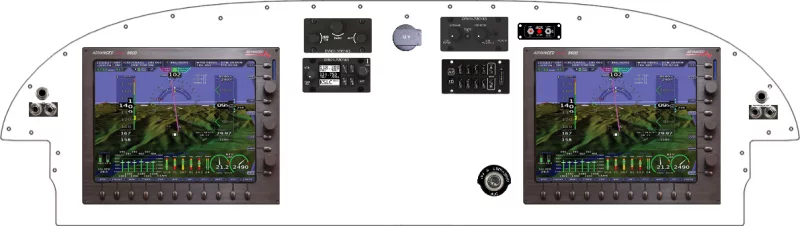

RV-7/9 panels with the Advanced Flight Systems EFIS
Exported by builders from the Panel Designer, newest first.
What builders put beside the Advanced Flight Systems EFIS
The equipment placed most often in the 48 RV-7/9 designs with the Advanced Flight Systems EFIS. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 32 | 67% |
| Dynon Avionics VHF COM | 27 | 56% |
| ACK Technologies ELT | 24 | 50% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 22 | 46% |
| Garmin G5 | 17 | 35% |
| Sensa Technologies 7277 | 16 | 33% |
| APPAREO Stratus Power USB Charger | 14 | 29% |
| Avidyne IFD440 | 12 | 25% |
| Aircraft Spruce & Specialty Push / Pull Control - Black Knob | 9 | 19% |
| Van's Aircraft Van's Map Box | 9 | 19% |
Other avionics in the RV-7/9
From layout to fabricated panel
Lay out the RV-7/9 panel with the Advanced Flight Systems EFIS in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
