Van's Aircraft RV-7/9
RV-7/9 panel with Garmin Axis
29 builders have laid out an RV-7/9 panel with the Garmin Axis in the Panel Designer, 4% of the RV-7/9 builders here. Their newest designs, what they put beside it, and the RV-7/9 template to start your own, to scale.
54 RV-7/9 designs with the Garmin Axis

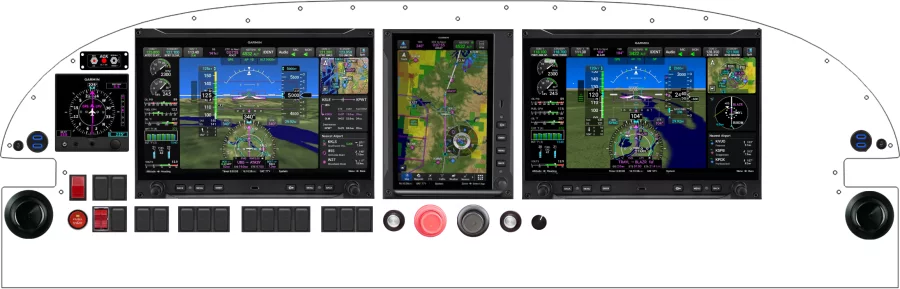

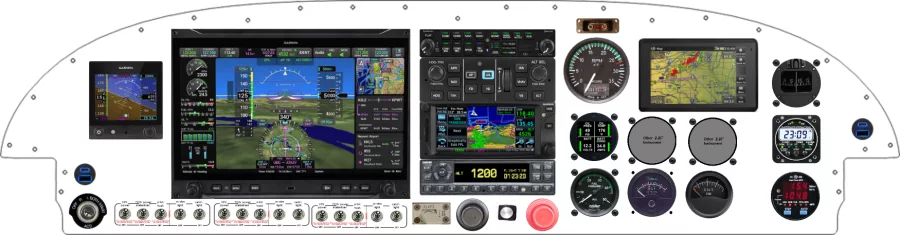

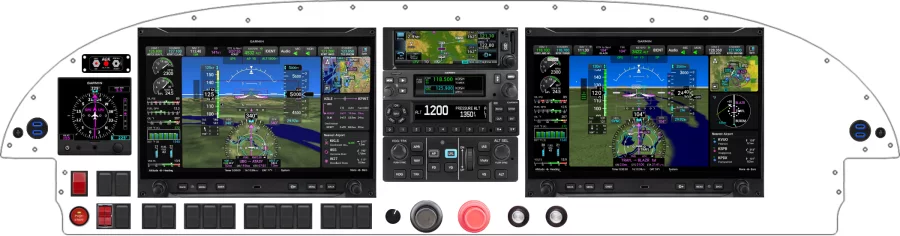

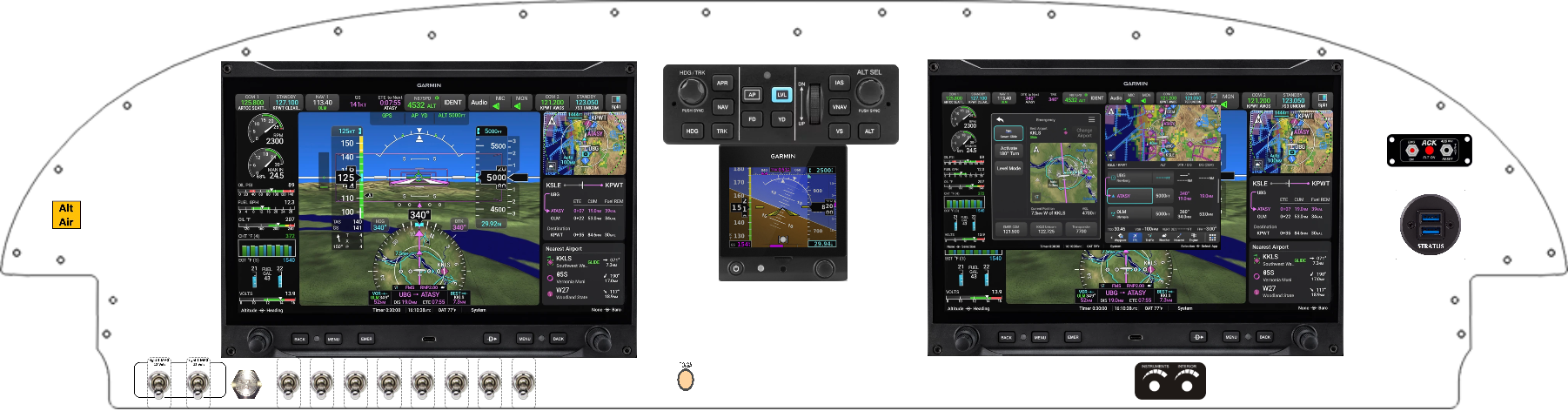

RV-7/9 panels with the Garmin Axis
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin Axis
The equipment placed most often in the 54 RV-7/9 designs with the Garmin Axis. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 39 | 72% |
| Garmin GMC 507 | 31 | 57% |
| ACK Technologies ELT | 18 | 33% |
| Sensa Technologies 7277 | 18 | 33% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 16 | 30% |
| Honeywell Sensing Rocker Switch | 14 | 26% |
| Garmin GNC 215 | 13 | 24% |
| Garmin GMA 245 | 13 | 24% |
| Garmin GFC 500 | 12 | 22% |
| Garmin GSB 15 Type C | 11 | 20% |
Other avionics in the RV-7/9
The Garmin Axis in other aircraft
From layout to fabricated panel
Lay out the RV-7/9 panel with the Garmin Axis in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
