Van's Aircraft RV-7/9
RV-7/9 panel with Dynon D100
21 builders have laid out an RV-7/9 panel with the Dynon D100 in the Panel Designer, 3% of the RV-7/9 builders here. Their newest designs, what they put beside it, and the RV-7/9 template to start your own, to scale.
33 RV-7/9 designs with the Dynon D100

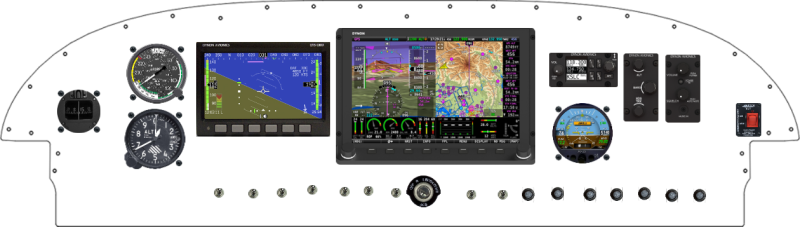

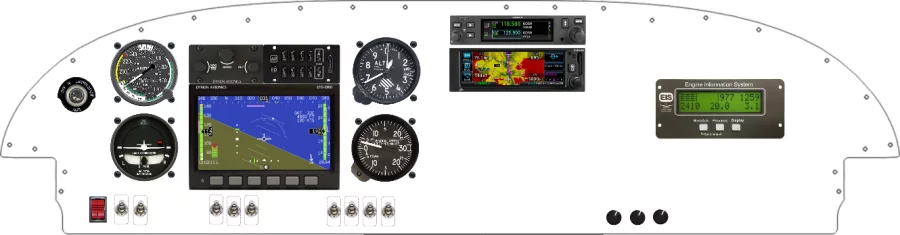

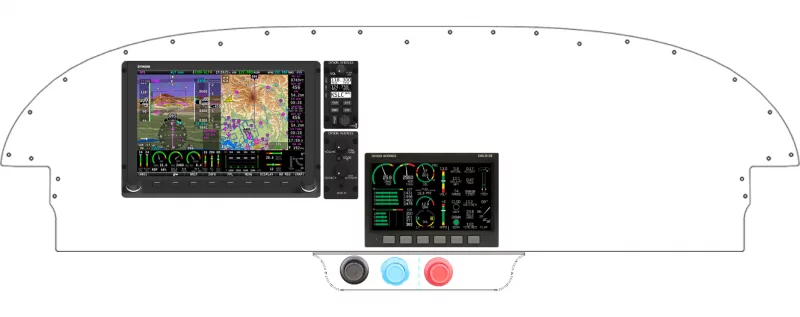

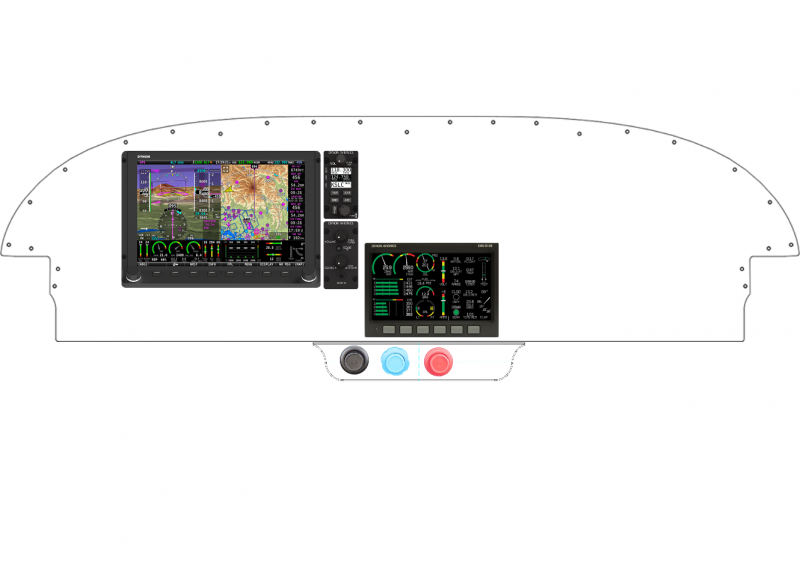

RV-7/9 panels with the Dynon D100
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon D100
The equipment placed most often in the 33 RV-7/9 designs with the Dynon D100. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Aircraft Spruce & Specialty Keyed Ignition Switch | 24 | 73% |
| ACK Technologies ELT | 14 | 42% |
| Dynon Avionics Dynon SkyView HDX 10" | 13 | 39% |
| SteinAir Air Vent | 13 | 39% |
| Dynon Avionics Autopilot Panel | 12 | 36% |
| The Ray Allen Trim Indicator | 12 | 36% |
| Falcon Gauge Airspeed Indicator 3" | 11 | 33% |
| Aircraft Spruce & Specialty Push / Pull Control - Black Knob | 11 | 33% |
| Falcon Gauge Altimeter 3" | 10 | 30% |
| Garmin GTX 327 | 9 | 27% |
Other avionics in the RV-7/9
From layout to fabricated panel
Lay out the RV-7/9 panel with the Dynon D100 in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
