Avionics system
GRT Avionics Horizon
GRT Avionics' Horizon HX, HXr and Sport flight and engine displays. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
630 panel designs carry it
GRT Avionics Horizon in the library
The number on each is how many designs carry it.
Sport EX and Horizon EX
Horizon / Sport 10.1
Horizon HX and Sport SX
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
GRT Avionics Horizon
- Display unit wiring harness kit (one for each display)
- AHRS and air data computer, with magnetometer
- Outside air temperature probe
- GPS
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 630 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| GRT Avionics EIS | 263 | 42% |
| Sensa Technologies 7277 | 214 | 34% |
| ACK Technologies ELT | 191 | 30% |
| Garmin GTX 327 | 130 | 21% |
| Garmin GTR 200 | 115 | 18% |
| ForeFlight iPad Mini 6 | 109 | 17% |
| Falcon Gauge Airspeed Indicator 3" | 102 | 16% |
| The Ray Allen Trim Indicator | 101 | 16% |

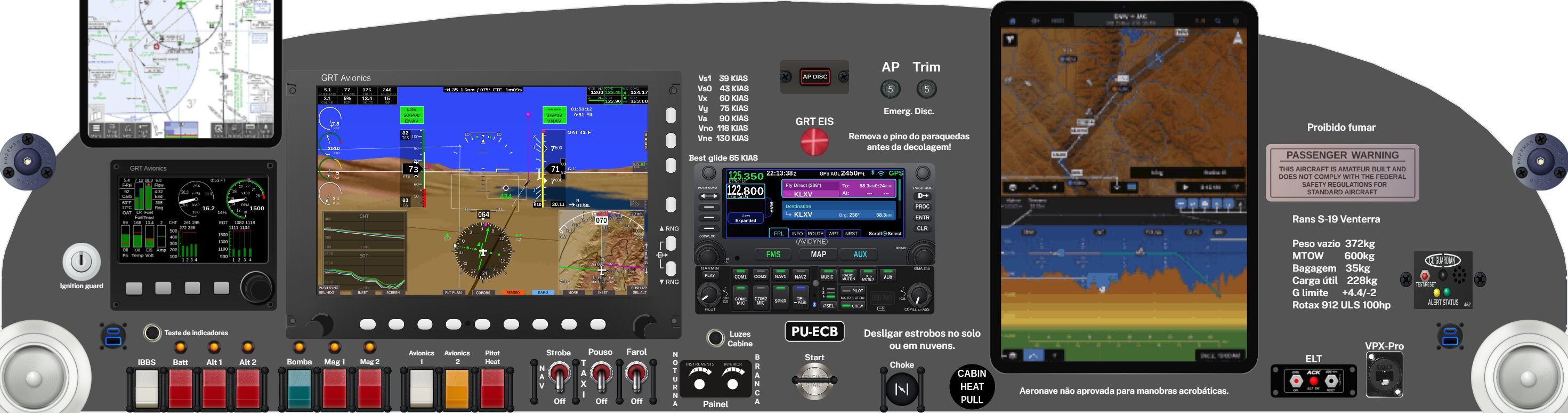

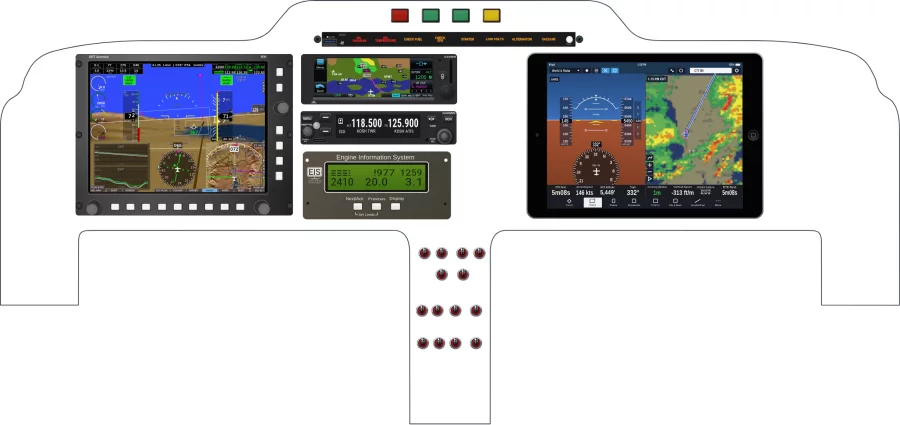

Recent panel designs with the GRT Avionics Horizon
Exported by builders from the Panel Designer, newest first.
