Avionics system
uAvionix AV-30 and AV-20
uAvionix's 3 1/8 in. and 2 1/4 in. multi-function instruments. Each piece is drawn to scale in the Panel Designer's library: place it on your aircraft's panel template, and the bill of materials lists it with its part number.
1,387 panel designs carry it
uAvionix AV-30 and AV-20 in the library
The number on each is how many designs carry it.
AV-30
AV-20
The configurator
Place one on your panel and the bill of materials works out the rest of the system from the manufacturer's installation manual, each line with its part number and the page it comes from.
uAvionix AV-30
- Optional
The aircraft it goes into most
Designs on each aircraft's panel templates that carry it.
What builders place with it
The equipment most often in the same 1,387 designs. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 598 | 43% |
| Falcon Gauge Airspeed Indicator 3" | 582 | 42% |
| Falcon Gauge Vertical Speed Indicator | 521 | 38% |
| Sensa Technologies 7277 | 433 | 31% |
| ACK Technologies ELT | 319 | 23% |
| ForeFlight iPad Mini 6 | 270 | 19% |
| Dynon Avionics Autopilot Panel | 260 | 19% |
| Dynon Avionics VHF COM | 233 | 17% |

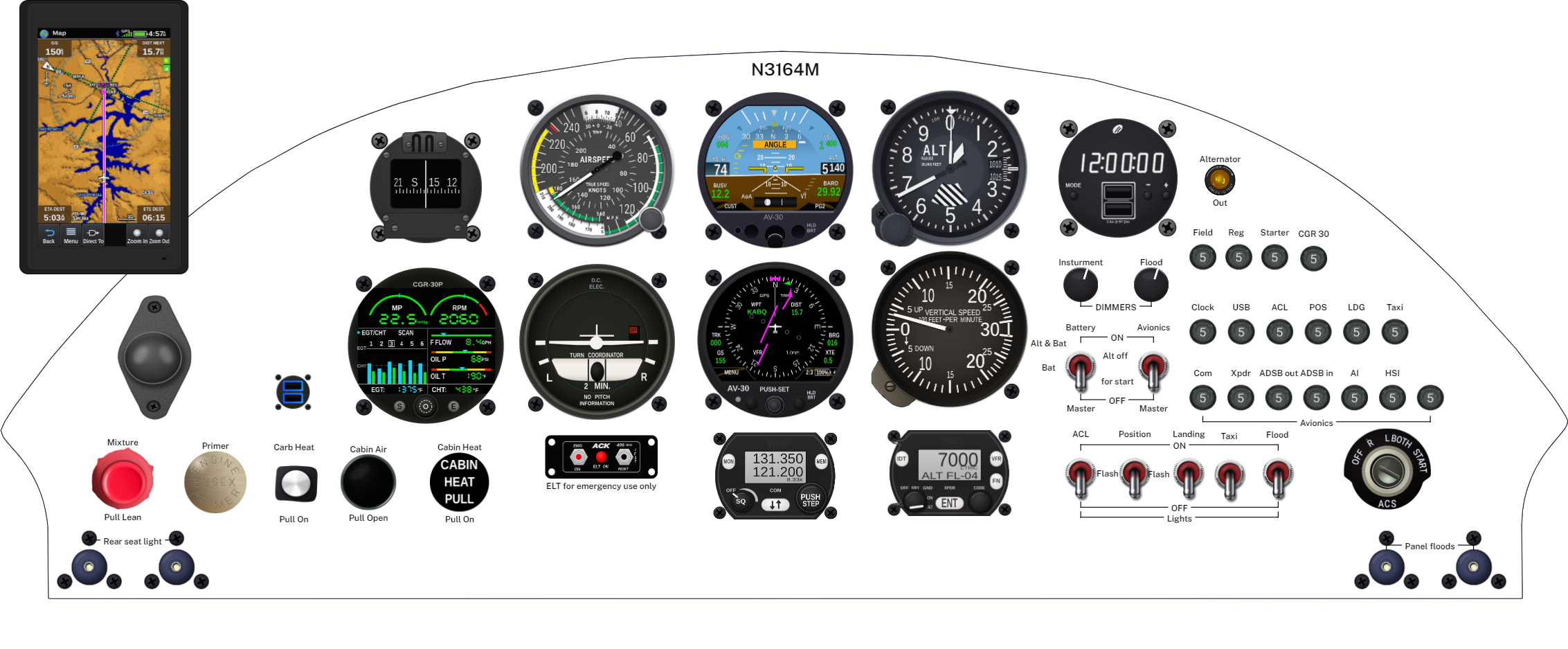

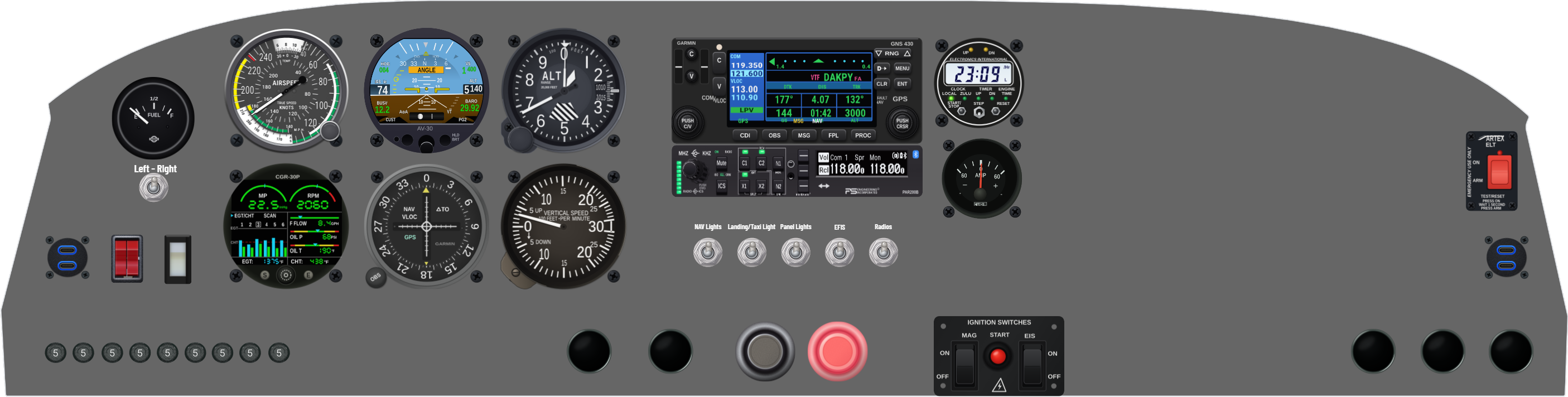

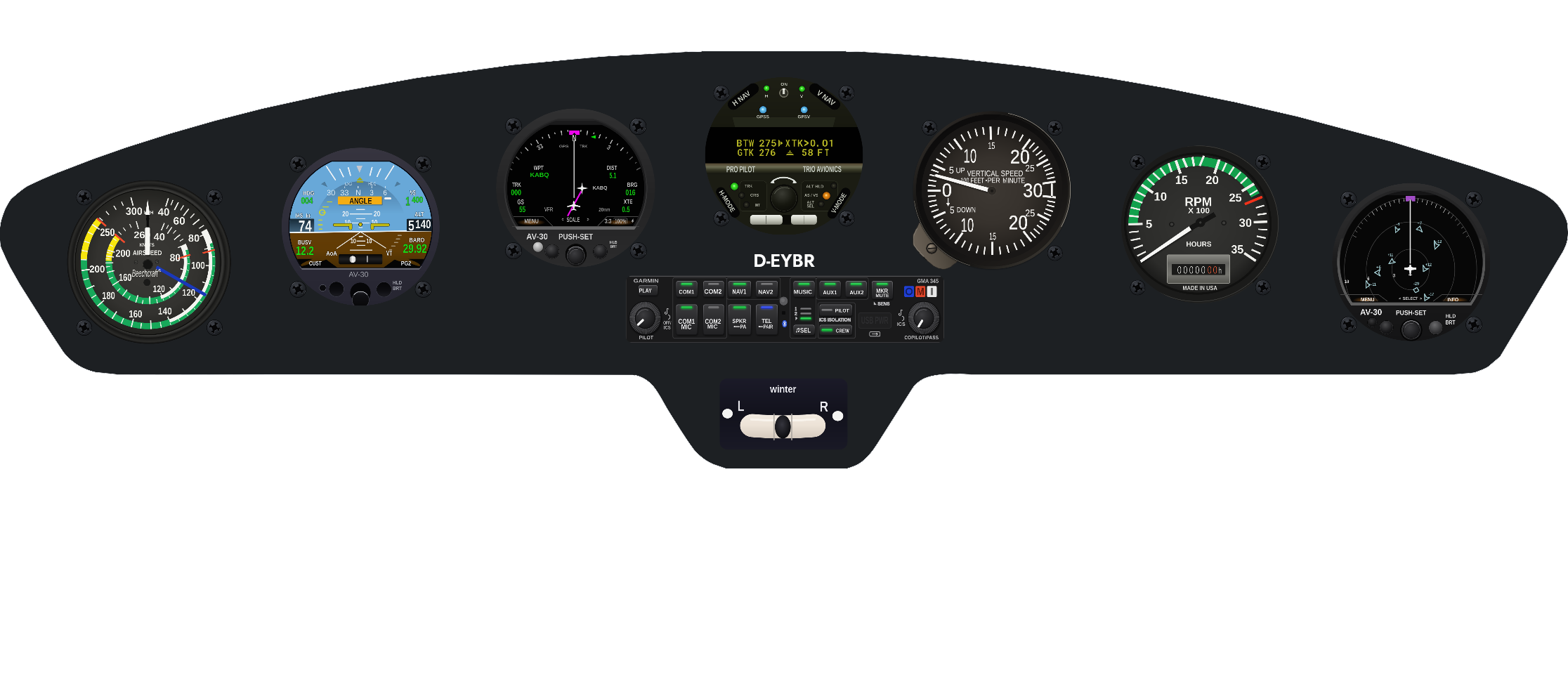

Recent panel designs with the uAvionix AV-30 and AV-20
Exported by builders from the Panel Designer, newest first.
