Kitfox Aircraft Model 5/7 instrument panel
The Model 5/7 panel template at the panel's dimensions, 36 × 10.88 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
309 panels laid out on this template

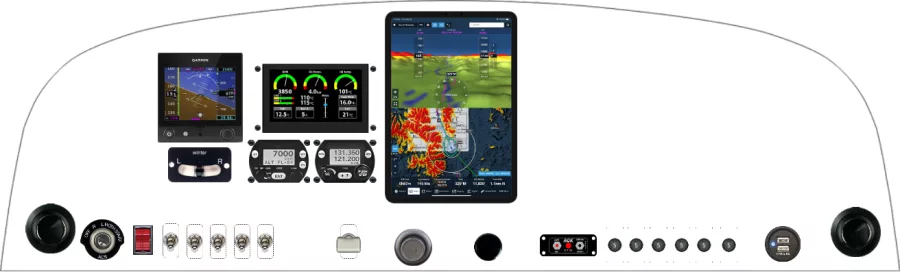

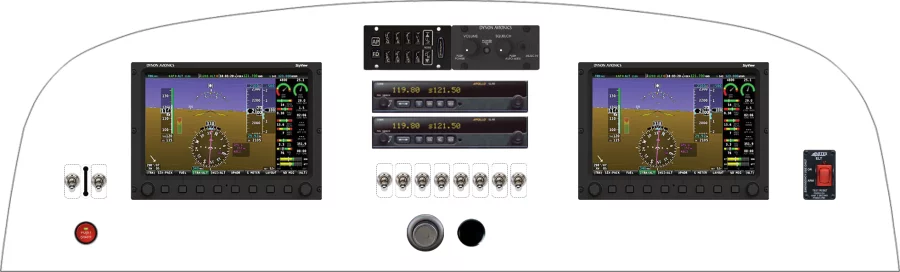

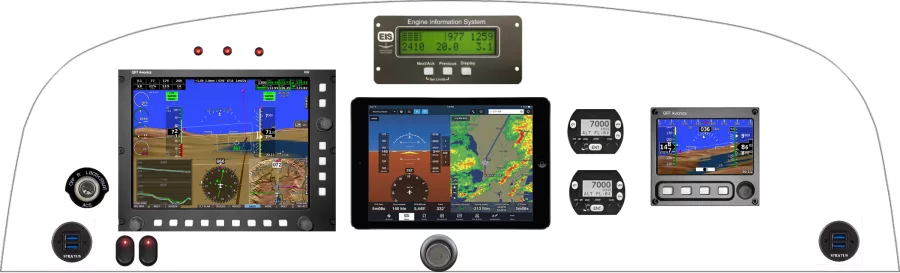

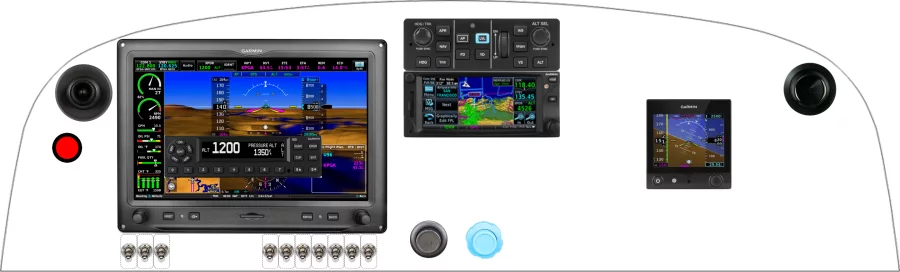

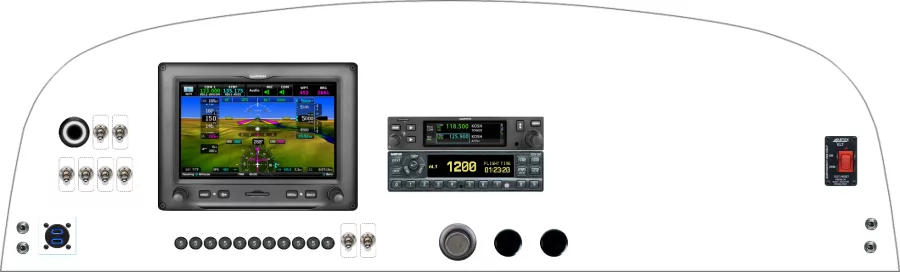

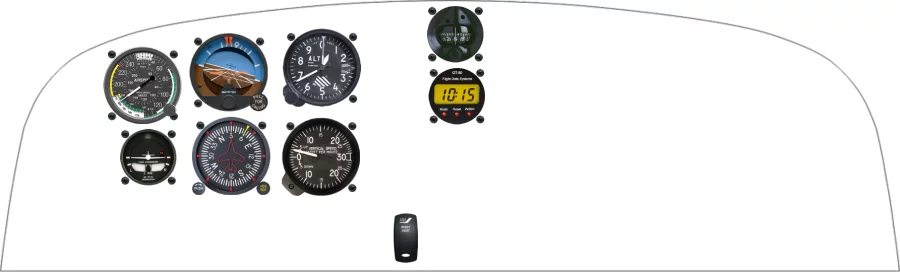

Recent Model 5/7 panel designs
Exported by builders from the Panel Designer, newest first.
Model 5/7 for sale
Selling a Model 5/7? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a Model 5/7 panel
The equipment placed most often across the 309 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G3X Touch | 107 | 35% |
| Garmin International, Inc G5 | 66 | 21% |
| Garmin International, Inc GMC 507 | 60 | 19% |
| Sensa Technologies 7277 | 50 | 16% |
| ACK Technologies ELT | 40 | 13% |
| Airmaster AC-200 | 39 | 13% |
| Garmin International, Inc GTR 200 | 39 | 13% |
| Dynon Avionics Stereo Intercom | 35 | 11% |
Model 5/7 panels by avionics system
Builders who laid out a Model 5/7 panel with each system.
Other Kitfox Aircraft panels
From layout to fabricated panel
Lay out the Model 5/7 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
