Kitfox Aircraft Model 5/7
Model 5/7 panel with Dynon SkyView HDX
21 builders have laid out a Model 5/7 panel with the Dynon SkyView HDX in the Panel Designer, 11% of the Model 5/7 builders here. Their newest designs, what they put beside it, and the Model 5/7 template to start your own, to scale.
30 Model 5/7 designs with the Dynon SkyView HDX

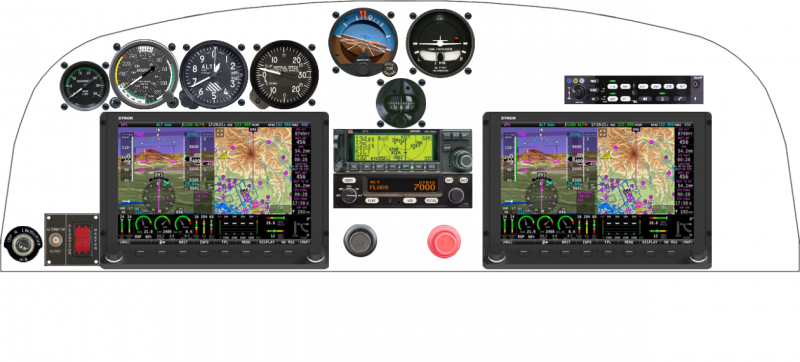

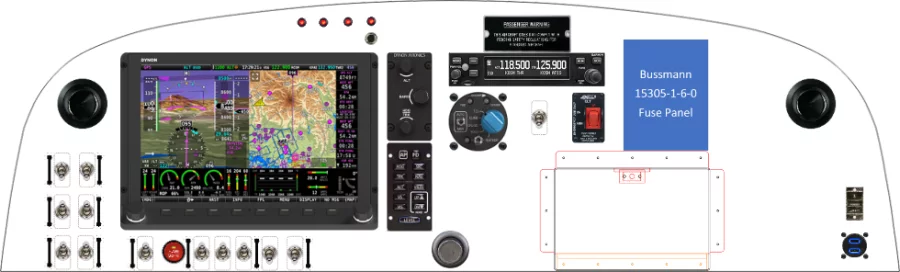

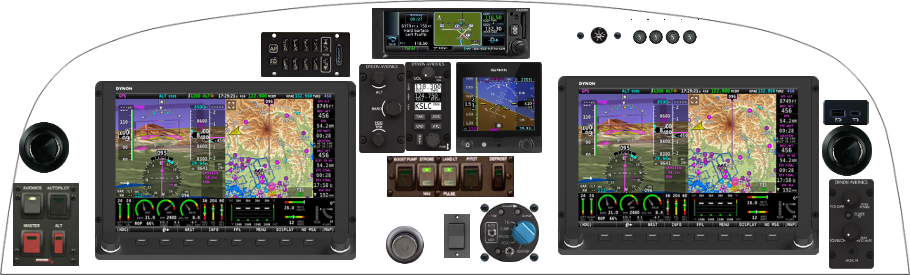

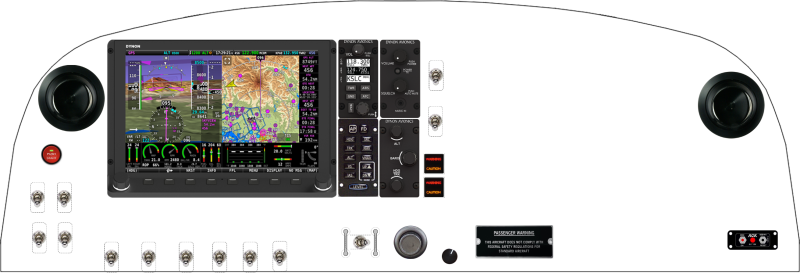

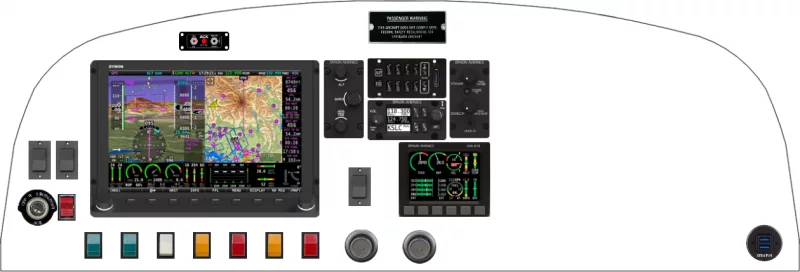

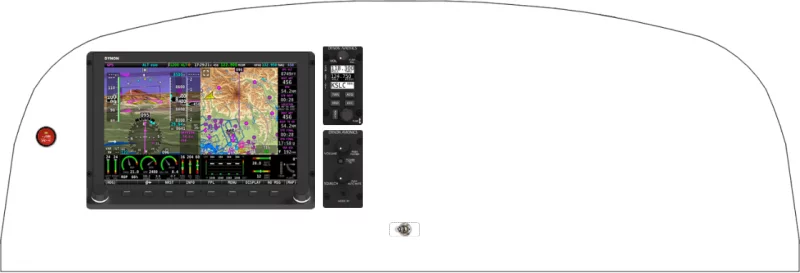

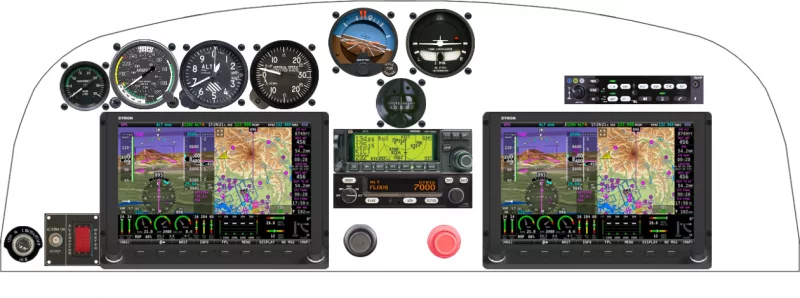

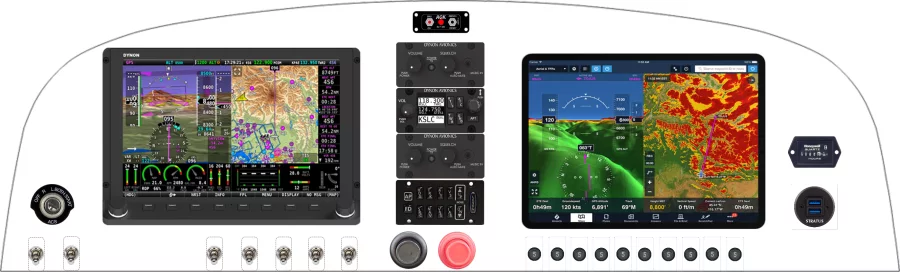

Model 5/7 panels with the Dynon SkyView HDX
Exported by builders from the Panel Designer, newest first.
What builders put beside the Dynon SkyView HDX
The equipment placed most often in the 30 Model 5/7 designs with the Dynon SkyView HDX. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Dynon Avionics Autopilot Panel | 21 | 70% |
| Dynon Avionics Knob Control | 21 | 70% |
| Dynon Avionics VHF COM | 19 | 63% |
| Dynon Avionics Stereo Intercom | 16 | 53% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 10 | 33% |
| Garmin G5 | 9 | 30% |
| Airmaster AC-200 | 9 | 30% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 7 | 23% |
| Van's Aircraft Van's Map Box | 6 | 20% |
| ACK Technologies ELT | 5 | 17% |
Other avionics in the Model 5/7
The Dynon SkyView HDX in other aircraft
- Van's Aircraft RV-7/9 176
- Van's Aircraft RV-8 117
- Van's Aircraft RV-6 65
- Van's Aircraft RV-14 64
- Van's Aircraft RV-10 62
- Piper Aircraft PA-28 55
- RANS Aircraft S-20 / S-21 44
- Cessna 182P, Q, R, R182, TR182 43
- Zenith Aircraft Company STOL CH 750 37
- Van's Aircraft RV-4 31
- Cessna 172 28
- Zenith Aircraft Company CH 750 Cruzer 25
From layout to fabricated panel
Lay out the Model 5/7 panel with the Dynon SkyView HDX in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
