North American Rockwell 112 instrument panel

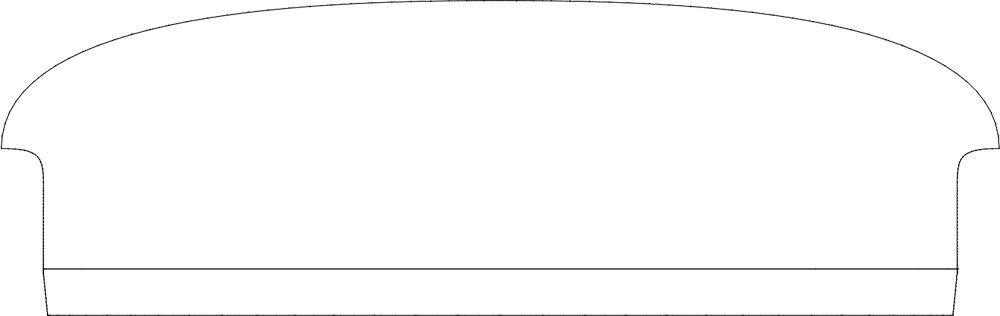

The 112 panel template at the panel's dimensions, 49.75 × 15.76 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

46 panels laid out on this template

North American Rockwell 112 instrument panel template

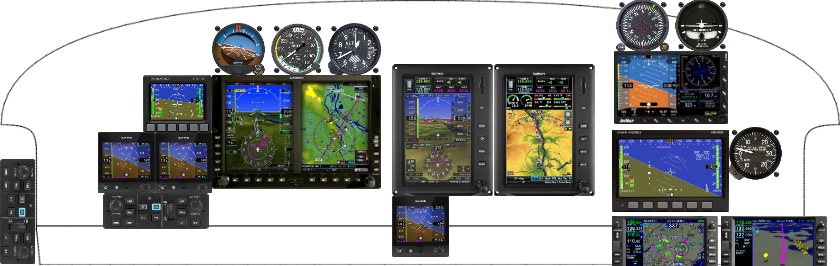

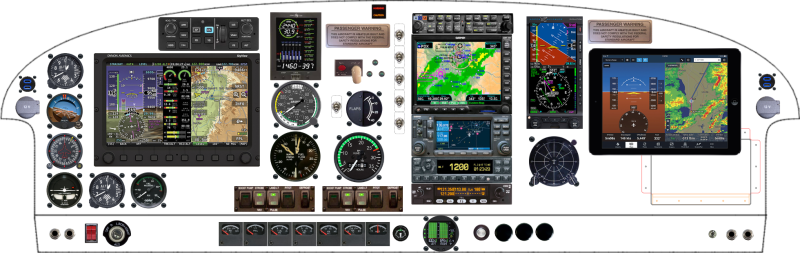

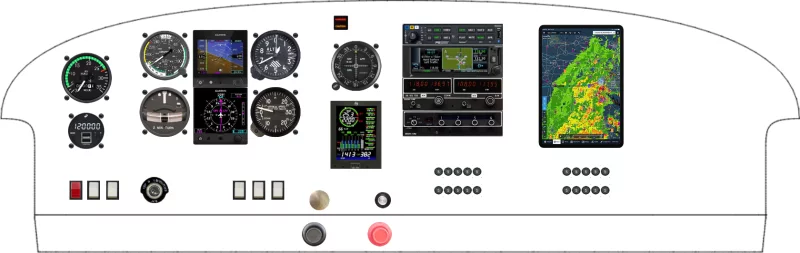

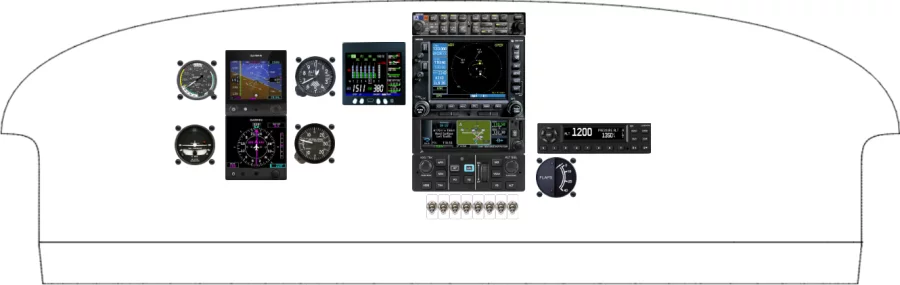

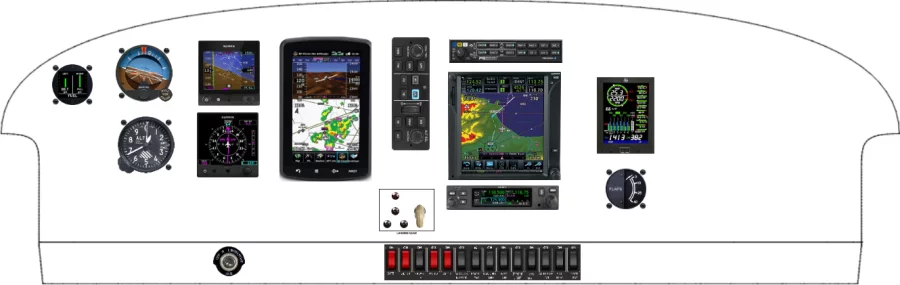

Recent 112 panel designs

Exported by builders from the Panel Designer, newest first.

All featured designs →

Selling a 112? List it on the Hangar Flying Marketplace, where builders and owners look.

What builders put in a 112 panel

The equipment placed most often across the 46 designs on this template. Counts, never names.

EquipmentDesignsShare
Garmin International, Inc G52554%
Garmin International, Inc GFC 5001941%
Garmin International, Inc GNC 2151635%
Garmin International, Inc G3X Touch1430%
Garmin International, Inc GMA 3451226%
Aero Safety Systems AH5011124%
UMA Instruments N092 Flap Position1124%
Falcon Gauge Vertical Speed Indicator1022%
