North American Rockwell Shrike Commander 500 instrument panel

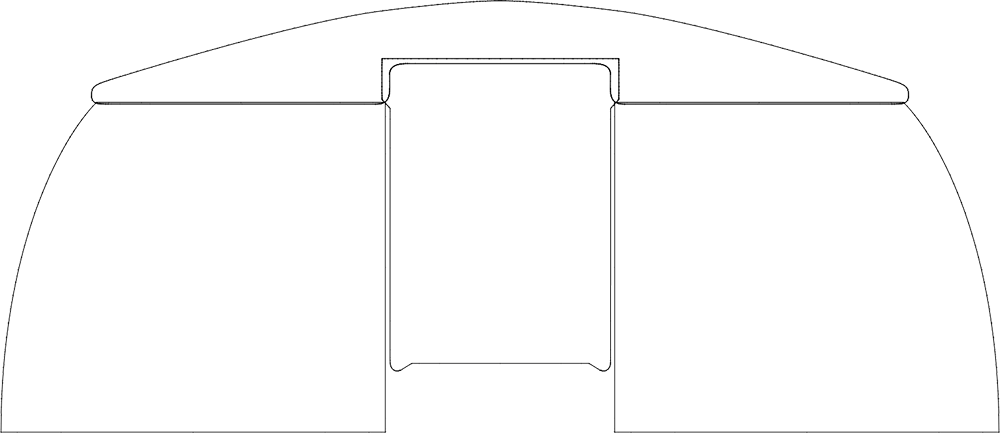

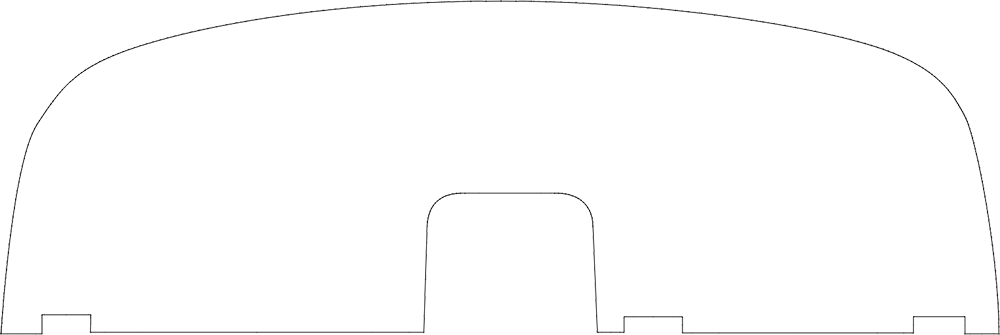

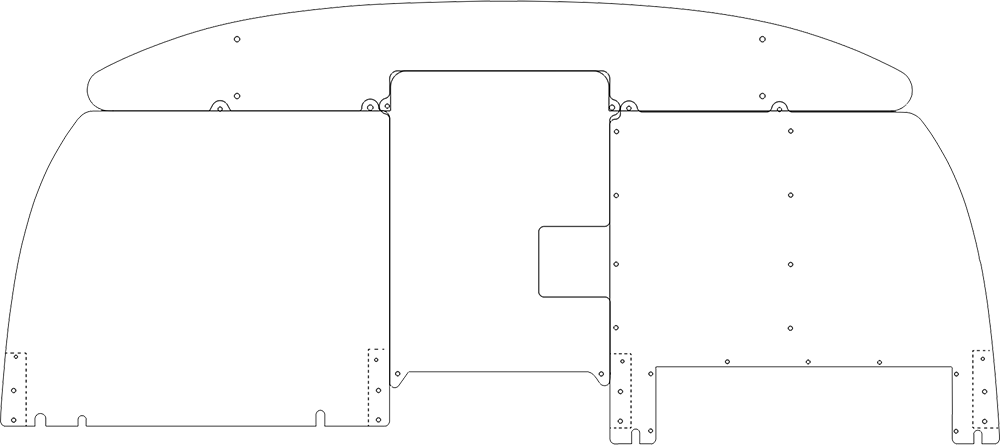

The Shrike Commander 500 panel template at the panel's dimensions, 46.06 × 20.81 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
12 panels laid out on these 3 templates
3 templates for the Shrike Commander 500
Recent Shrike Commander 500 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Shrike Commander 500 panel
The equipment placed most often across the 12 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Attitude Indicator | 4 | 33% |
| Garmin International, Inc GTN 750 | 4 | 33% |
| UMA Instruments N092 Flap Position | 4 | 33% |
| Aspen Avionics, Inc Evolution 1000 Pro Max PFD | 4 | 33% |
| UMA Instruments N04214M2K0P000 Electronic Hydraulic Pressure | 4 | 33% |
| VDO Instruments Hourmeter | 4 | 33% |
| Bennett Avionics 3M WX-10 Stormscope | 4 | 33% |
| Dynon Avionics VHF COM | 4 | 33% |
