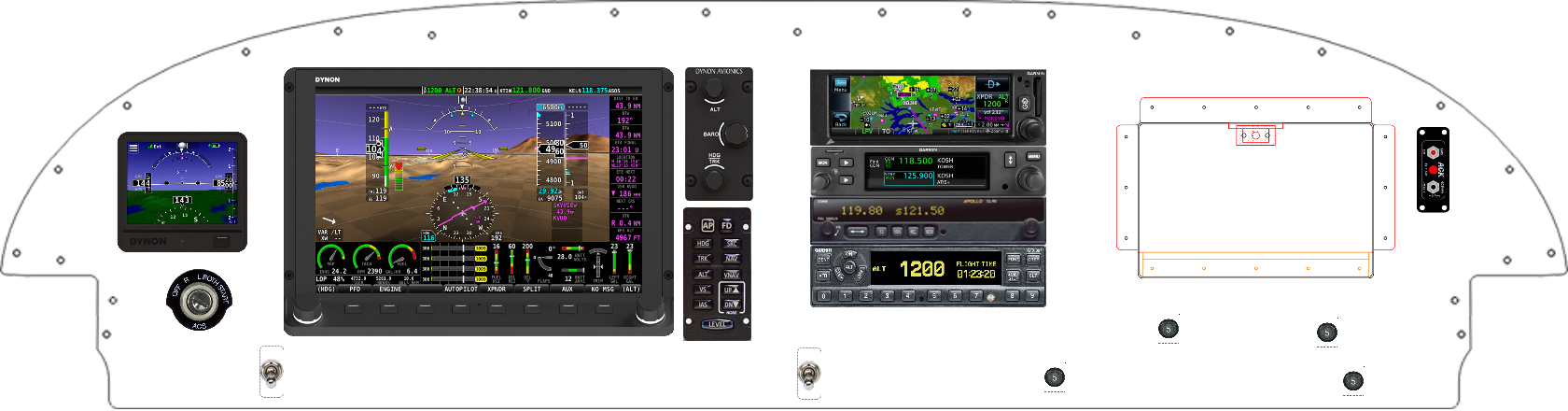

Zenith STOL CH750: Playing around with some Garmin cutouts I had laying around BVD
Hours:  2.00
Mar 05, 2021

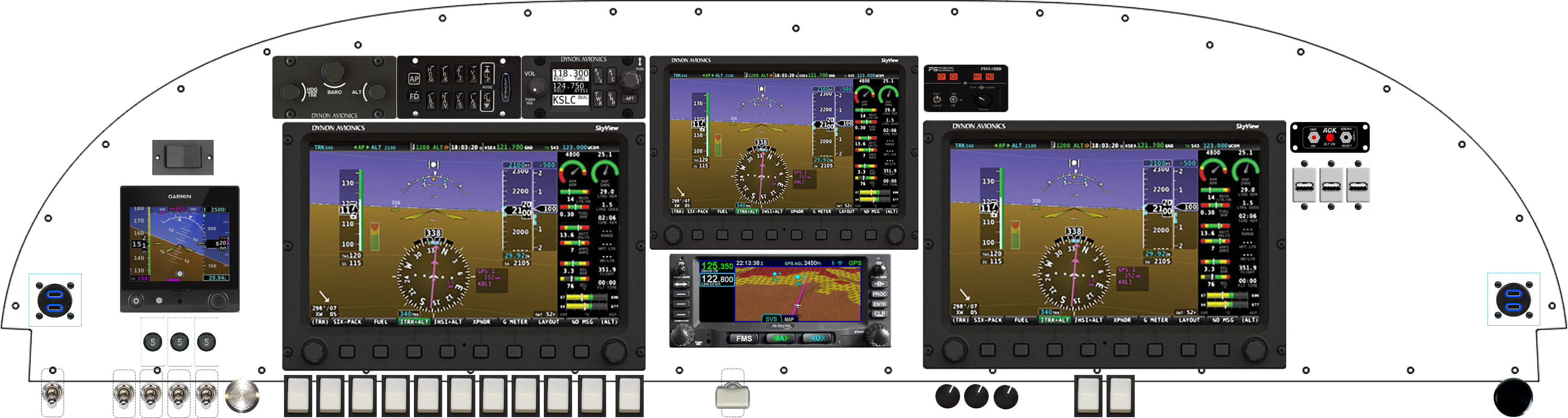

I had some Gamin G3X cutouts lying around from a mockup I did for another builder and taped them to the panel to see what they looked like.

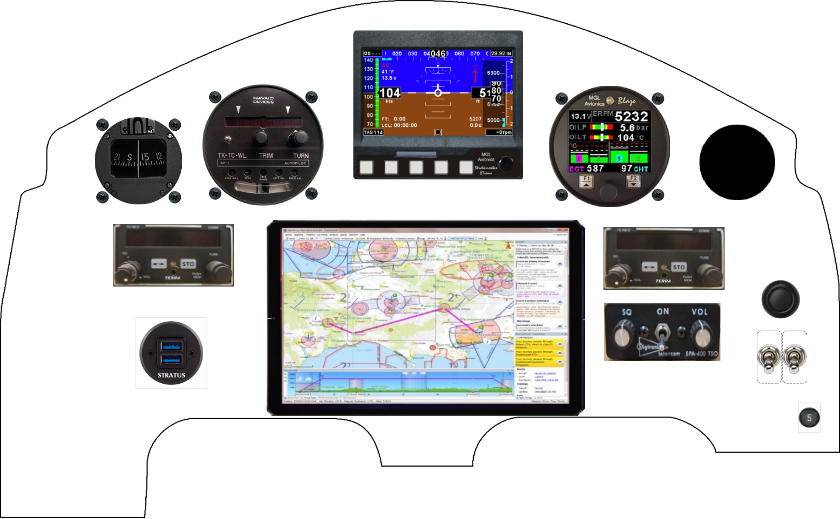

Zenith STOL CH750: Latest Panel Design BVD
Hours:  4.00
Apr 03, 2022

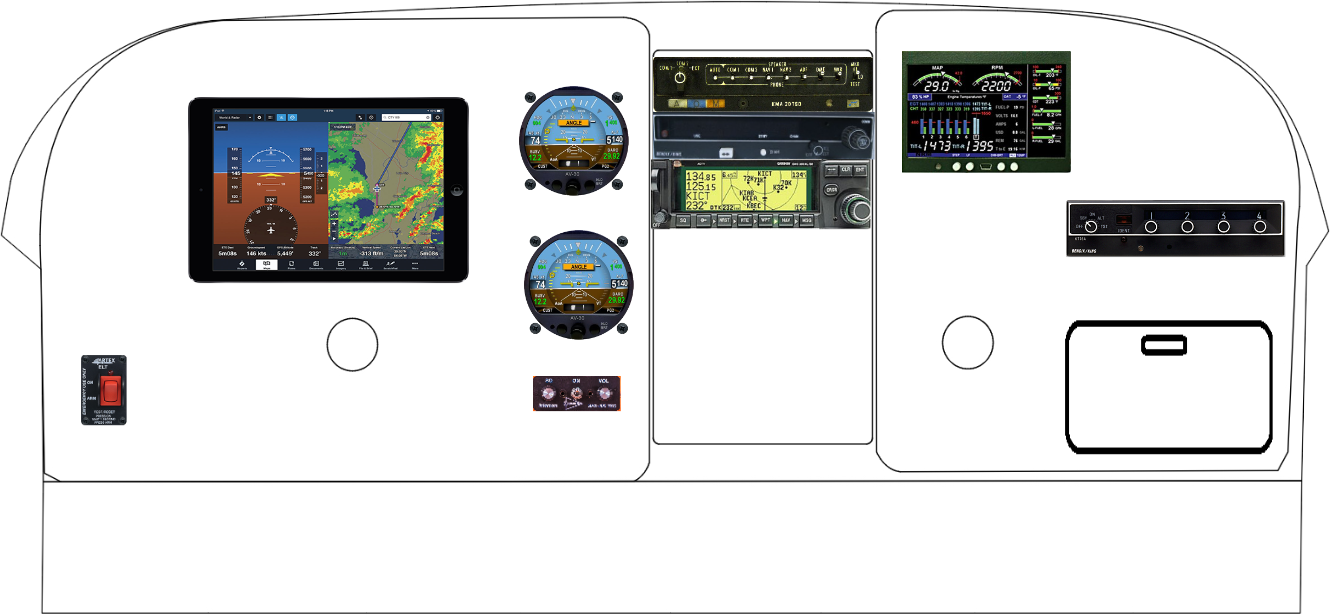

I think I've decided on using the Levil 3AW w/iPad Pro 12.9 and GRT EIS as my main avionics suite. Along with the TQ radios and analog LRI setup, I should have way more than I'll ever need in this STOL toy.

Let me know what you all think!

Zenith STOL CH750: Instrument panel planning BVD
Hours:  4.00
Mar 05, 2021

More panel planning... I'm planning on most of the switches and all the breakers going on the top portion of the center console, along with the fuel selector switch.

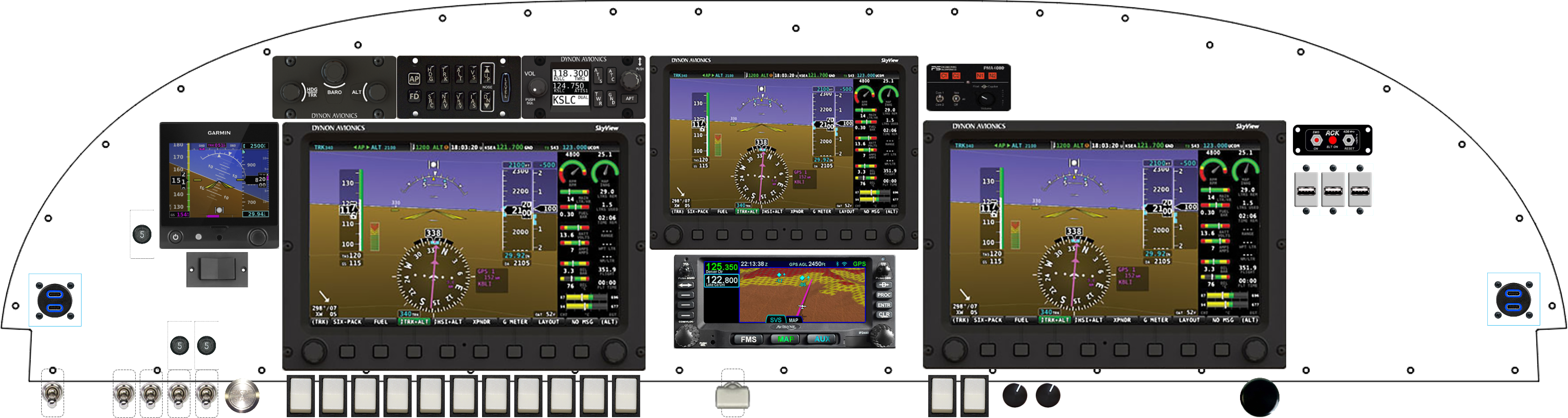

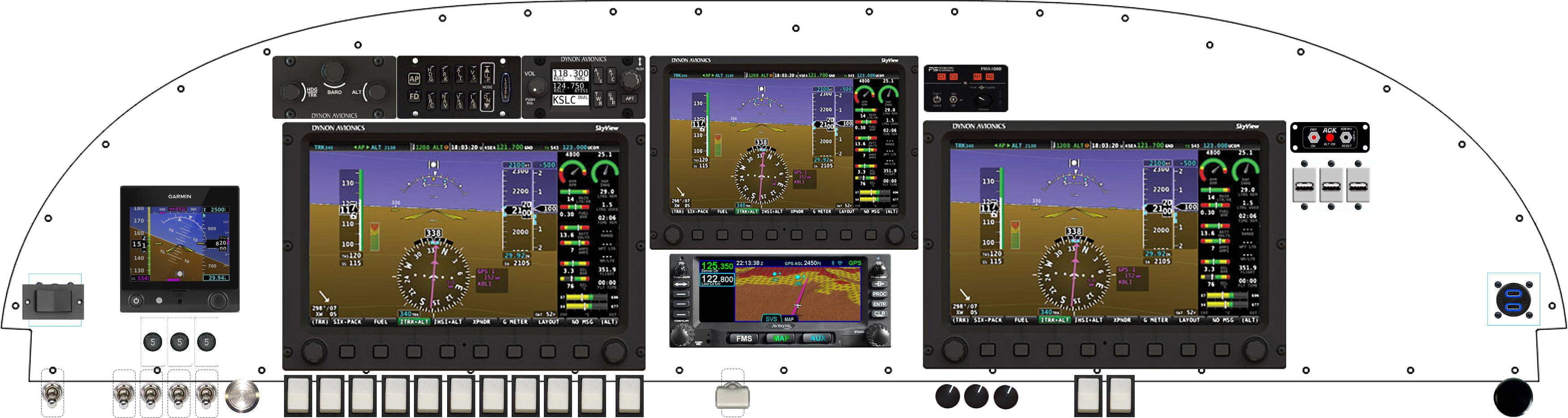

Just playing around with the Garmin stuff on the panel...seem a bit overkill to me for this beast.
Zenith STOL CH750: Modular instrument panel BVD
Hours:  2.00
Jan 30, 2022

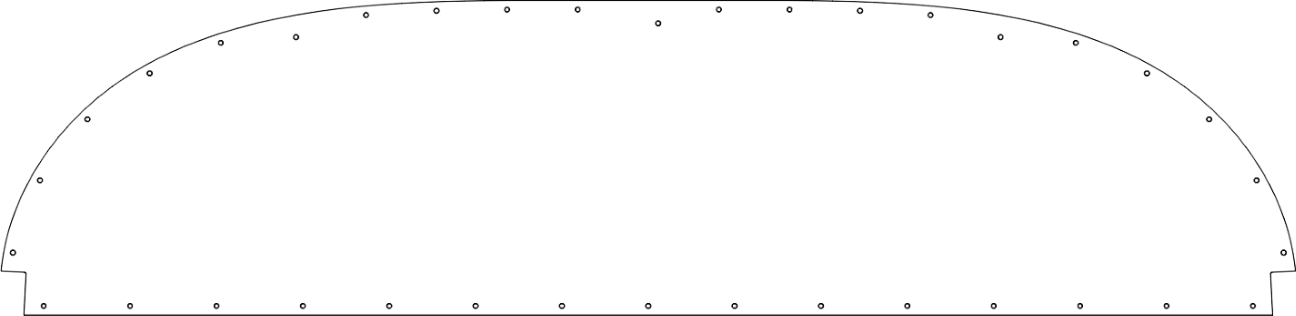

I decided to go the RV route again for my instrument panel, so we put the original panel in the Panel Pro and cut it out to make a flange with nutplate holes. The flange portion of the panel will be permanently mounted on the aircraft, and the main panel simply screws to it. We'll be offering this design to all, so let us know if you want one!
