Mooney M20C M20E M20F instrument panel

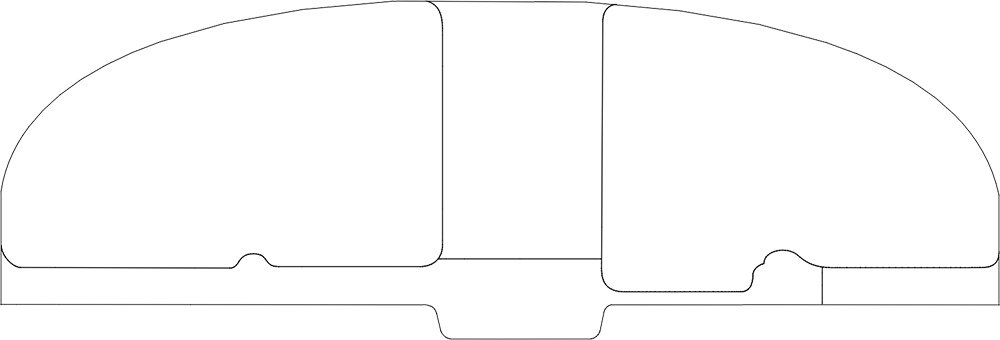

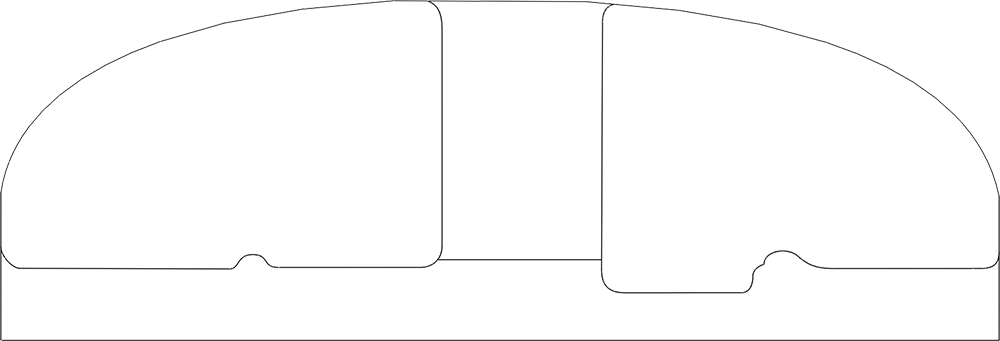

The M20C M20E M20F panel template at the panel's dimensions, 39.94 × 13.6 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
187 panels laid out on these 2 templates
2 templates for the M20C M20E M20F

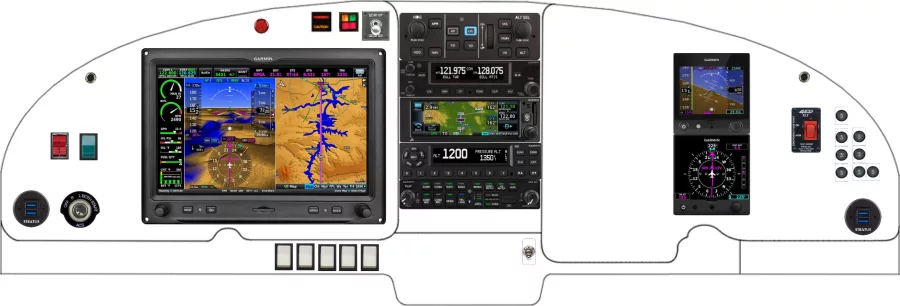

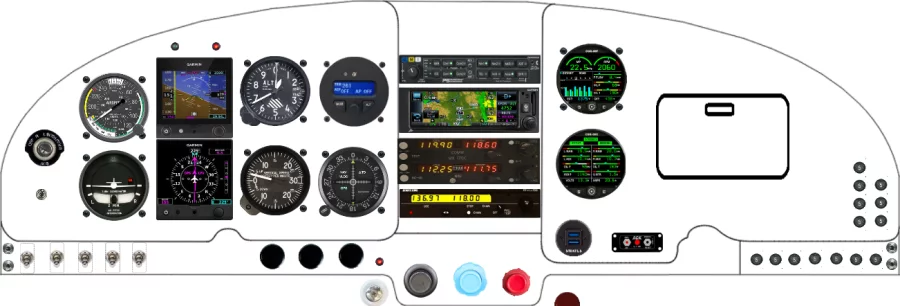

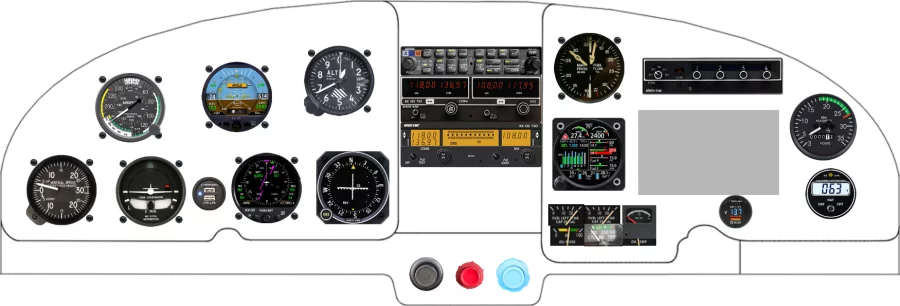

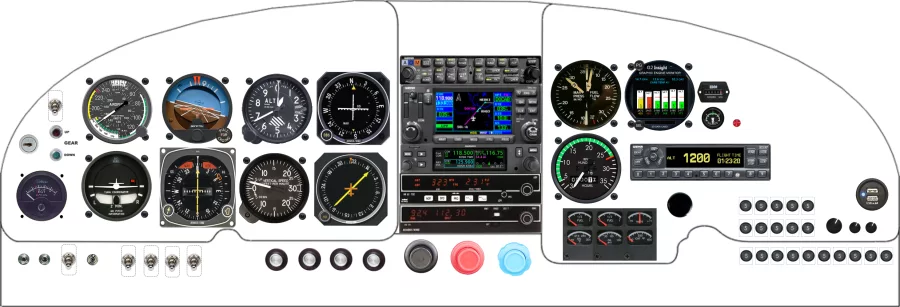

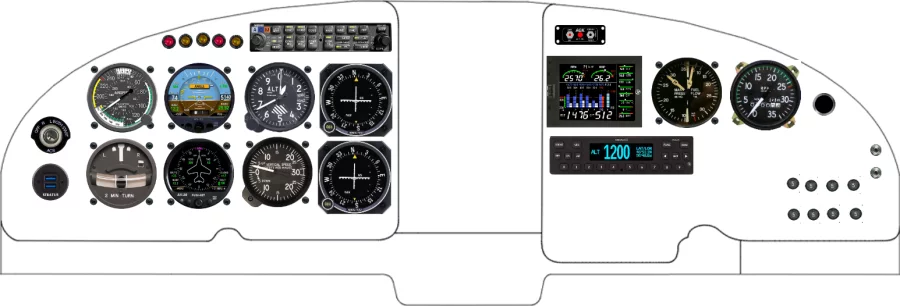

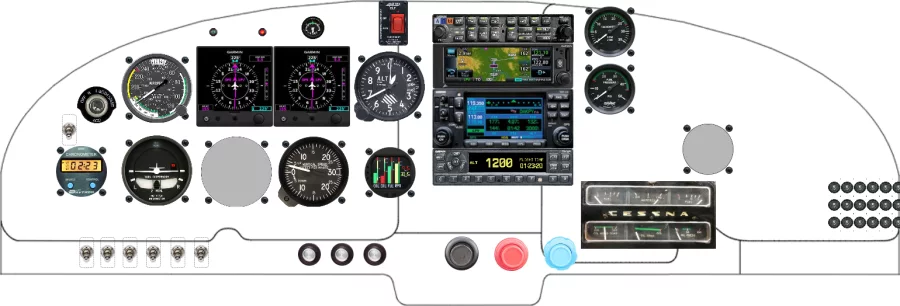

Recent M20C M20E M20F panel designs
Exported by builders from the Panel Designer, newest first.
M20C M20E M20F for sale
Selling an M20C M20E M20F? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an M20C M20E M20F panel
The equipment placed most often across the 187 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 75 | 40% |
| Falcon Gauge Altimeter 3" | 72 | 39% |
| Falcon Gauge Vertical Speed Indicator | 71 | 38% |
| Garmin International, Inc GFC 500 | 66 | 35% |
| Sensa Technologies 7277 | 61 | 33% |
| Garmin International, Inc G5 | 53 | 28% |
| Garmin International, Inc GI 275 HSI | 36 | 19% |
| Garmin International, Inc GI 275 ADI | 36 | 19% |
M20C M20E M20F panels by avionics system
Builders who laid out an M20C M20E M20F panel with each system.
Other Mooney panels
From layout to fabricated panel
Lay out the M20C M20E M20F panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
