Mooney M20R instrument panel

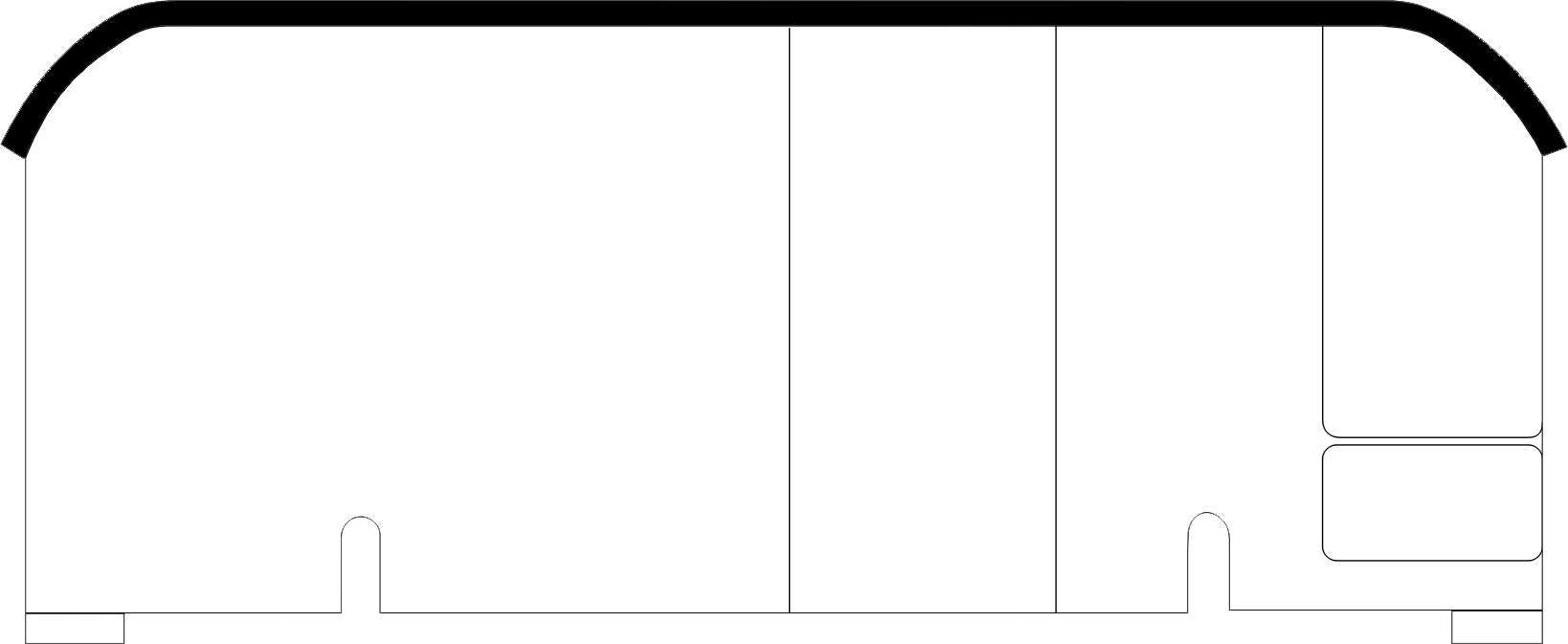

The M20R panel template at the panel's dimensions, 39.25 × 16.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
27 panels laid out on this template

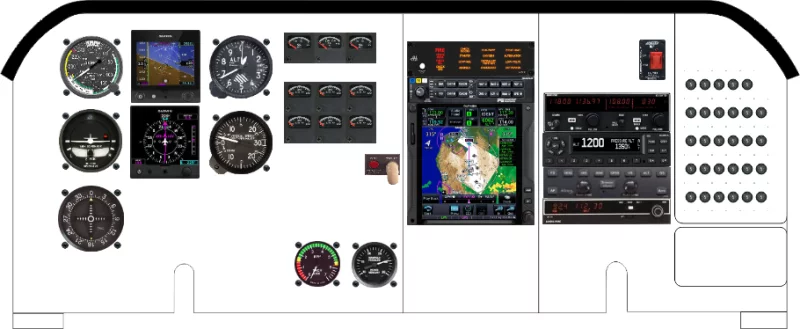

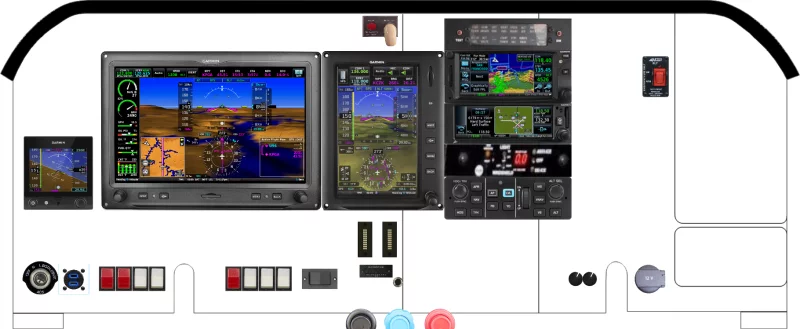

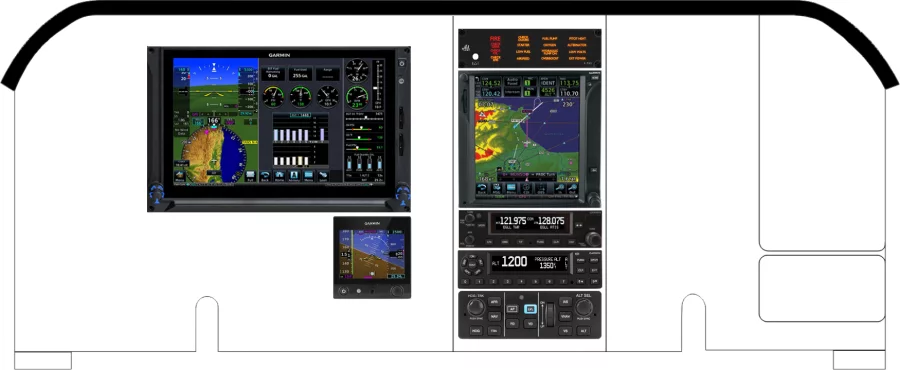

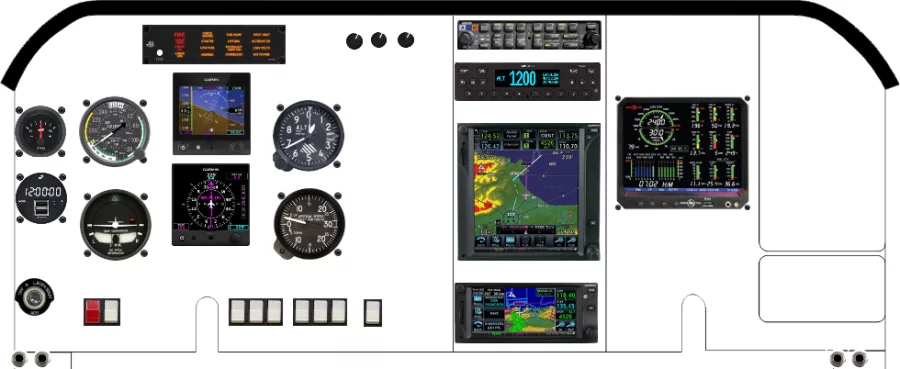

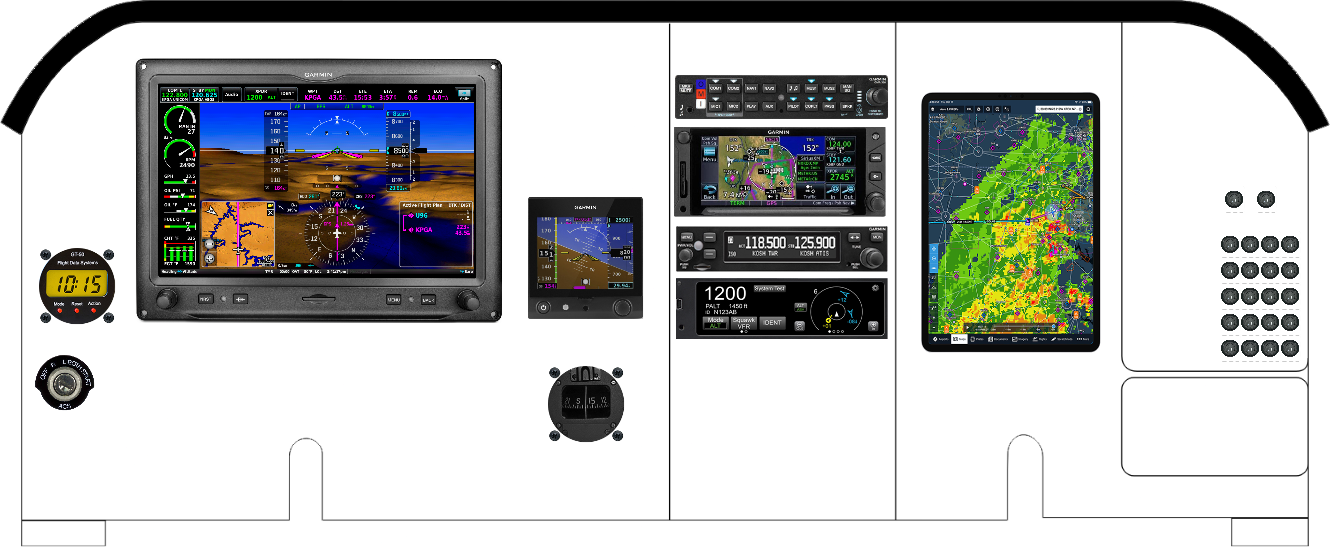

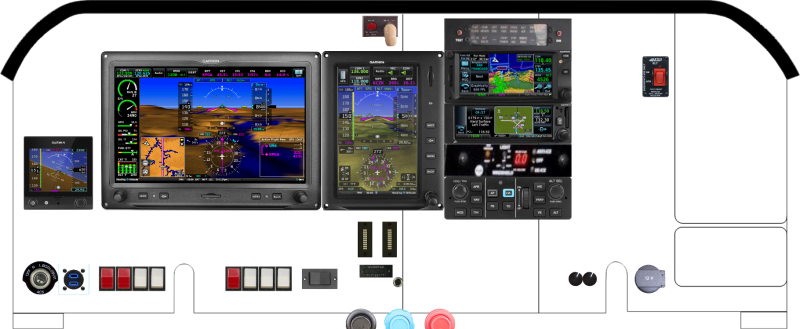

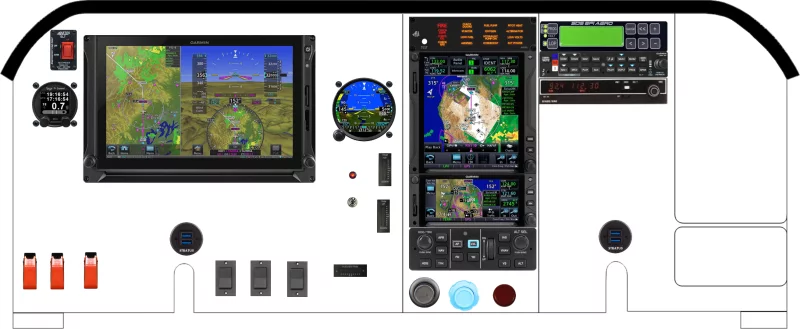

Recent M20R panel designs
Exported by builders from the Panel Designer, newest first.
M20R for sale
Selling an M20R? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an M20R panel
The equipment placed most often across the 27 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 15 | 56% |
| Garmin International, Inc GFC 500 | 15 | 56% |
| Garmin International, Inc G3X Touch | 13 | 48% |
| The Ray Allen Company Trim Indicator | 9 | 33% |
| Aero Safety Systems AH500SD | 8 | 30% |
| Garmin International, Inc GTN 650 | 8 | 30% |
| Garmin International, Inc GNC 355 | 8 | 30% |
| The Ray Allen Company RP3 | 8 | 30% |
Other Mooney panels
From layout to fabricated panel
Lay out the M20R panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
