Mooney M20k instrument panel

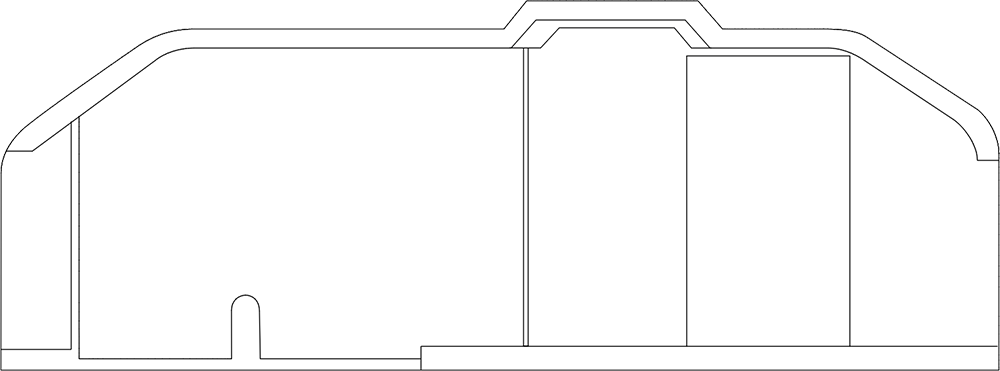

The M20k panel template at the panel's dimensions, 39.5 × 19.75 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
46 panels laid out on this template

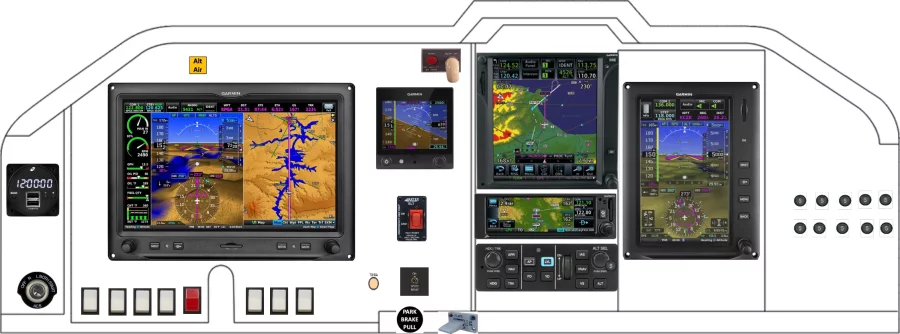

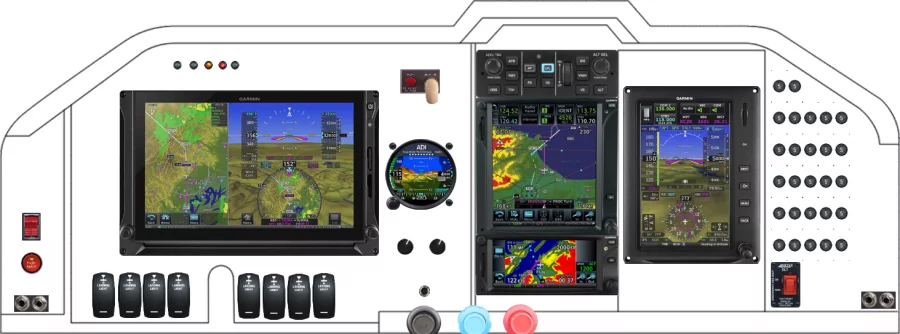

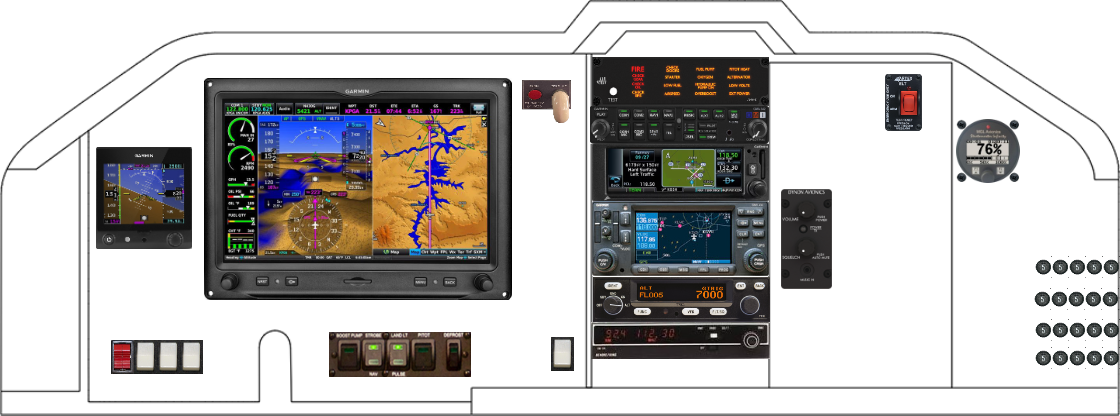

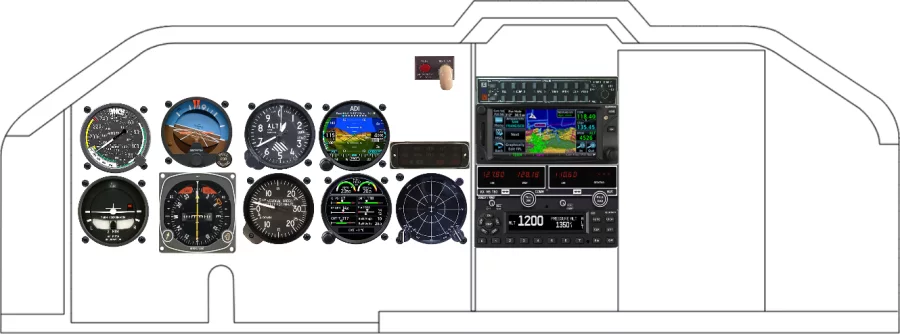

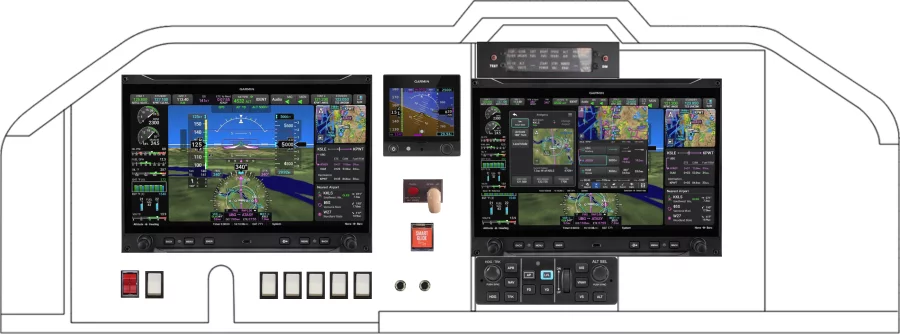

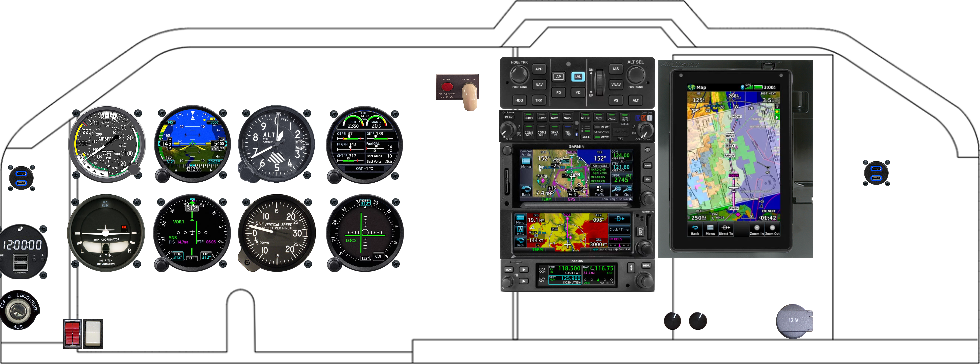

Recent M20k panel designs
Exported by builders from the Panel Designer, newest first.
M20k for sale
Selling an M20k? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an M20k panel
The equipment placed most often across the 46 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 24 | 52% |
| Garmin International, Inc G3X Touch | 22 | 48% |
| Garmin International, Inc GTX 345 | 20 | 43% |
| Mid Continent MD93 Digital Clock | 18 | 39% |
| Garmin International, Inc G5 | 17 | 37% |
| Garmin International, Inc GTN 650Xi | 16 | 35% |
| Garmin International, Inc GI 275 ADI | 15 | 33% |
| Garmin International, Inc GI 275 EIS | 14 | 30% |
Other Mooney panels
From layout to fabricated panel
Lay out the M20k panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
