Mooney M20J instrument panel

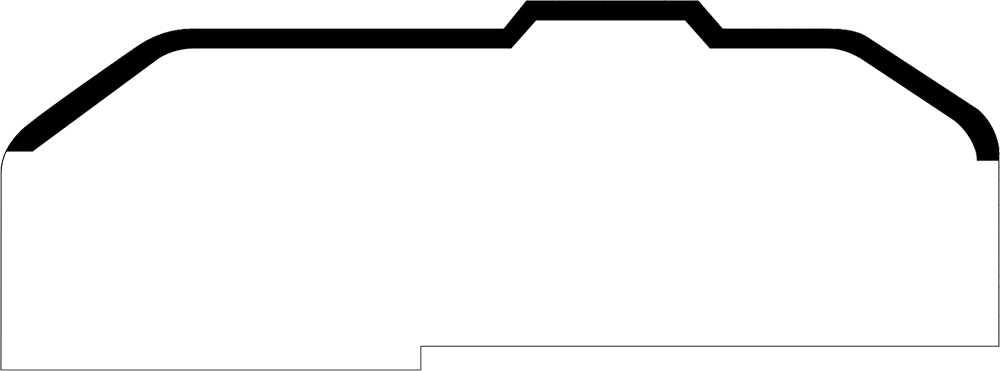

The M20J panel template at the panel's dimensions, 37.75 × 13.95 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
165 panels laid out on these 2 templates
2 templates for the M20J

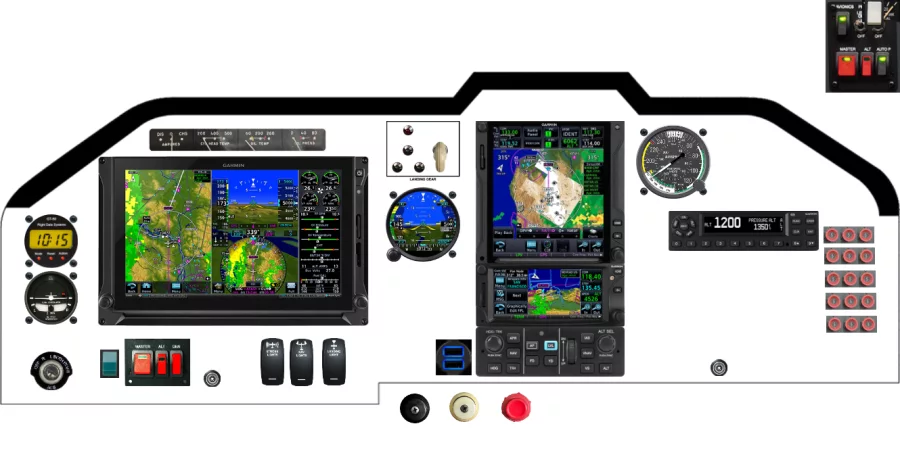

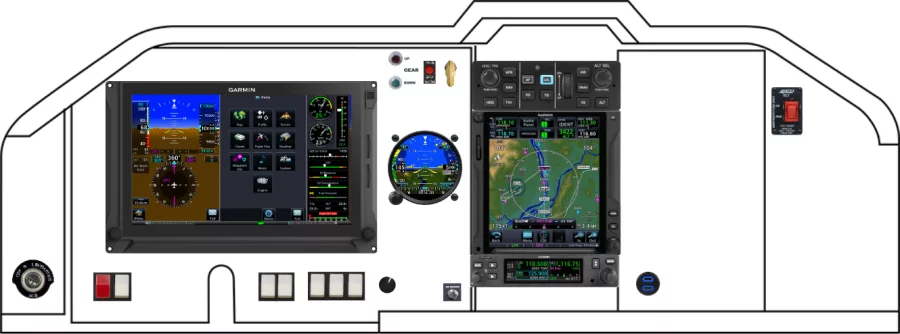

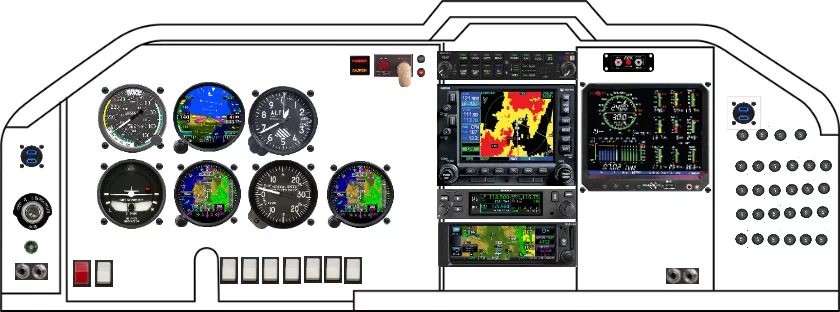

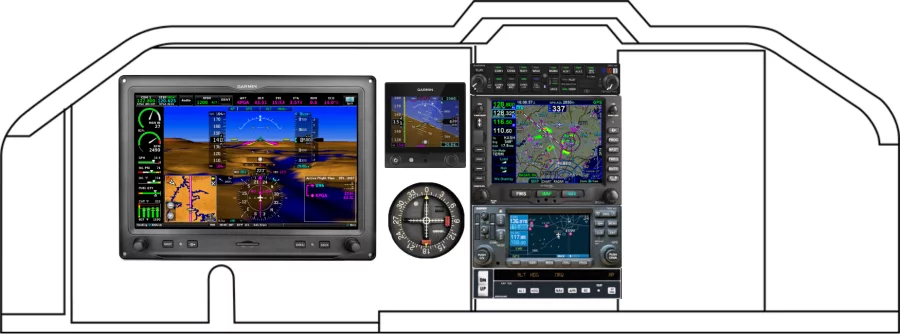

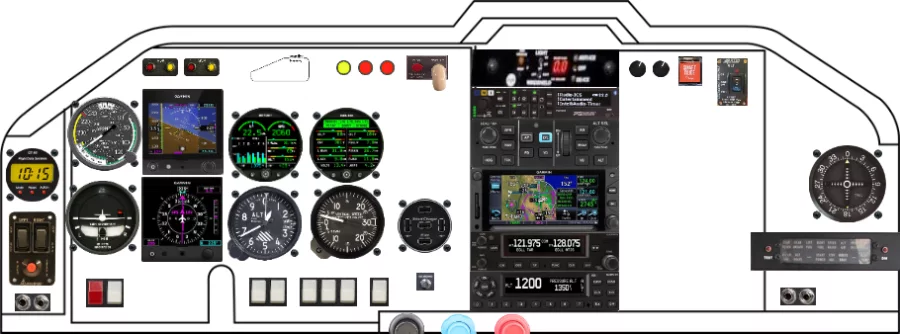

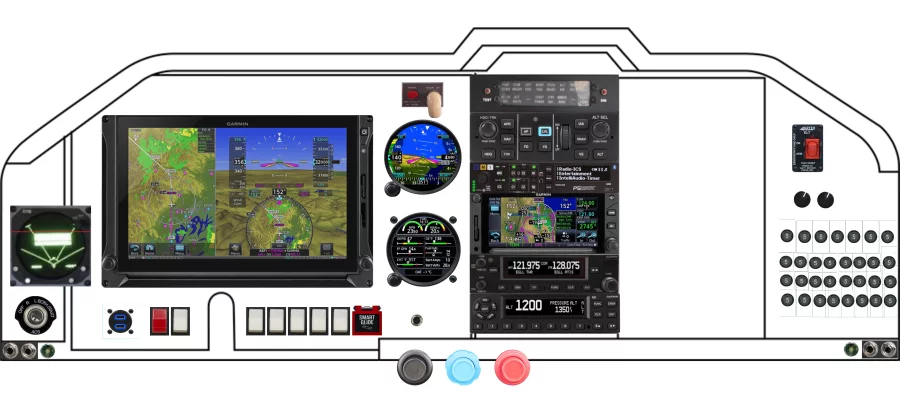

Recent M20J panel designs
Exported by builders from the Panel Designer, newest first.
M20J for sale
Selling an M20J? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in an M20J panel
The equipment placed most often across the 165 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 69 | 42% |
| Sensa Technologies 7277 | 69 | 42% |
| Garmin International, Inc G5 | 63 | 38% |
| Falcon Gauge Airspeed Indicator 3" | 48 | 29% |
| Garmin International, Inc G3X Touch | 47 | 28% |
| Falcon Gauge Vertical Speed Indicator | 47 | 28% |
| Falcon Gauge Altimeter 3" | 46 | 28% |
| Garmin International, Inc GTN 650Xi | 33 | 20% |
M20J panels by avionics system
Builders who laid out an M20J panel with each system.
Other Mooney panels
From layout to fabricated panel
Lay out the M20J panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
