Mooney M20J
M20J panel with Garmin G3X Touch
36 builders have laid out an M20J panel with the Garmin G3X Touch in the Panel Designer, 40% of the M20J builders here. Their newest designs, what they put beside it, and the M20J template to start your own, to scale.
47 M20J designs with the Garmin G3X Touch

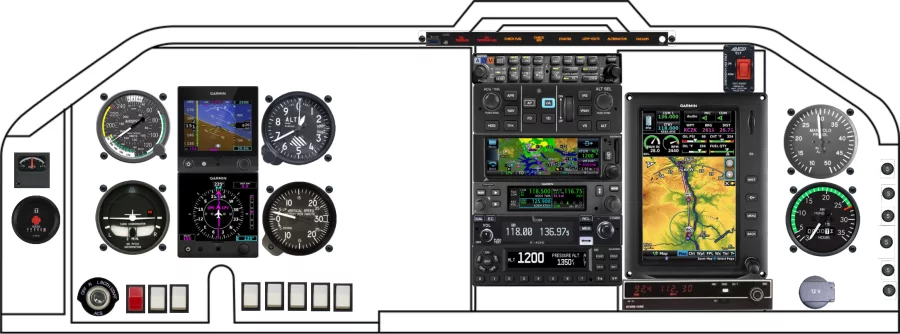

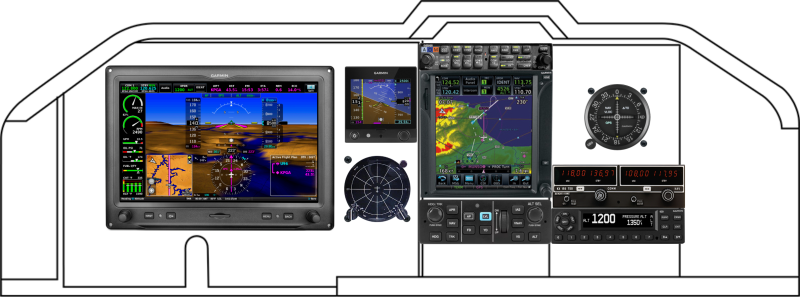

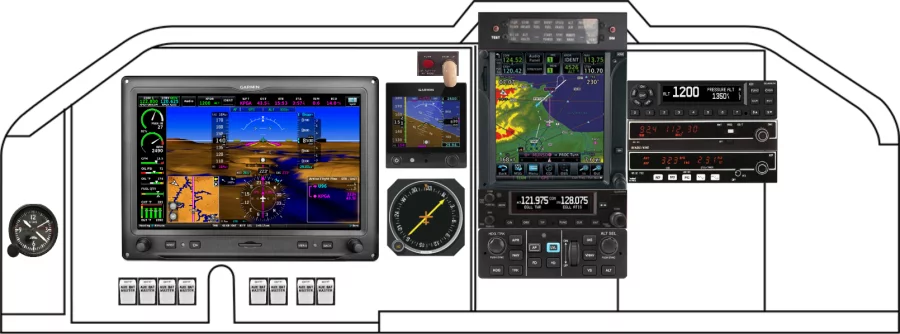

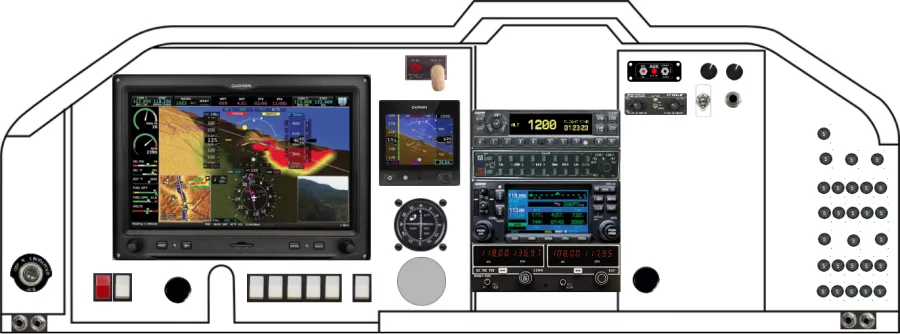

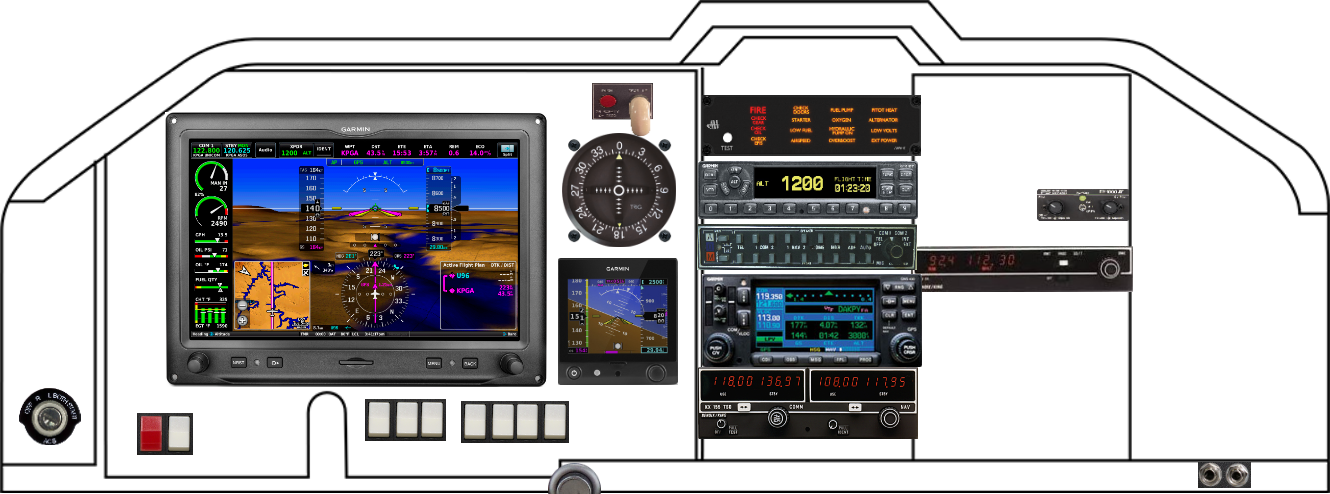

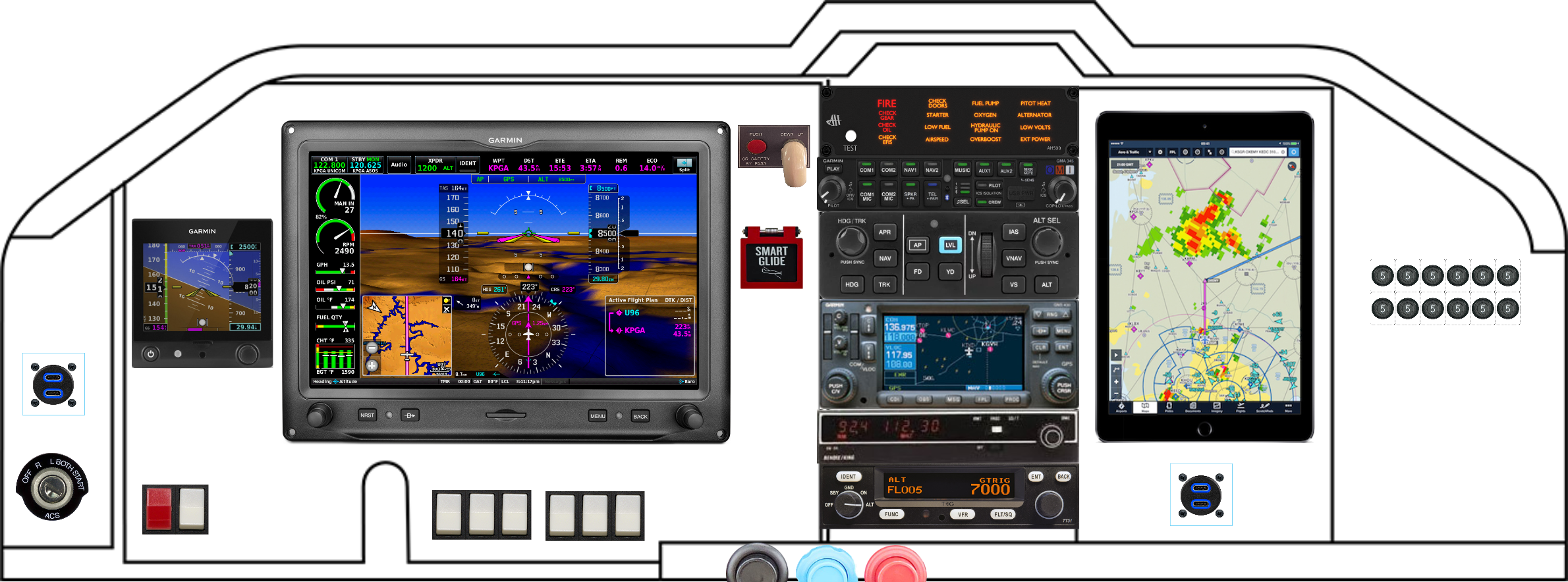

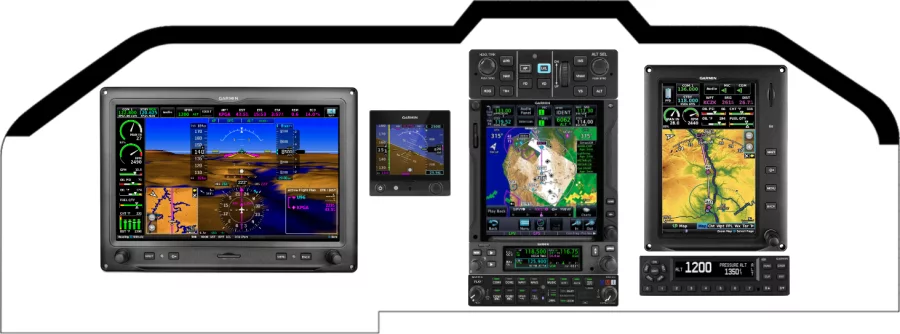

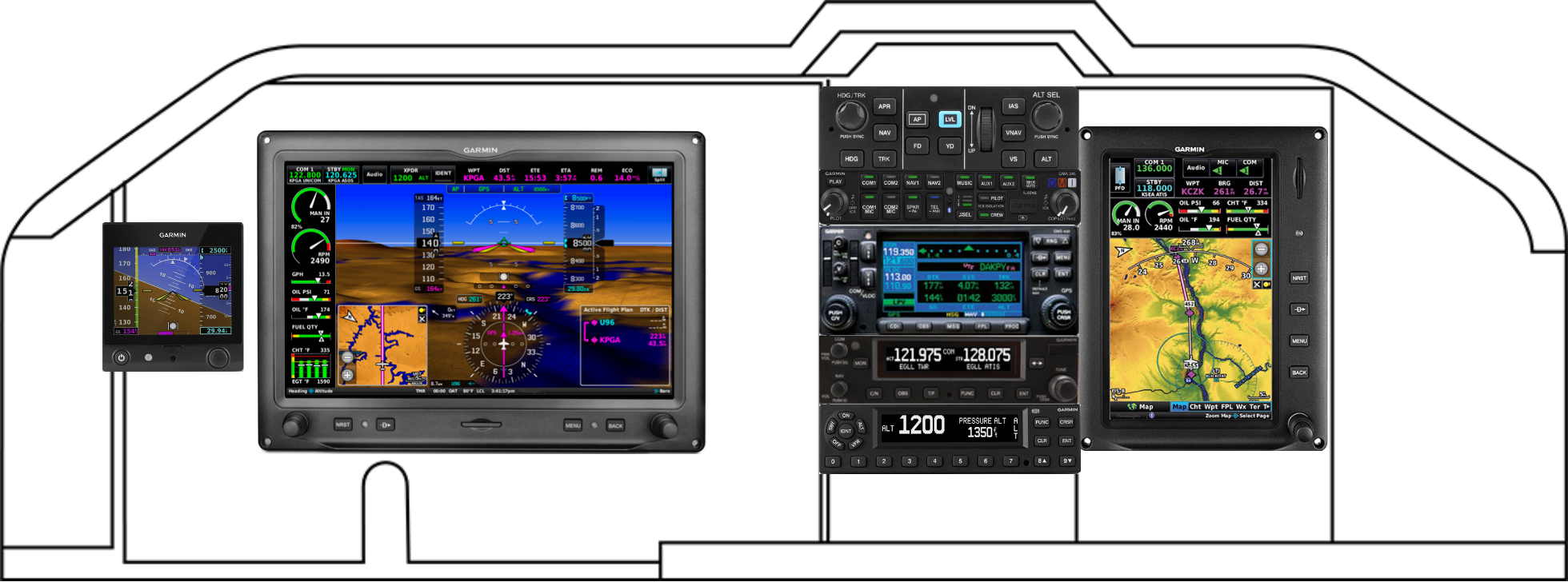

M20J panels with the Garmin G3X Touch
Exported by builders from the Panel Designer, newest first.
What builders put beside the Garmin G3X Touch
The equipment placed most often in the 47 M20J designs with the Garmin G3X Touch. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin G5 | 37 | 79% |
| Garmin GFC 500 | 28 | 60% |
| Aircraft Spruce & Specialty Keyed Ignition Switch | 28 | 60% |
| Honeywell Sensing Rocker Switch | 24 | 51% |
| Sensa Technologies 7277 | 20 | 43% |
| ACR Electronics ARTEX ELT-200 Remote Switch | 16 | 34% |
| Garmin GTN 650Xi | 14 | 30% |
| Garmin GTX 345 | 13 | 28% |
| Garmin GNC 255 | 12 | 26% |
| Garmin GMC 507 | 11 | 23% |
The Garmin G3X Touch in other aircraft
- Van's Aircraft RV-7/9 237
- Van's Aircraft RV-8 184
- Van's Aircraft RV-10 179
- Van's Aircraft RV-14 179
- Van's Aircraft RV-6 90
- RANS Aircraft S-20 / S-21 85
- Piper Aircraft PA-28 85
- Kitfox Aircraft Model 5/7 77
- Cessna 180 / 185 72
- Cessna 182P, Q, R, R182, TR182 70
- Cessna 172 55
- Sling Aircraft Sling TSi 52
From layout to fabricated panel
Lay out the M20J panel with the Garmin G3X Touch in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
