Sonex Aircraft OneX instrument panel
The OneX panel template at the panel's dimensions, 29 × 9.16 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
17 panels laid out on this template

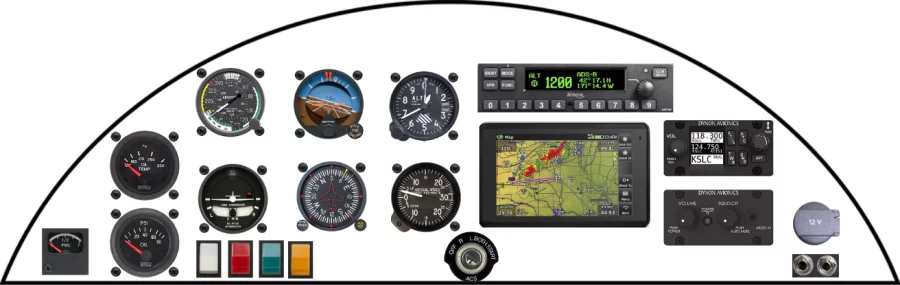

Recent OneX panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an OneX panel
The equipment placed most often across the 17 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Trig Avionics TT21/TT22 Transponder | 5 | 29% |
| Sensa Technologies 7277 | 4 | 24% |
| MGL Avionics (Rainbow Aircraft, Inc) VHF Controller | 3 | 18% |
| Guardian Avionics CO Guardian 353 | 3 | 18% |
| MGL Avionics (Rainbow Aircraft, Inc) XTreme EFIS | 3 | 18% |
| Falcon Gauge Airspeed Indicator 2" | 3 | 18% |
| Garmin International, Inc G3X Touch | 2 | 12% |
| Garmin International, Inc G5 | 2 | 12% |
Other Sonex Aircraft panels
From layout to fabricated panel
Lay out the OneX panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
