Sonex Aircraft Sonex B instrument panel
The Sonex B panel template at the panel's dimensions, 37.88 × 7.5 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
118 panels laid out on this template

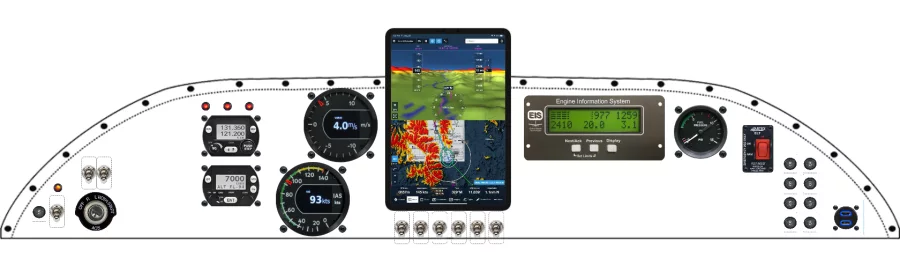

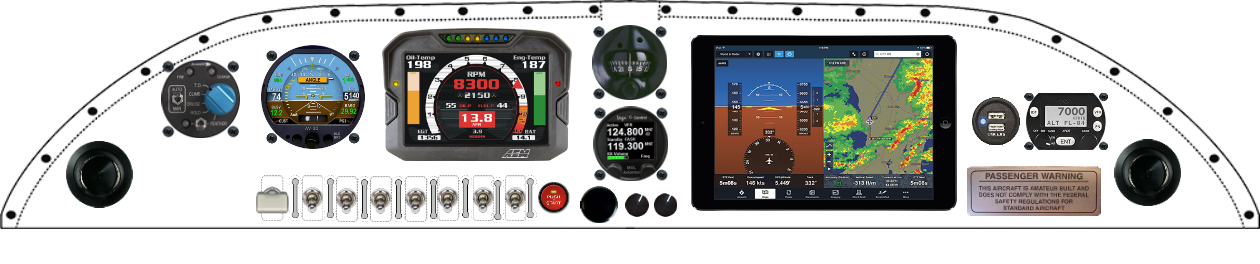

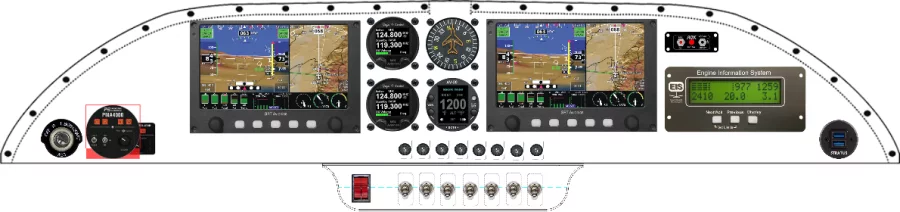

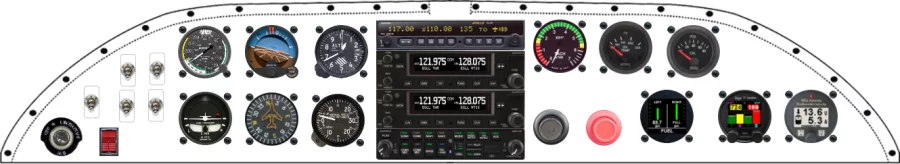

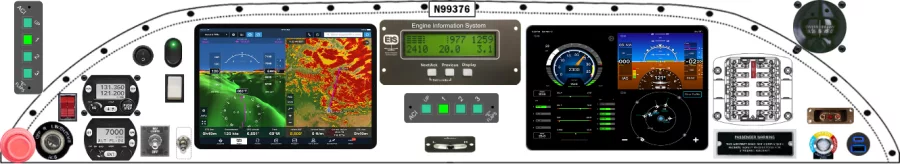

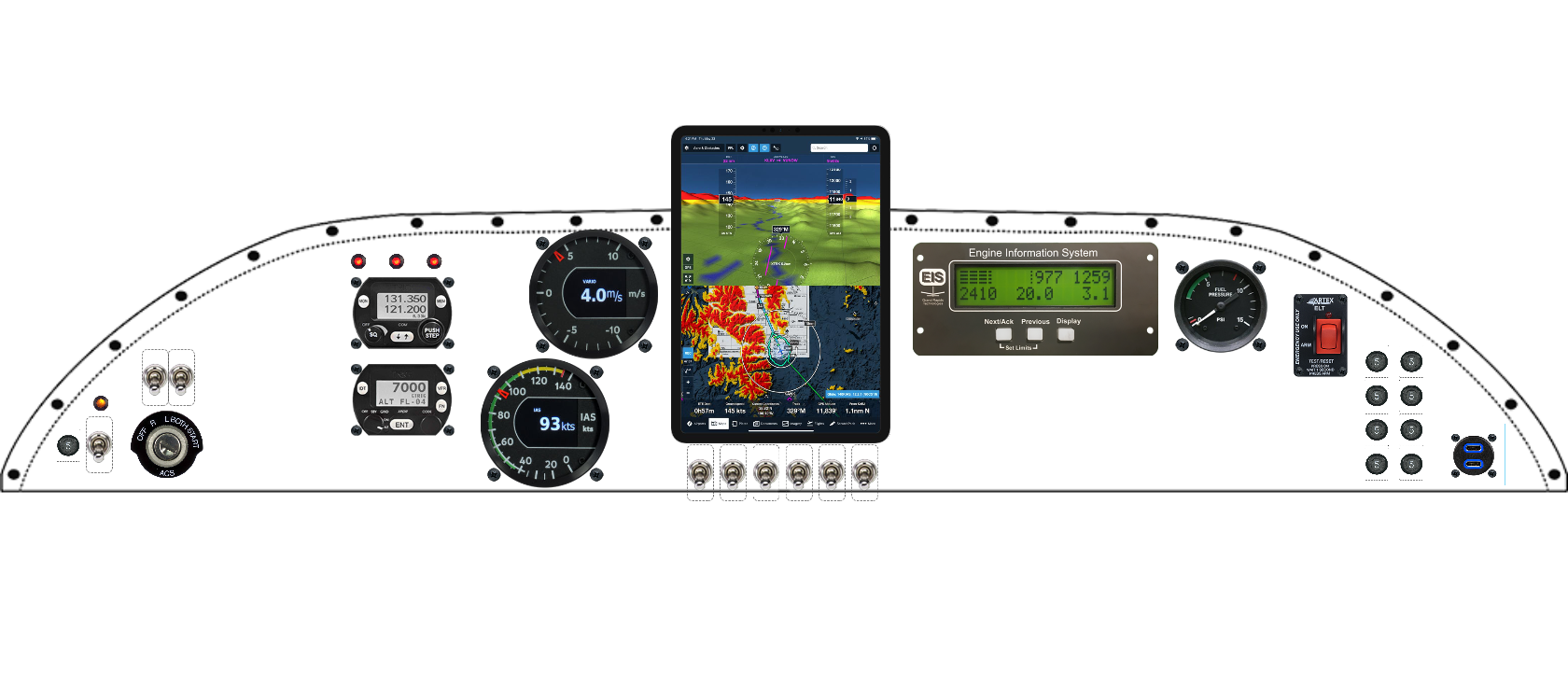

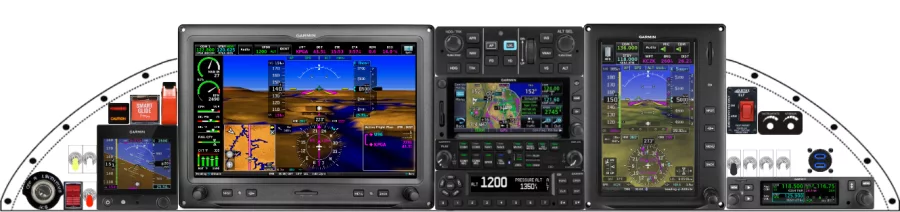

Recent Sonex B panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Sonex B panel
The equipment placed most often across the 118 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| ACK Technologies ELT | 22 | 19% |
| Sensa Technologies 7277 | 22 | 19% |
| Garmin International, Inc GMA 245 | 22 | 19% |
| Garmin International, Inc G5 | 21 | 18% |
| Garmin International, Inc G3X Touch | 19 | 16% |
| Dynon Avionics Dynon SkyView HDX 8" | 18 | 15% |
| Trig Avionics TY91/TY92 VHF Comm | 16 | 14% |
| Trig Avionics TT21/TT22 Transponder | 15 | 13% |
Other Sonex Aircraft panels
From layout to fabricated panel
Lay out the Sonex B panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
