Sonex Aircraft SubSonex instrument panel

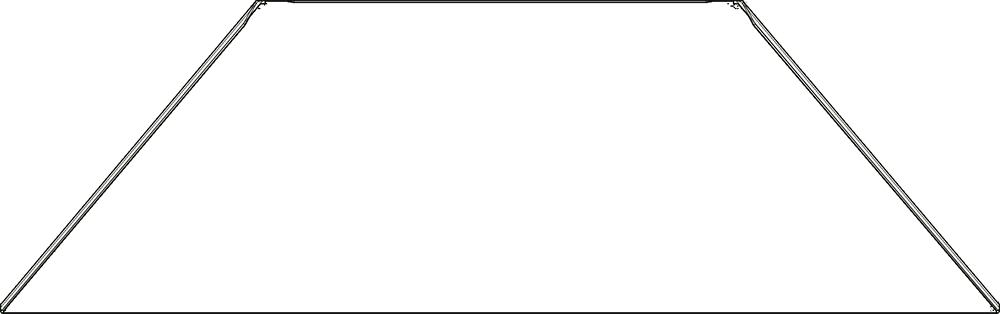

The SubSonex panel template at the panel's dimensions, 20.71 × 6.45 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
18 panels laid out on this template

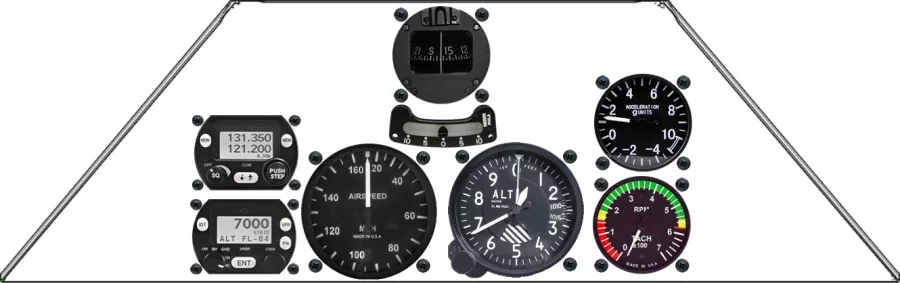

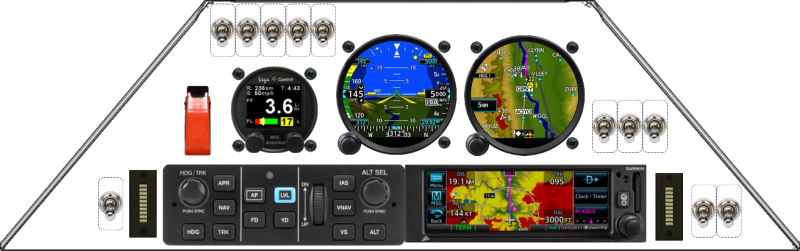

Recent SubSonex panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a SubSonex panel
The equipment placed most often across the 18 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GNX 375 | 4 | 22% |
| Garmin International, Inc GI 275 MFD | 4 | 22% |
| Garmin International, Inc GI 275 ADI | 4 | 22% |
| Garmin International, Inc GI 275 EIS | 3 | 17% |
| Garmin International, Inc GTN 650Xi | 3 | 17% |
| Garmin International, Inc GMC 507 | 3 | 17% |
| The Ray Allen Company Trim Indicator | 3 | 17% |
| Garmin International, Inc G3X Touch | 2 | 11% |
Other Sonex Aircraft panels
From layout to fabricated panel
Lay out the SubSonex panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
