Sonex Aircraft Sonex instrument panel

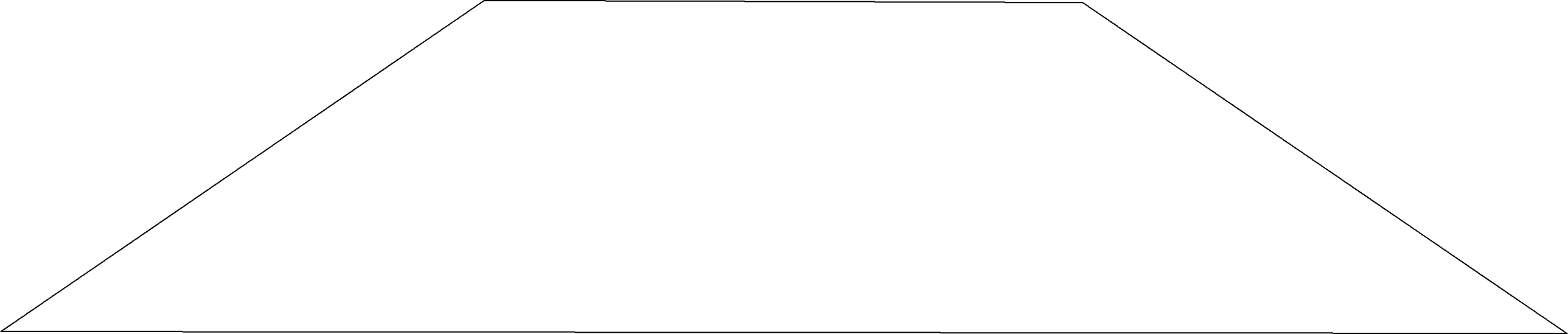

The Sonex panel template at the panel's dimensions, 35.79 × 7.62 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
148 panels laid out on this template

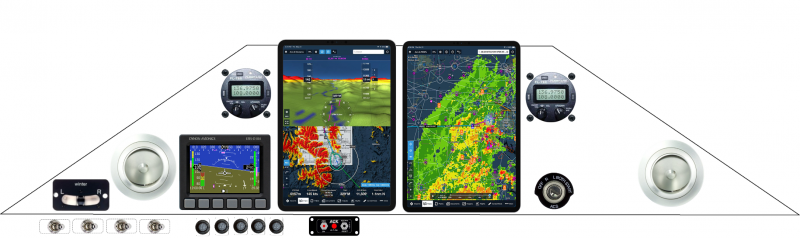

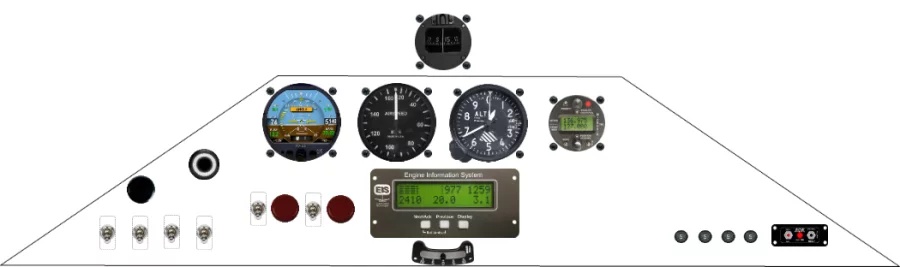

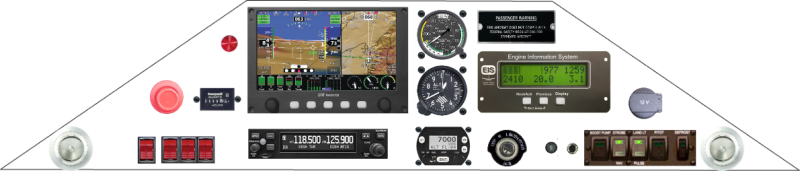

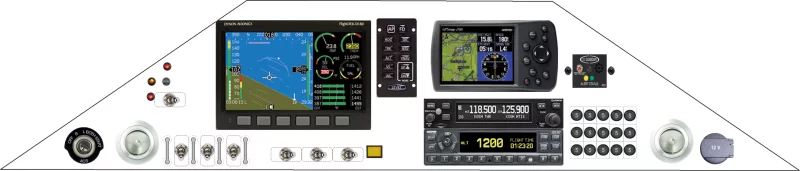

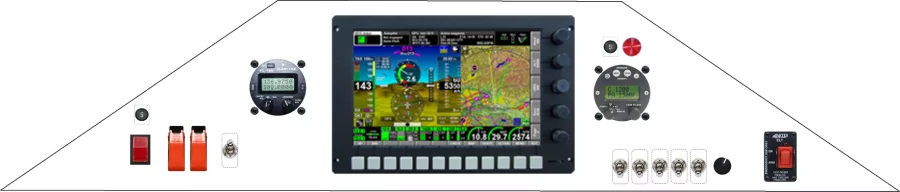

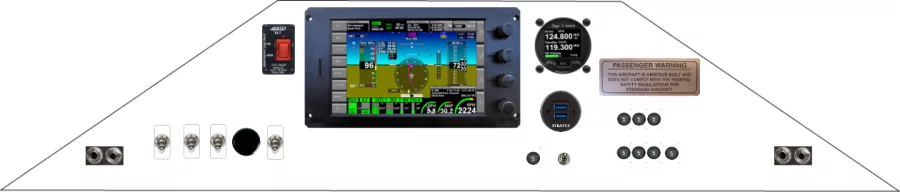

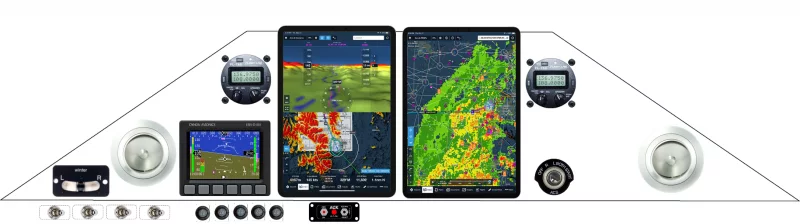

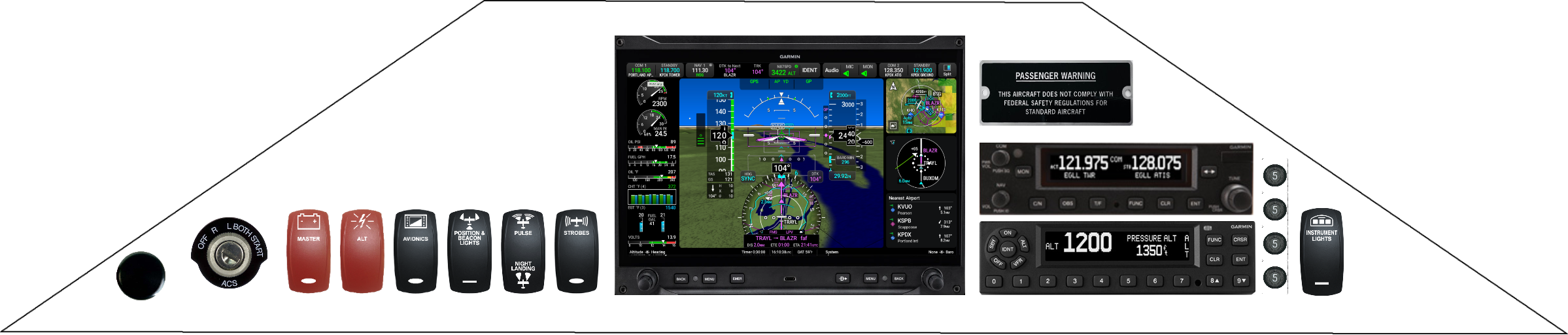

Recent Sonex panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Sonex panel
The equipment placed most often across the 148 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 33 | 22% |
| MGL Avionics (Rainbow Aircraft, Inc) VHF Controller | 24 | 16% |
| GRT Avionics EIS | 21 | 14% |
| ACK Technologies ELT | 20 | 14% |
| Falcon Gauge Airspeed Indicator 2" | 20 | 14% |
| Garmin International, Inc GTX 327 | 18 | 12% |
| GRT Avionics Sport EX EFIS | 17 | 11% |
| Garmin International, Inc G5 | 15 | 10% |
Other Sonex Aircraft panels
From layout to fabricated panel
Lay out the Sonex panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
