Piper Aircraft PA-12 instrument panel

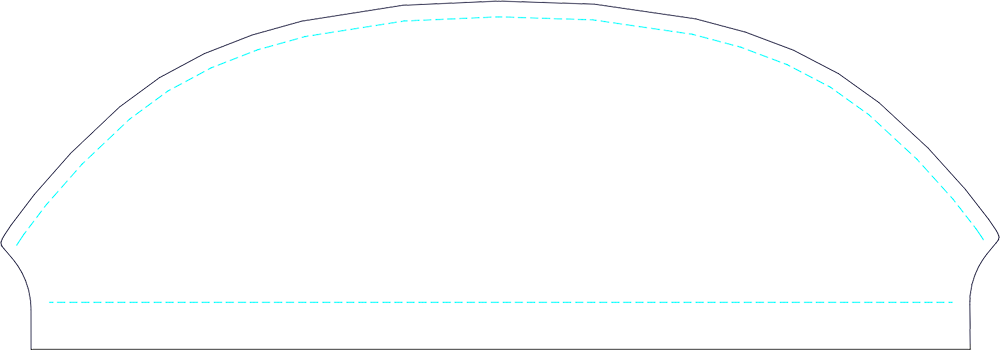

The PA-12 panel template at the panel's dimensions, 31.47 × 11 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
40 panels laid out on this template
Also written PA12 or PA 12.

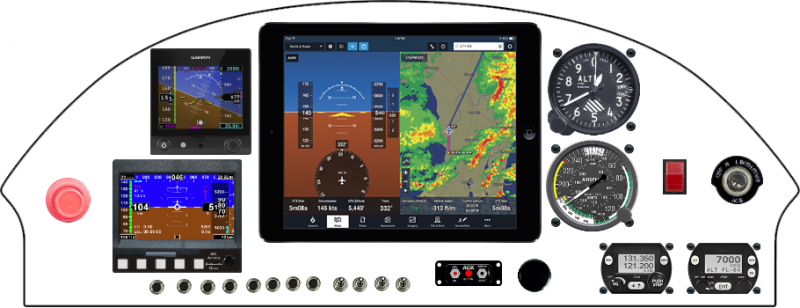

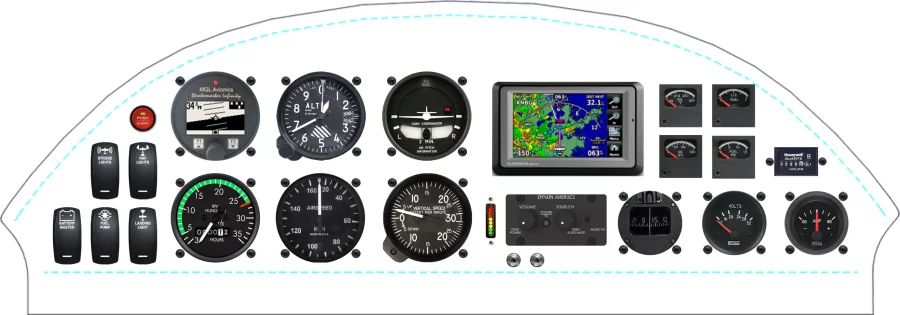

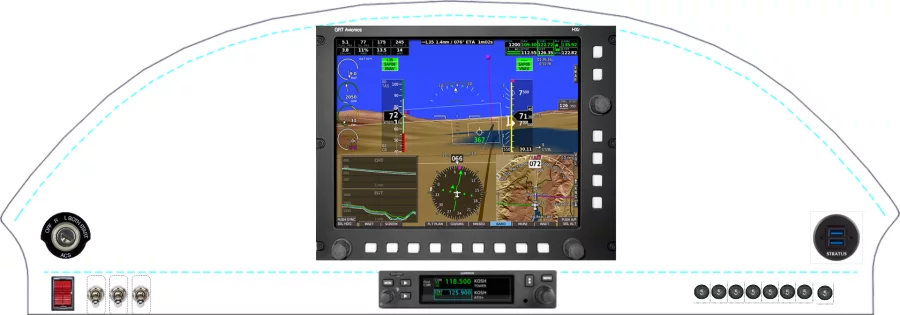

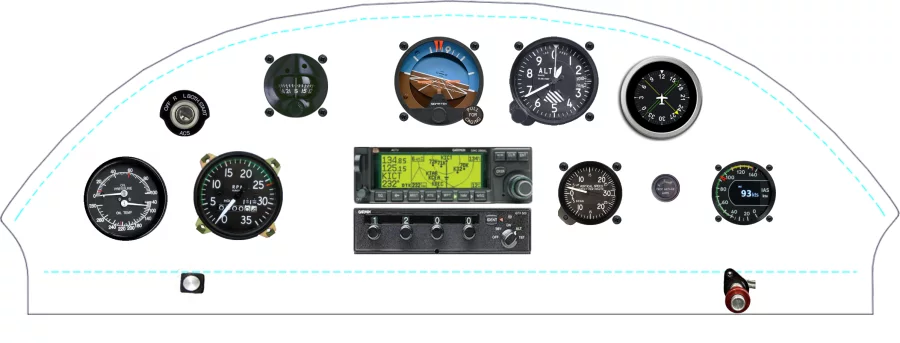

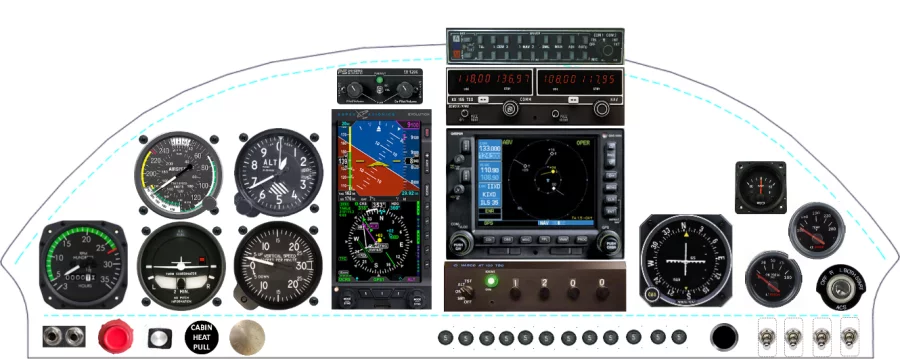

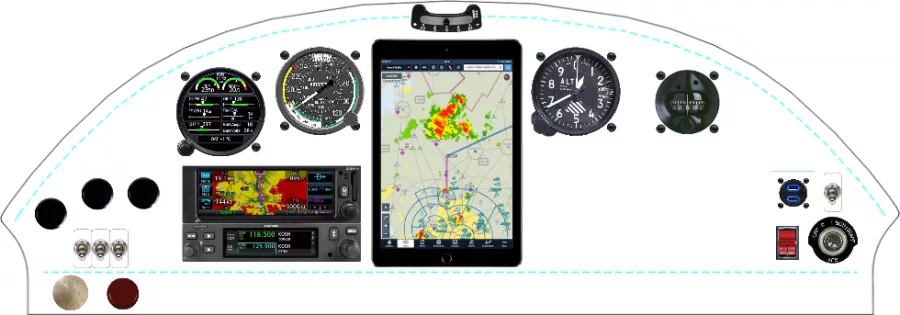

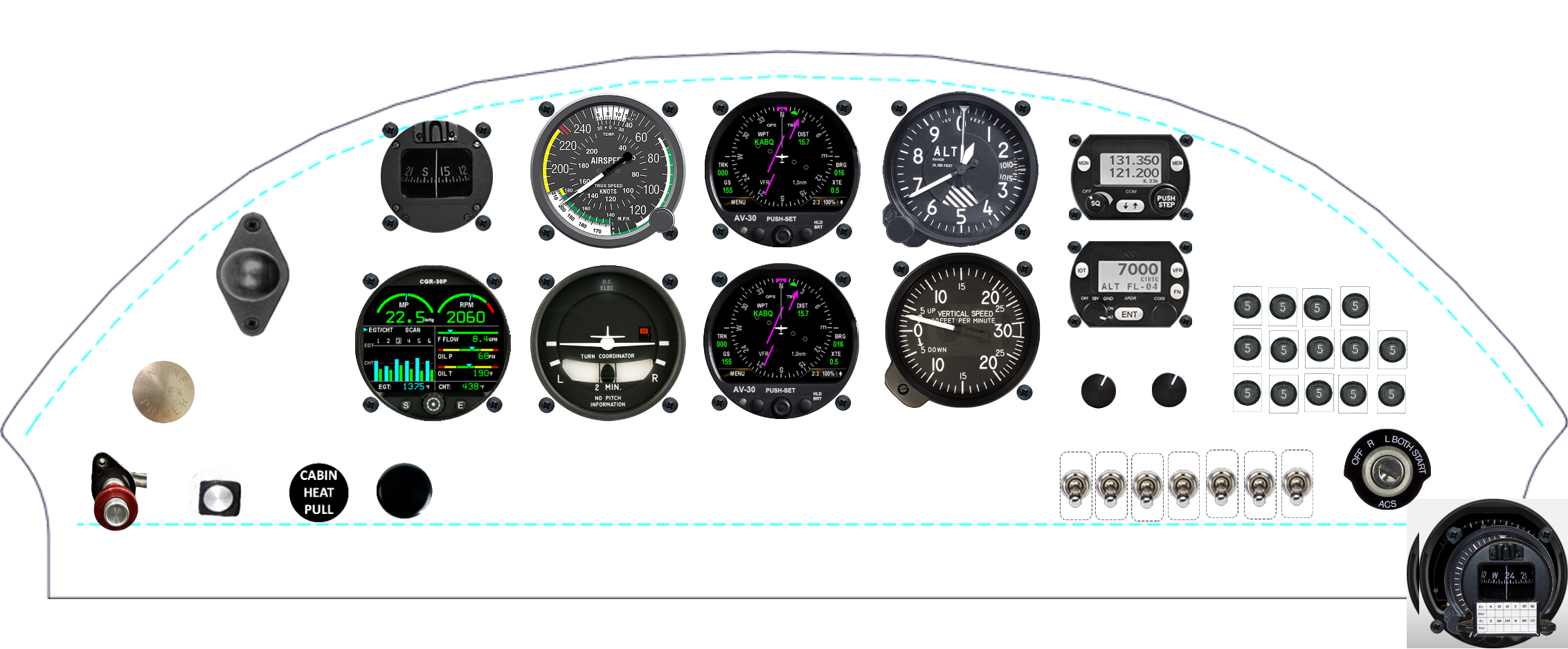

Recent PA-12 panel designs
Exported by builders from the Panel Designer, newest first.
PA-12 for sale
Selling a PA-12? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a PA-12 panel
The equipment placed most often across the 40 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 15 | 38% |
| Falcon Gauge Airspeed Indicator 3" | 10 | 25% |
| uAvionix Corporation AV-30 PFD | 7 | 18% |
| Falcon Gauge Vertical Speed Indicator | 7 | 18% |
| Sensa Technologies 7277 | 7 | 18% |
| ForeFlight iPad Mini 6 | 7 | 18% |
| Electronics International Inc CGR-30P Engine Analyzer | 6 | 15% |
| Garmin International, Inc G5 | 5 | 13% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-12 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
