Piper Aircraft PA-17 instrument panel

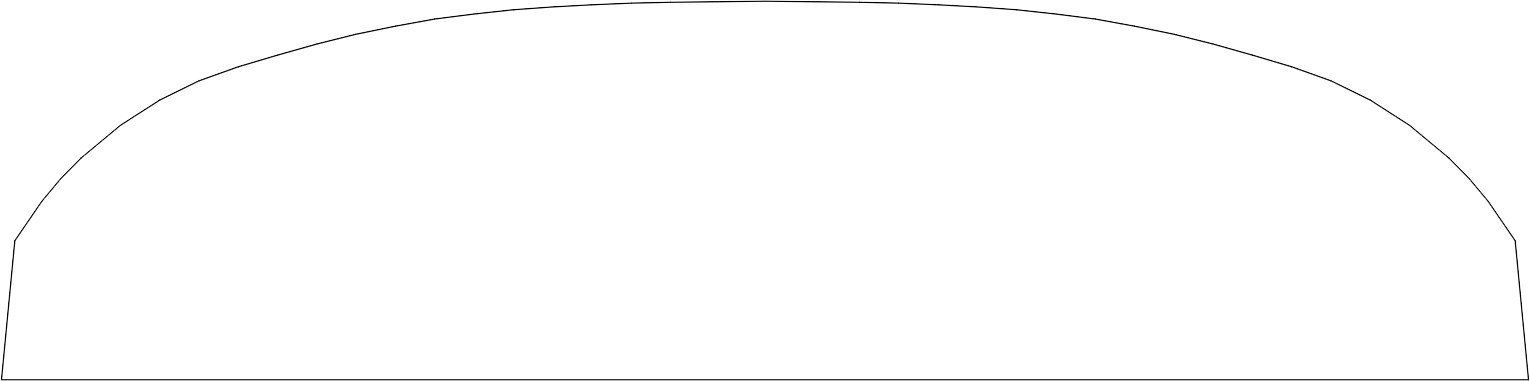

The PA-17 panel template at the panel's dimensions, 38.75 × 9.44 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
28 panels laid out on this template
Also written PA17 or PA 17.

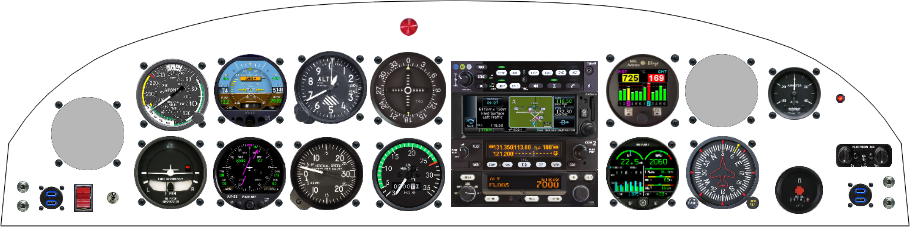

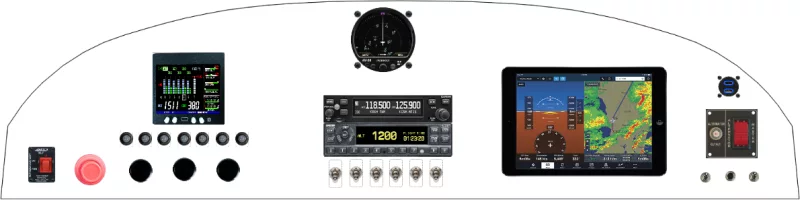

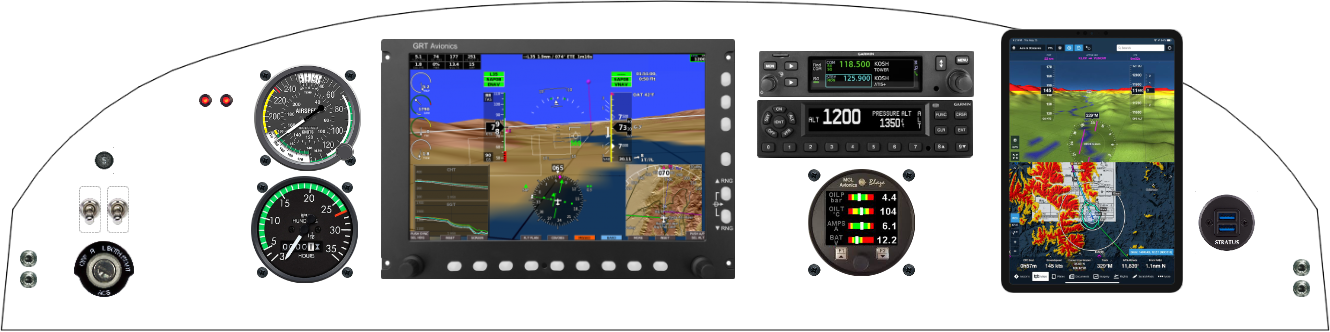

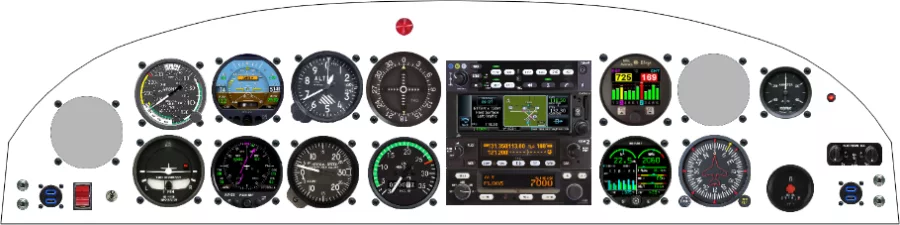

Recent PA-17 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-17 panel
The equipment placed most often across the 28 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 19 | 68% |
| Garmin International, Inc GTX 345 | 18 | 64% |
| Falcon Gauge Altimeter 3" | 17 | 61% |
| Sensa Technologies 7277 | 13 | 46% |
| MGL Avionics (Rainbow Aircraft, Inc) TP-4 | 11 | 39% |
| Falcon Gauge Vertical Speed Indicator | 10 | 36% |
| Garmin International, Inc GTR 200 | 9 | 32% |
| uAvionix Corporation AV-30 PFD | 8 | 29% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-17 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
